Valve Body: Reassembly

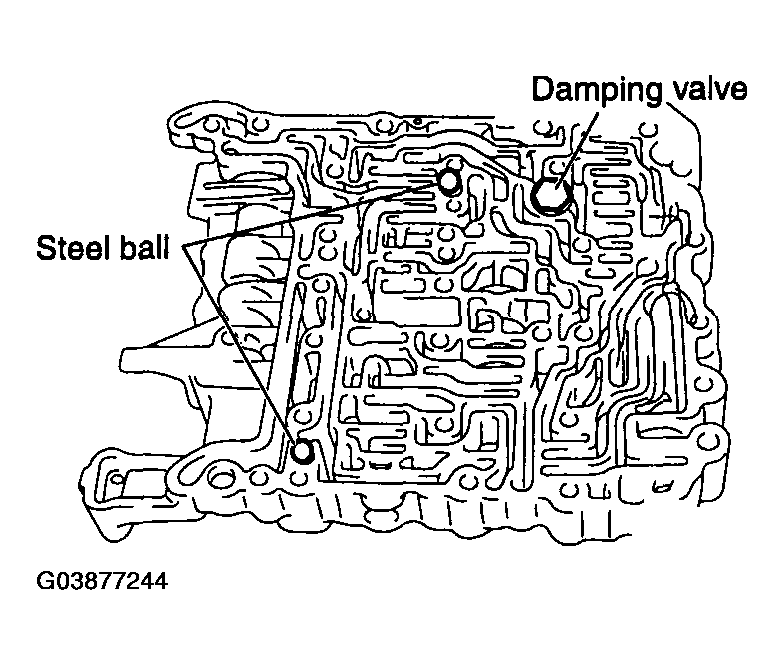

Install the spring/steel ball/damping valve/damping valve spring.

Fig 1: Installing Spring/Steel Ball/Damping Valve/Damping Valve Spring
Courtesy of KIA MOTORS AMERICA, INC.

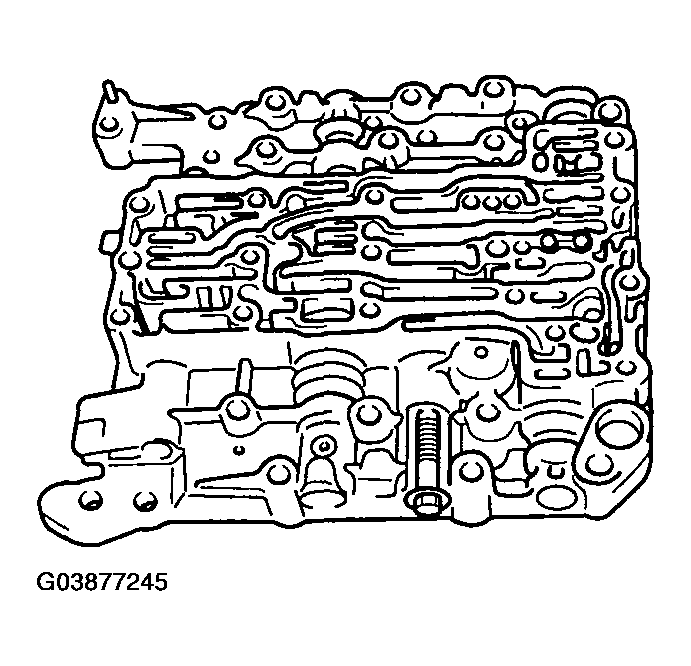

Install the spring/steel ball.

Fig 2: Installing Spring/Steel Ball
Courtesy of KIA MOTORS AMERICA, INC.

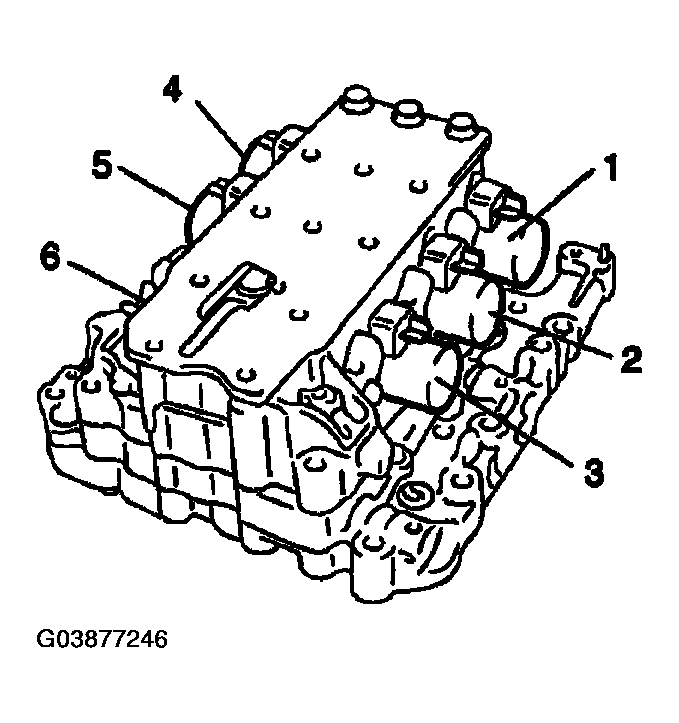

Install each solenoid valve.

Apply ATF or white vaseline on the O-ring and assemble it caring not to damage it.

Remove the marking made in disassembly and install them.

ITEM NAME SPECIFICATION

No.	Name
1	Underdrive solenoid valve
2	Second solenoid valve
3	Damper clutch control solenoid valve
4	Overdrive solenoid valve
5	Low and reverse solenoid valve
6	Reduction solenoid valve (5 A/T)

Fig 3: Applying ATF Or White Vaseline On O-Ring And Assemble
