Symptom Diagnosis: Notes

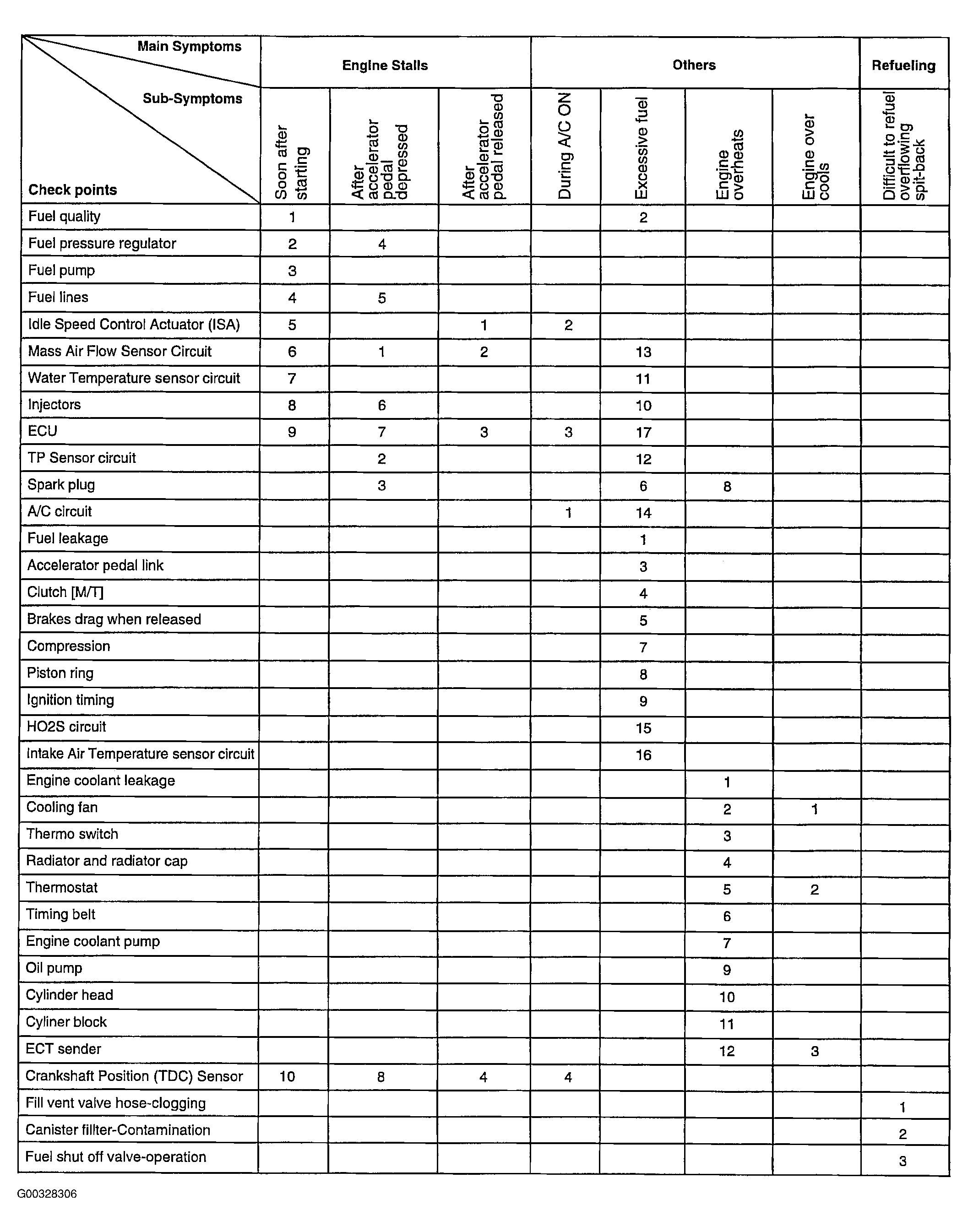

Fig 1: Symptom Diagnosis Chart (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The numbers in the columns indicate the proper troubleshooting sequence to be followed.

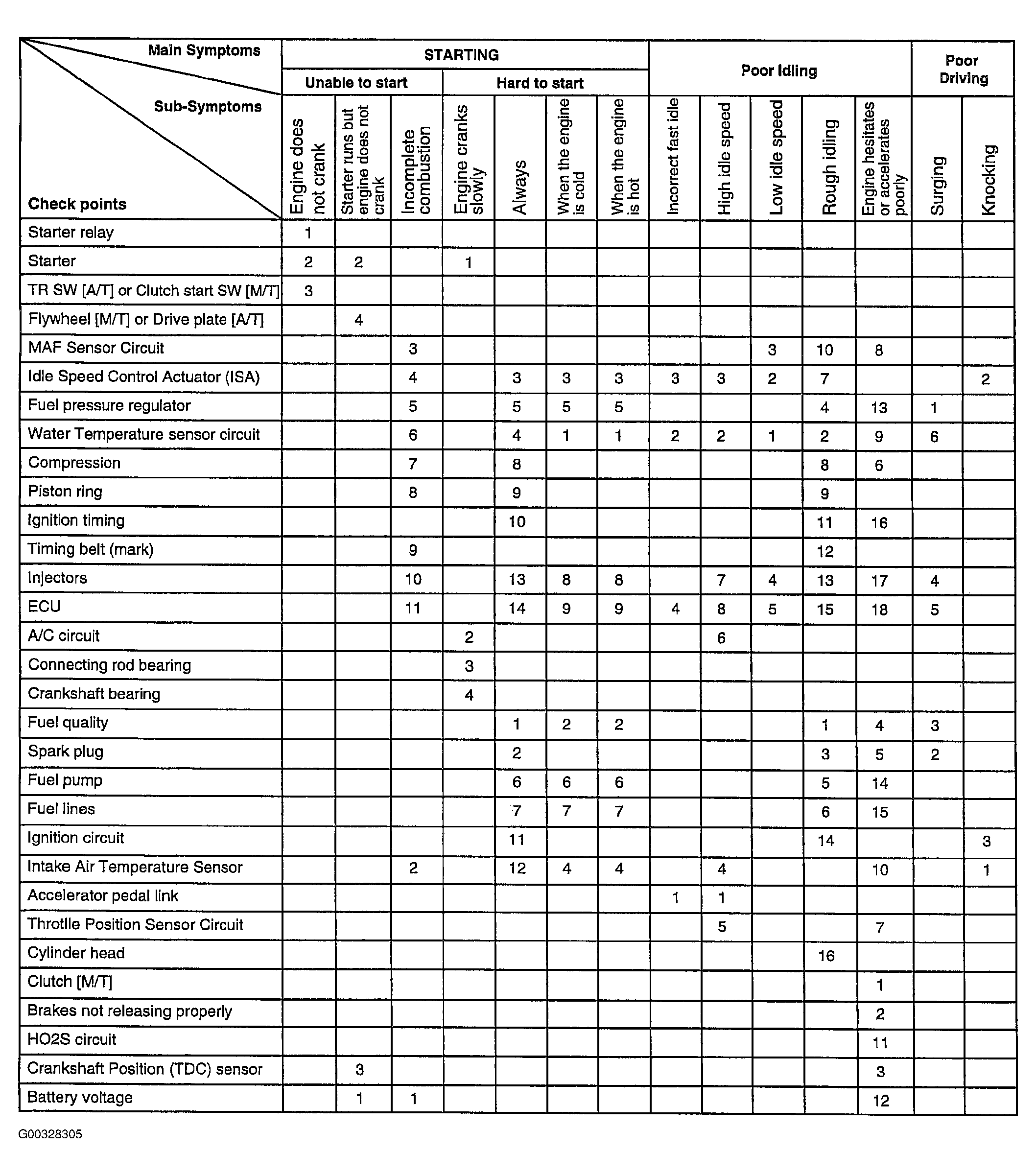

Fig 2: Symptom Diagnosis Chart (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The numbers in the columns indicate the proper troubleshooting sequence to be followed.
