Harness Inspection Procedures (Knock Sensor)

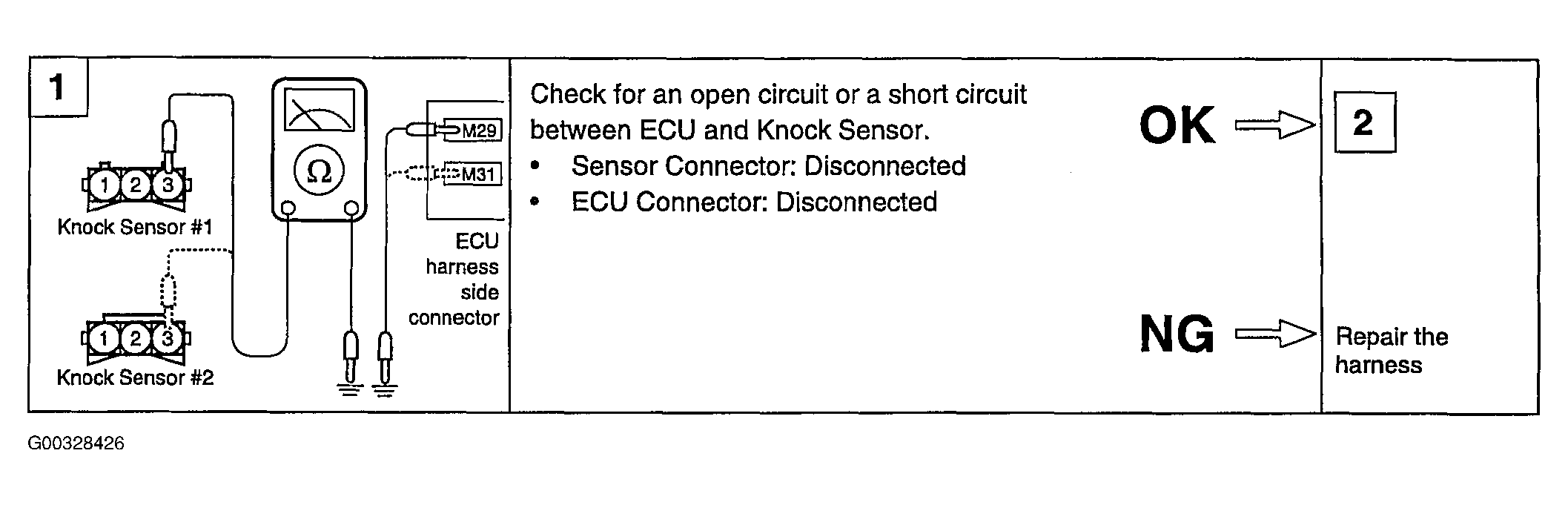

Fig 1: Checking Knock Sensor Harness (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

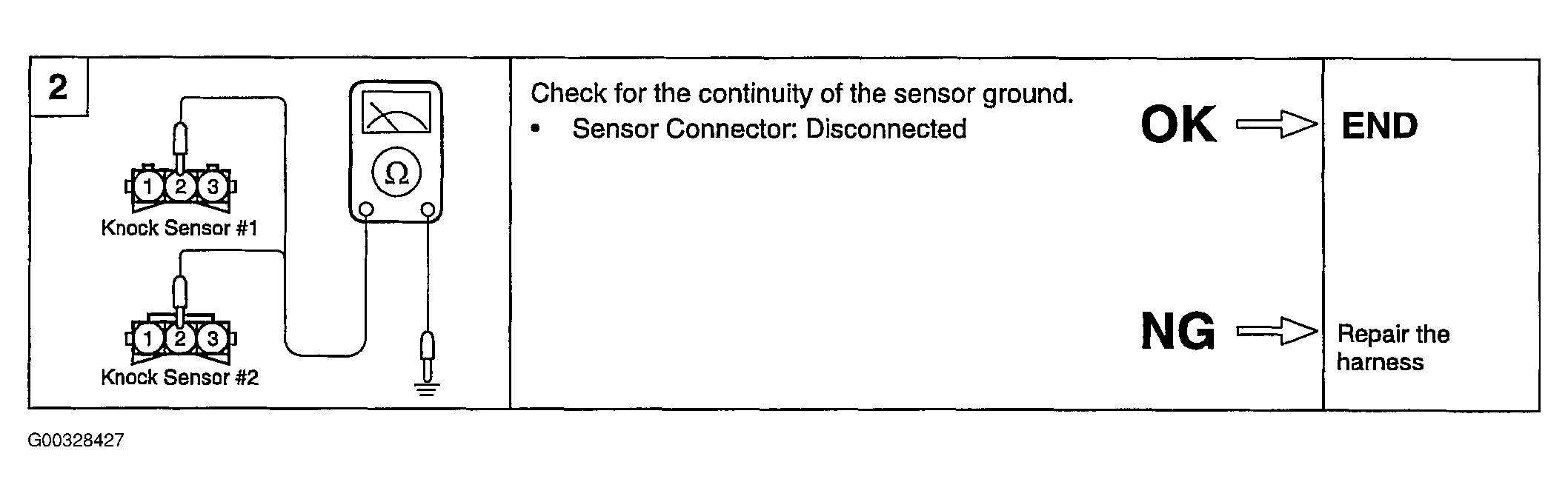

Fig 2: Checking Knock Sensor Harness (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
