Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references

Fig 1: Ground Points

G00262953

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Ground Points

G00262954

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Starting & Charging System

G00262955

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Powertrain Control System

G00262956

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Powertrain Control System

G00262957

Courtesy of KIA MOTORS AMERICA, INC.

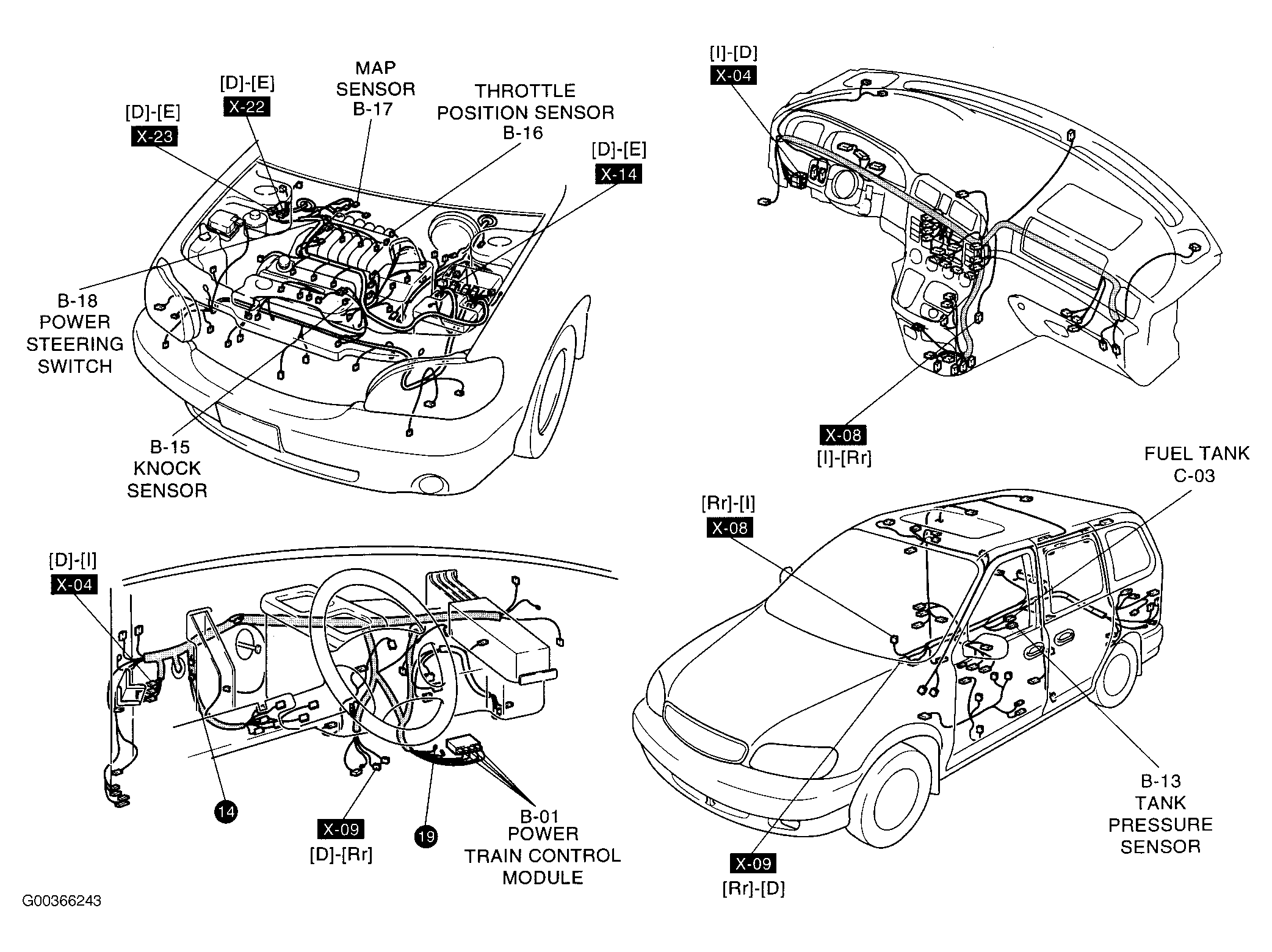

Fig 6: Powertrain Control System

G00366243

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Powertrain Control System

G00268999

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Powertrain Control System

G00269000

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Powertrain Control System

G00269001

Courtesy of KIA MOTORS AMERICA, INC.

Fig 10: Powertrain Control System

G00269002

Courtesy of KIA MOTORS AMERICA, INC.

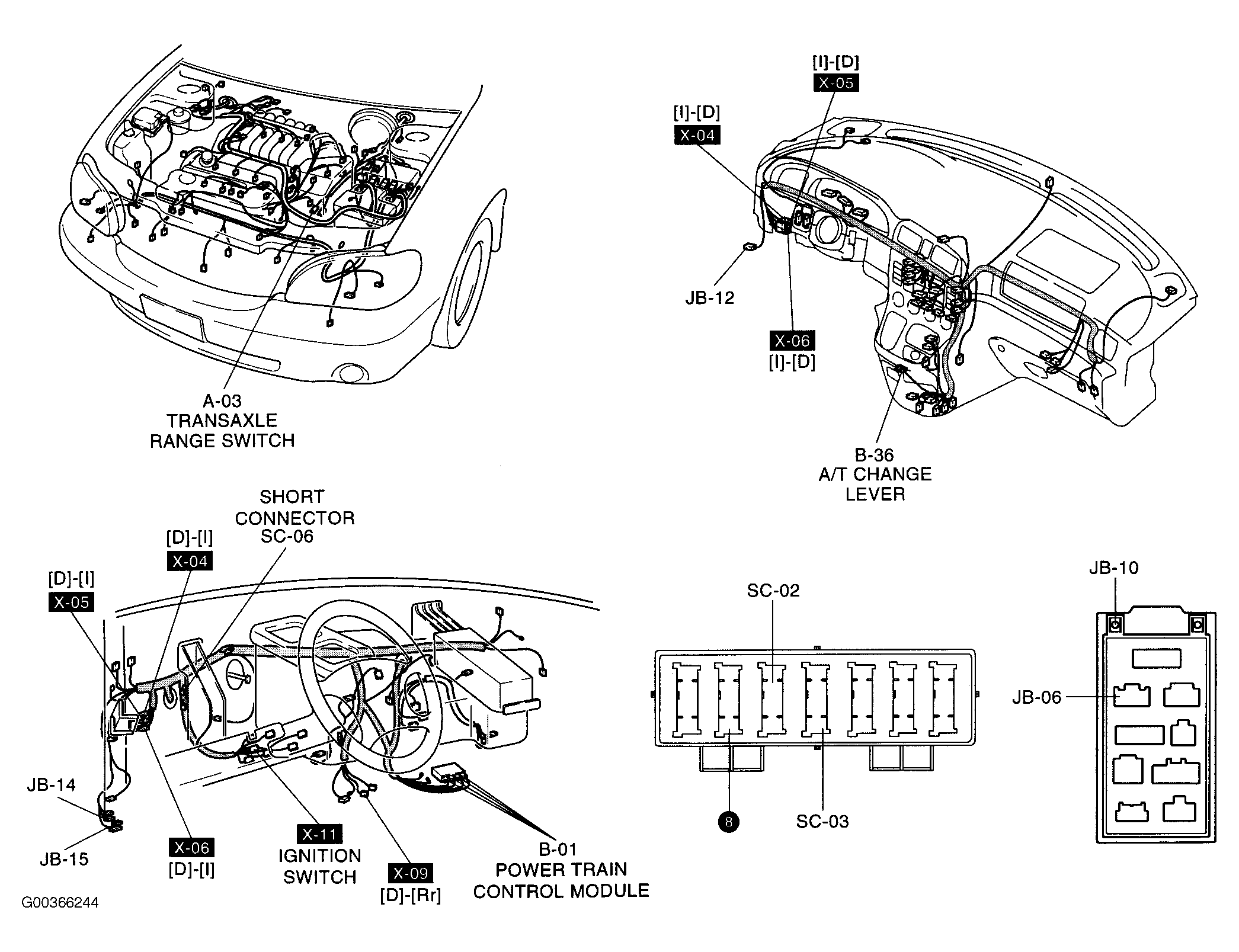

Fig 11: Powertrain Control System

G00366244

Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Powertrain Control System

G00269004

Courtesy of KIA MOTORS AMERICA, INC.

Fig 13: Cooling System

G00269005

Courtesy of KIA MOTORS AMERICA, INC.

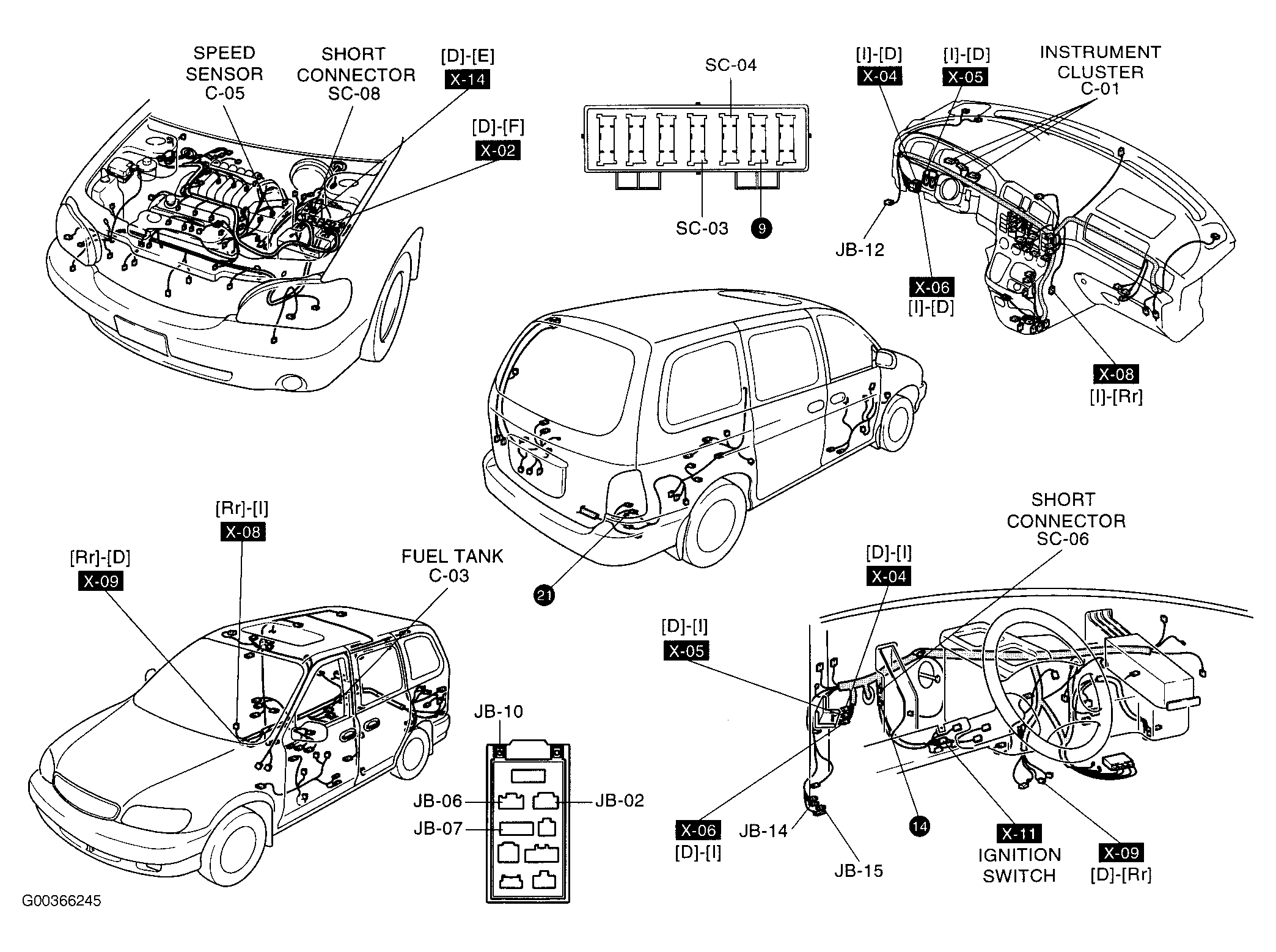

Fig 14: Instrument Cluster

G00366245

Courtesy of KIA MOTORS AMERICA, INC.

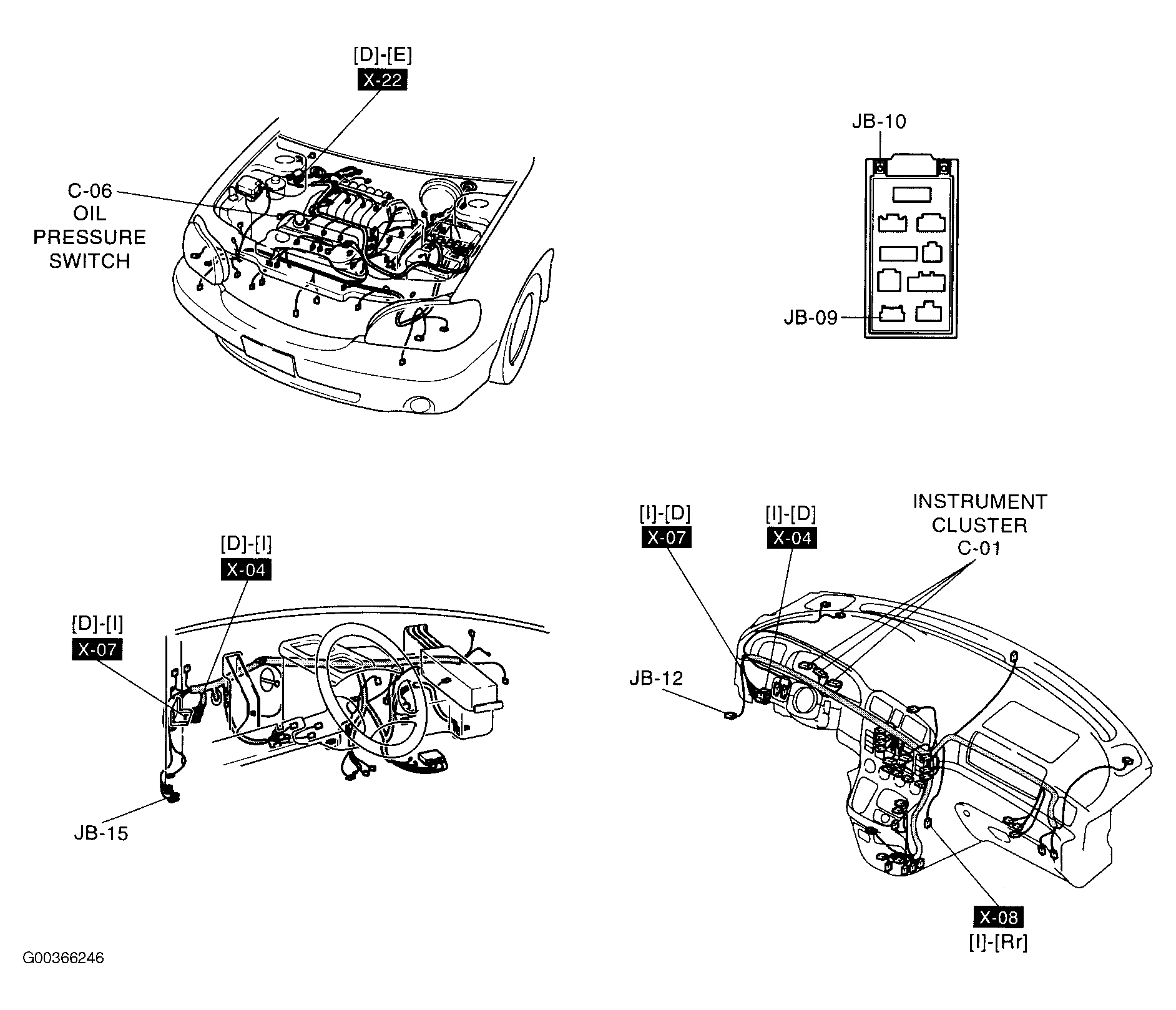

Fig 15: Instrument Cluster

G00366246

Courtesy of KIA MOTORS AMERICA, INC.

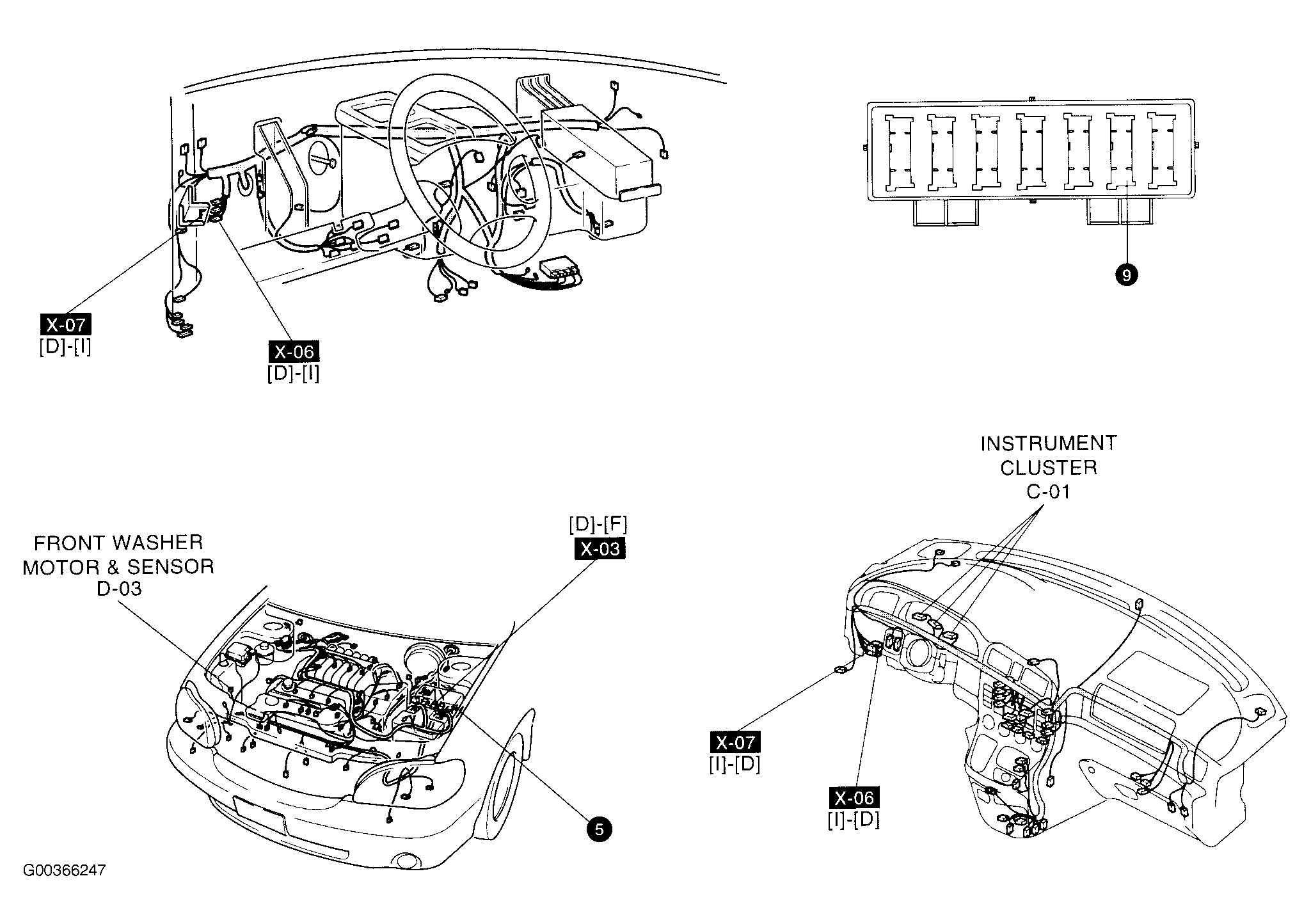

Fig 16: Instrument Cluster

G00366247

Courtesy of KIA MOTORS AMERICA, INC.

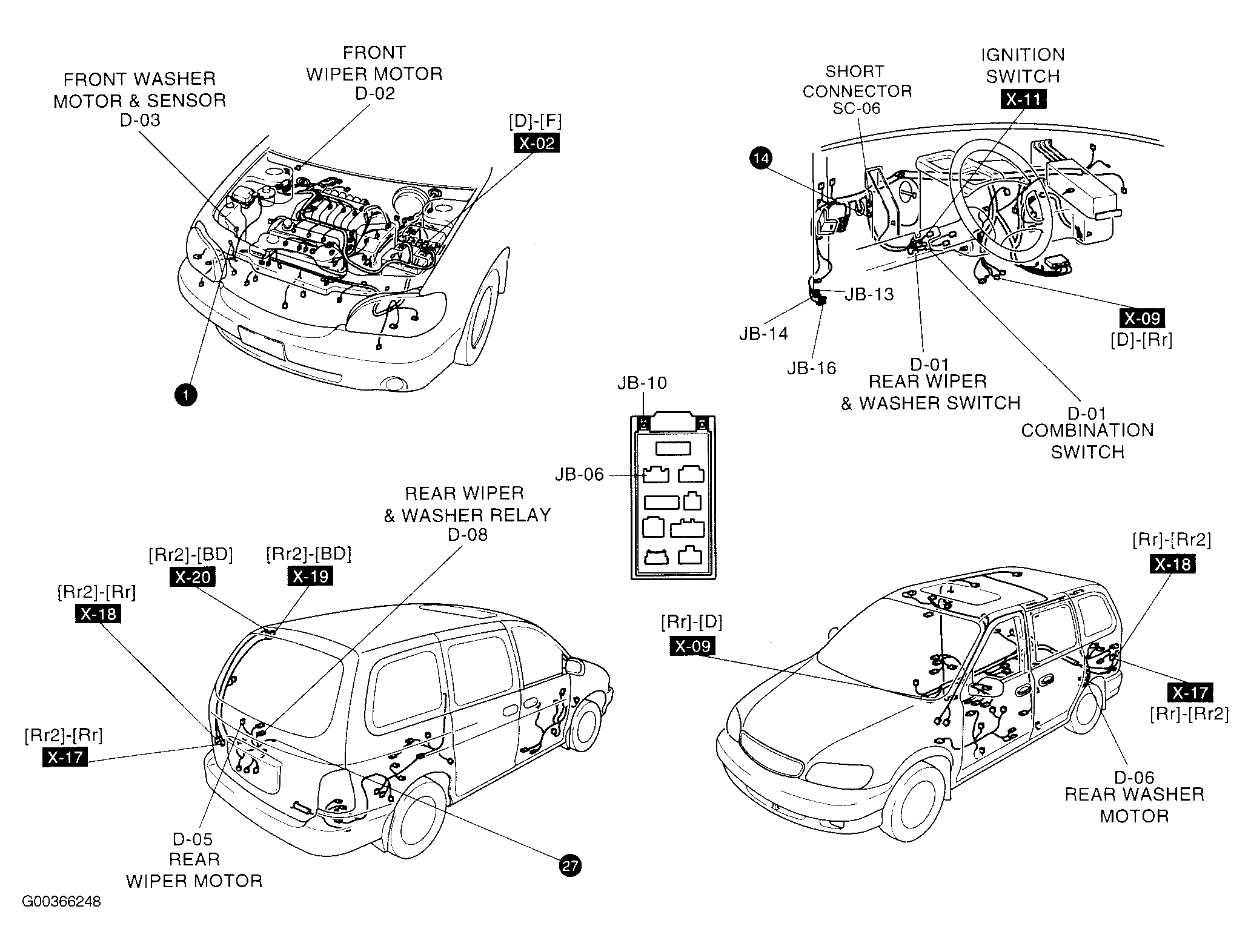

Fig 17: Wiper/Washer System

G00366248

Courtesy of KIA MOTORS AMERICA, INC.

Fig 18: Wiper/Washer System (Rain Sensor)

G00269010

Courtesy of KIA MOTORS AMERICA, INC.

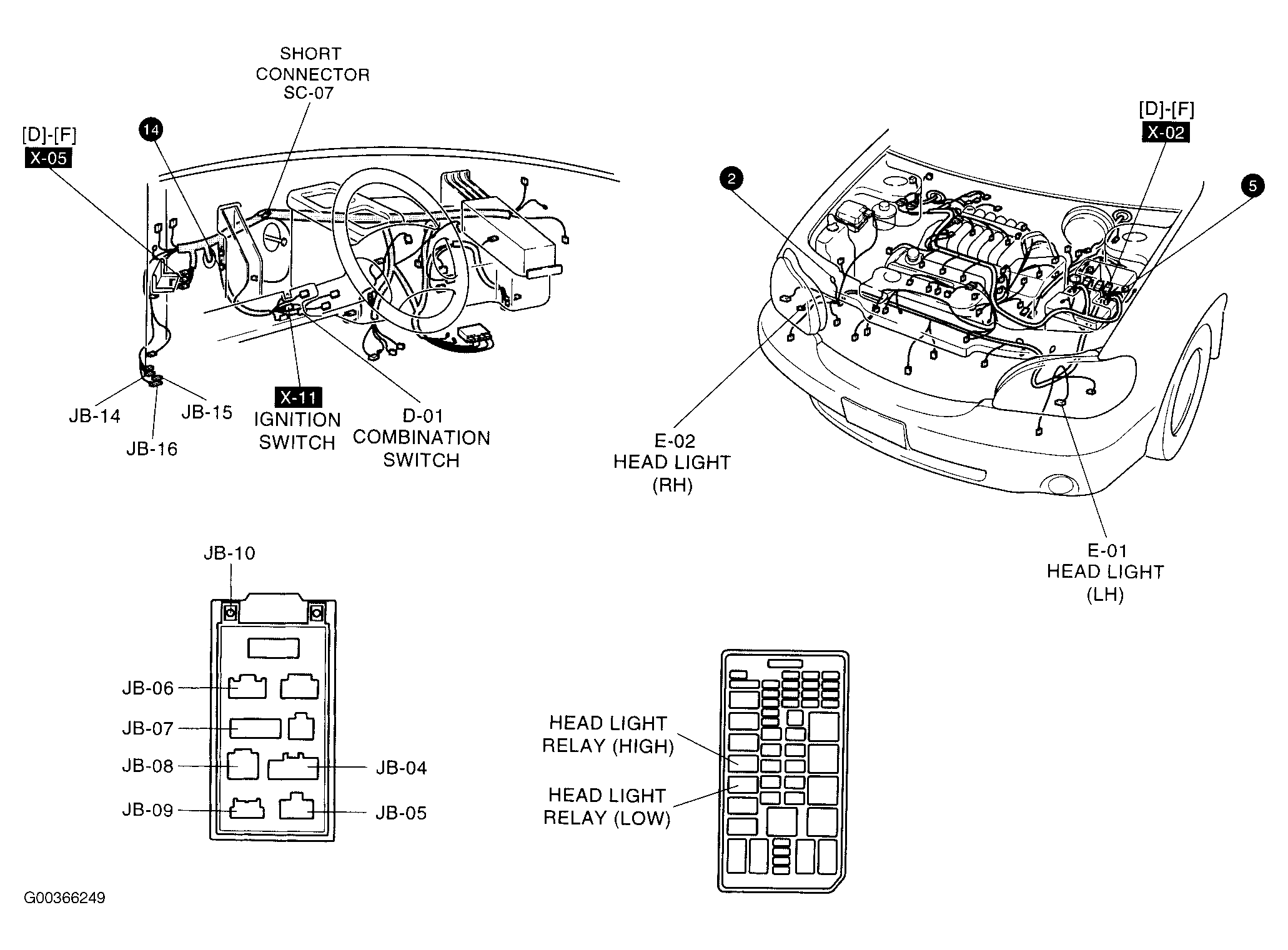

Fig 19: Headlights

G00366249

Courtesy of KIA MOTORS AMERICA, INC.

Fig 20: Headlights (Auto Light)

G00269012

Courtesy of KIA MOTORS AMERICA, INC.

Fig 21: Tail, Position, License & Front Fog Lamps

G00269013

Courtesy of KIA MOTORS AMERICA, INC.

Fig 22: Daytime Running Lamps

G00366250

Courtesy of KIA MOTORS AMERICA, INC.

Fig 23: Turn & Hazard Flasher Unit

G00366251

Courtesy of KIA MOTORS AMERICA, INC.

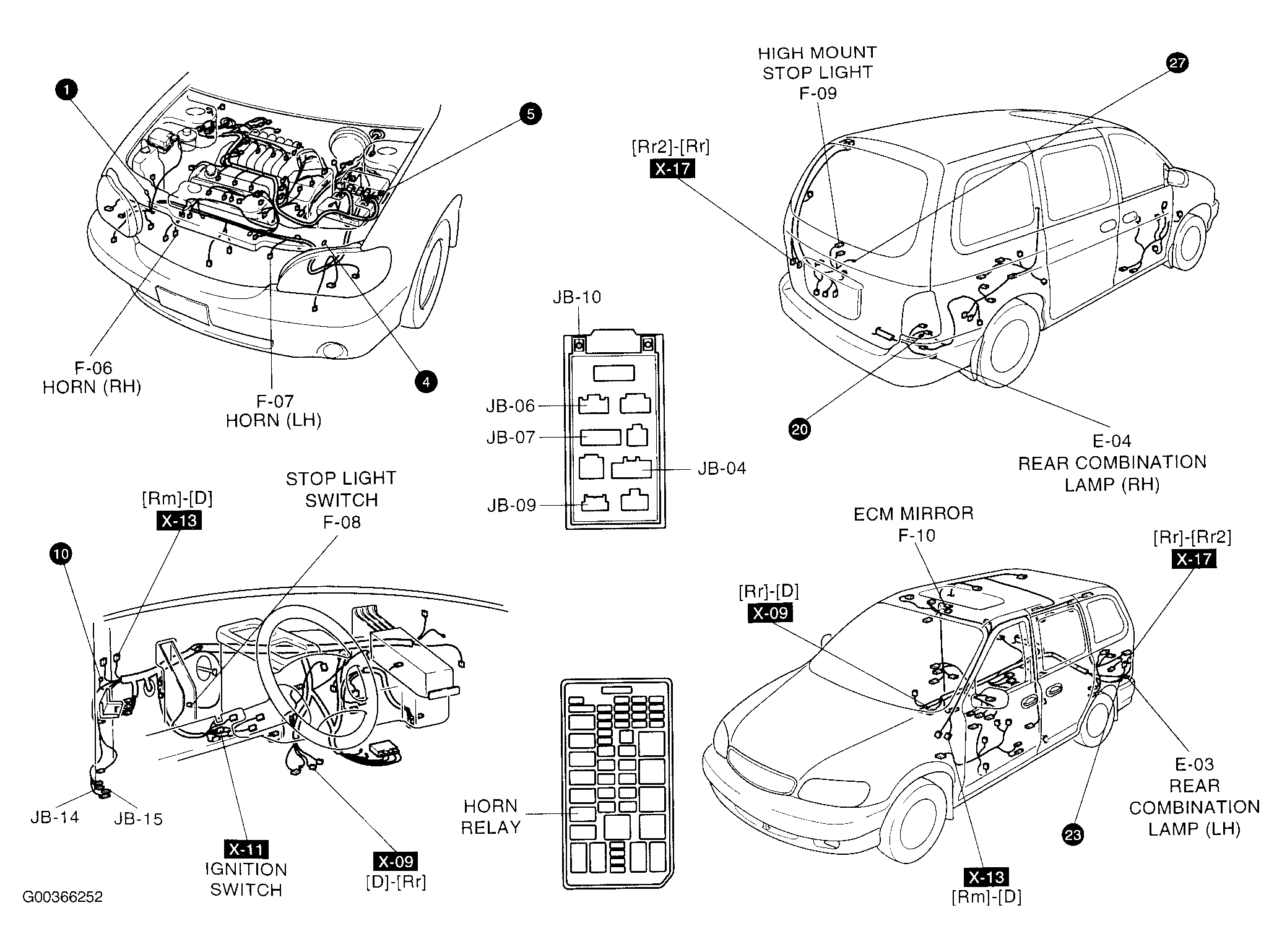

Fig 24: Horn

G00366252

Courtesy of KIA MOTORS AMERICA, INC.

Fig 25: Front Heater & A/C System

G00269017

Courtesy of KIA MOTORS AMERICA, INC.

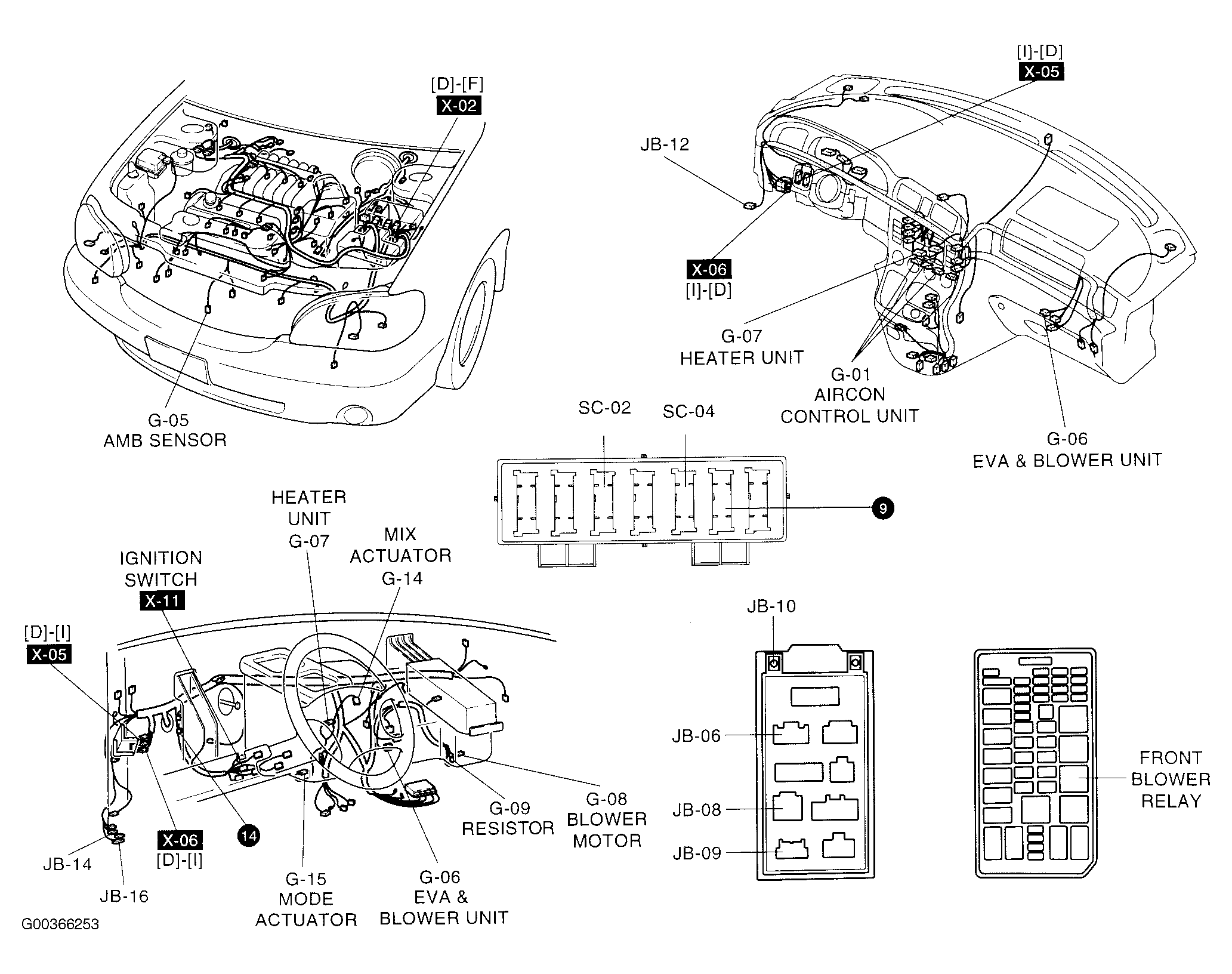

Fig 26: Front Heater & A/C System

G00366253

Courtesy of KIA MOTORS AMERICA, INC.

Fig 27: Rear Heater & A/C System

G00269019

Courtesy of KIA MOTORS AMERICA, INC.

Fig 28: ETWIS, Rear & Cargo Lamps

G00269020

Courtesy of KIA MOTORS AMERICA, INC.

Fig 29: Keyless Entry System

G00269021

Courtesy of KIA MOTORS AMERICA, INC.

Fig 30: ETWIS

G00366254

Courtesy of KIA MOTORS AMERICA, INC.

Fig 31: Sunvisor Lamps

G00269024

Courtesy of KIA MOTORS AMERICA, INC.

Fig 32: Audio System

G00269025

Courtesy of KIA MOTORS AMERICA, INC.

Fig 33: Back-Up Warning System

G00269026

Courtesy of KIA MOTORS AMERICA, INC.

Fig 34: Power Window System

G00269027

Courtesy of KIA MOTORS AMERICA, INC.

Fig 35: Power Door Lock System

G00269028

Courtesy of KIA MOTORS AMERICA, INC.

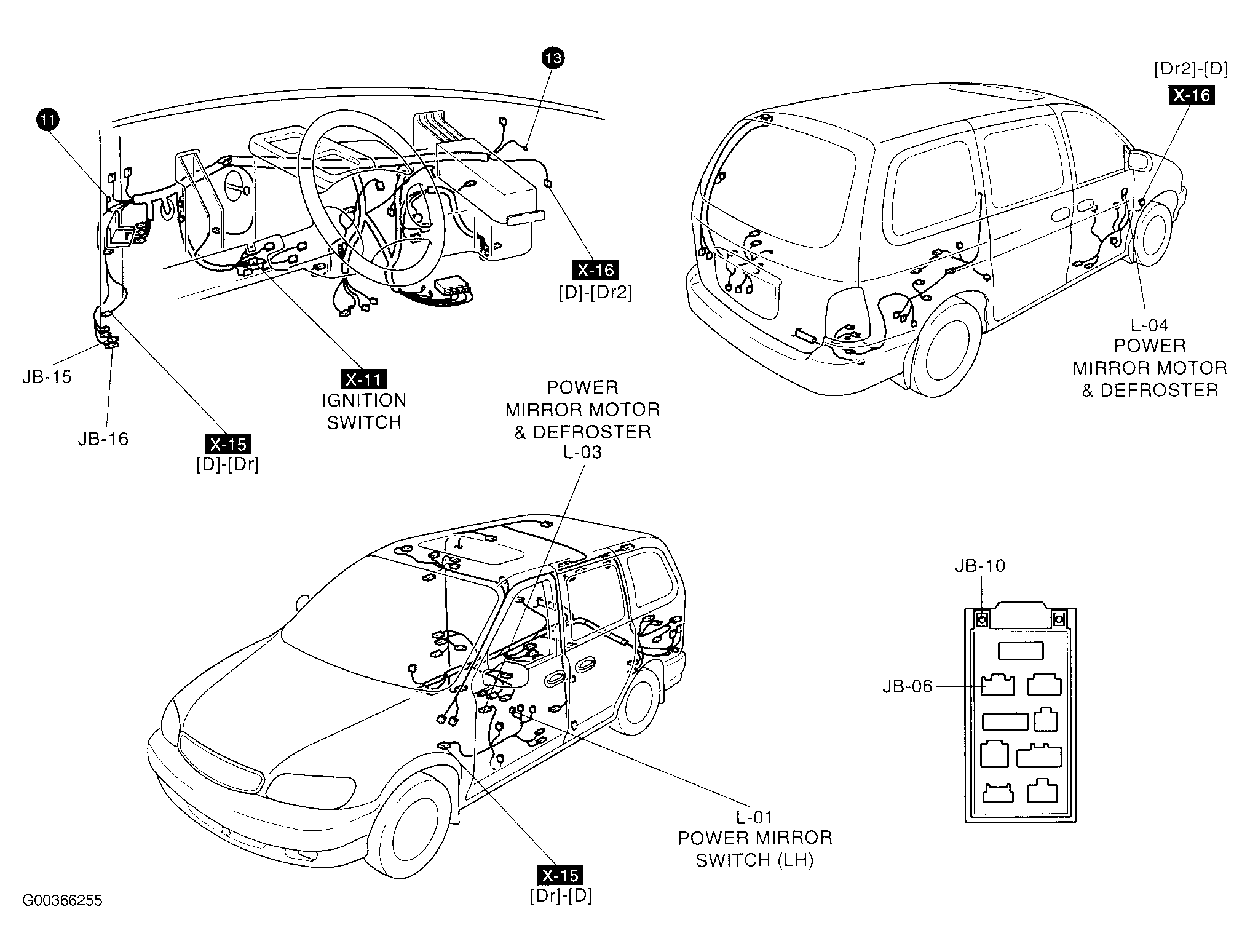

Fig 36: Power Mirror System

G00366255

Courtesy of KIA MOTORS AMERICA, INC.

Fig 37: Sunroof

G00269030

Courtesy of KIA MOTORS AMERICA, INC.

Fig 38: Anti-Lock Brake System

G00269031

Courtesy of KIA MOTORS AMERICA, INC.

Fig 39: Power Seat (Driver's)

G00269032

Courtesy of KIA MOTORS AMERICA, INC.

Fig 40: Power Seat (Passenger's)

G00269033

Courtesy of KIA MOTORS AMERICA, INC.

Fig 41: Cruise Control System

G00269034

Courtesy of KIA MOTORS AMERICA, INC.

Fig 42: Airbag System

G00366256

Courtesy of KIA MOTORS AMERICA, INC.

Fig 43: Fuel Lid Opener

G00269036

Courtesy of KIA MOTORS AMERICA, INC.

Fig 44: Trip Computer

G00269037

Courtesy of KIA MOTORS AMERICA, INC.

Fig 45: Immobilizer System

G00269038

Courtesy of KIA MOTORS AMERICA, INC.

Fig 46: Data Link Connector

G00269039

Courtesy of KIA MOTORS AMERICA, INC.

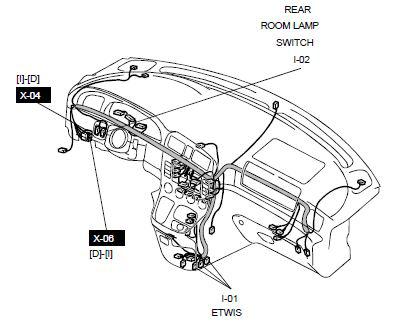

Fig 47: Instrument Panel

G00563570

Courtesy of KIA MOTORS AMERICA, INC.
