ECM Output

DUTY = T/256 usx 100%

The control to cooling fan is performed in ECM output + duty.

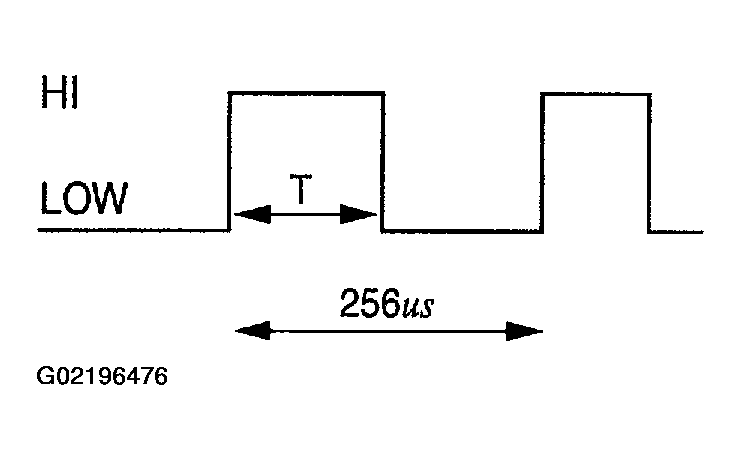

Fig 1: Illustrating ECM Output Voltage

G02196476

Courtesy of KIA MOTORS AMERICA, INC.
