Harness Inspection

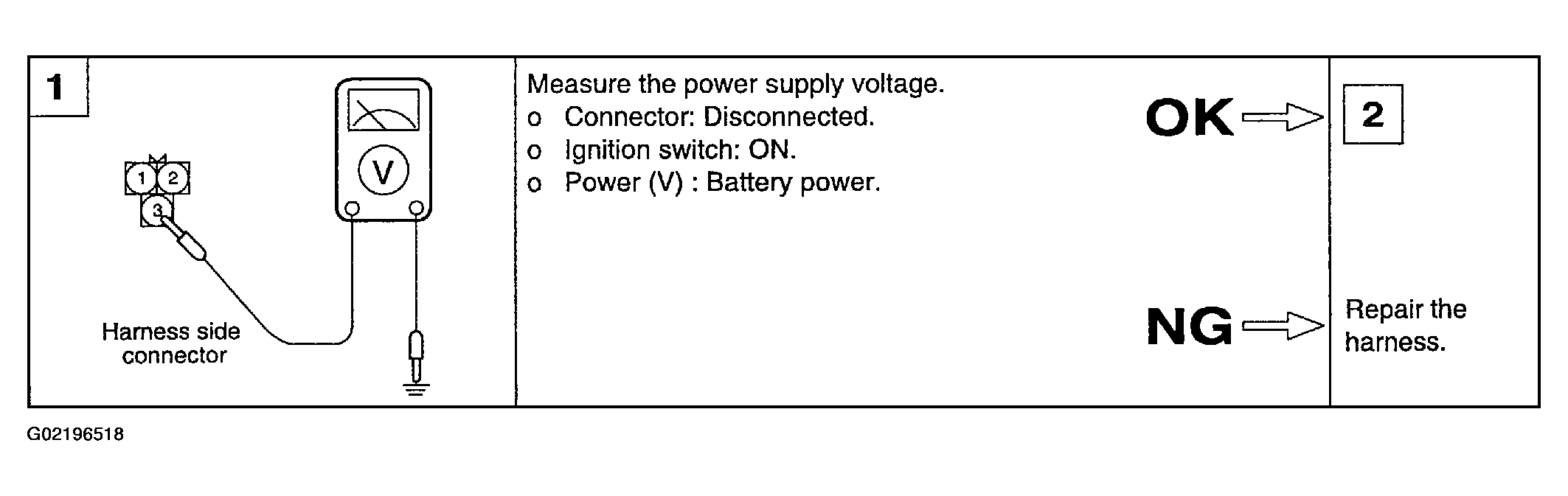

Fig 1: Harness Inspection (1 Of 3)
G02196518Courtesy of KIA MOTORS AMERICA, INC.

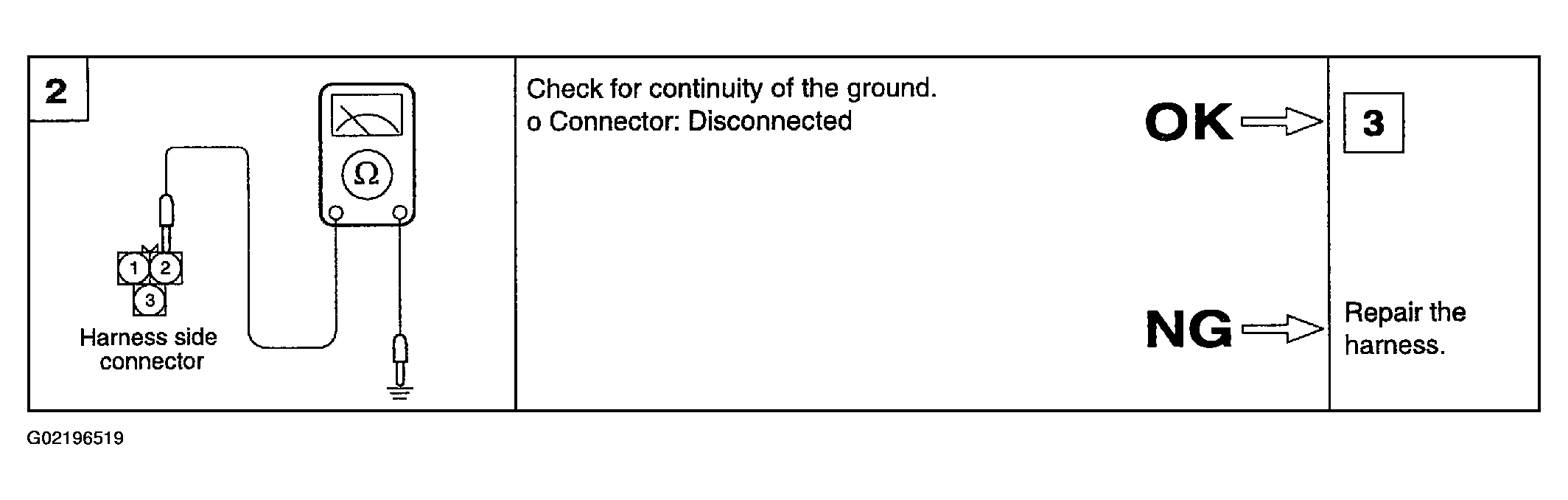

Fig 2: Harness Inspection (2 Of 3)
G02196519Courtesy of KIA MOTORS AMERICA, INC.

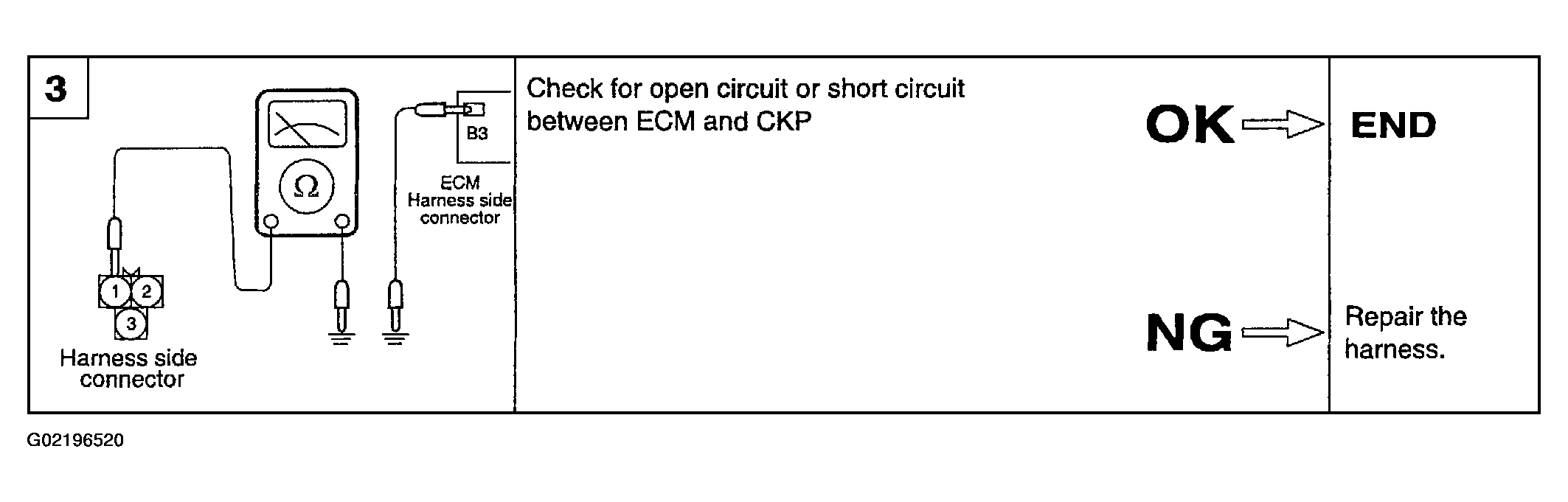

Fig 3: Harness Inspection (3 Of 3)
G02196520Courtesy of KIA MOTORS AMERICA, INC.
