Home >> Kia >> 2005 >> Sedona EX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System >> Troubleshooting >> Inlet Air Temperature (IAT) Sensor >> Testing

Inlet Air Temperature (IAT) Sensor: Testing

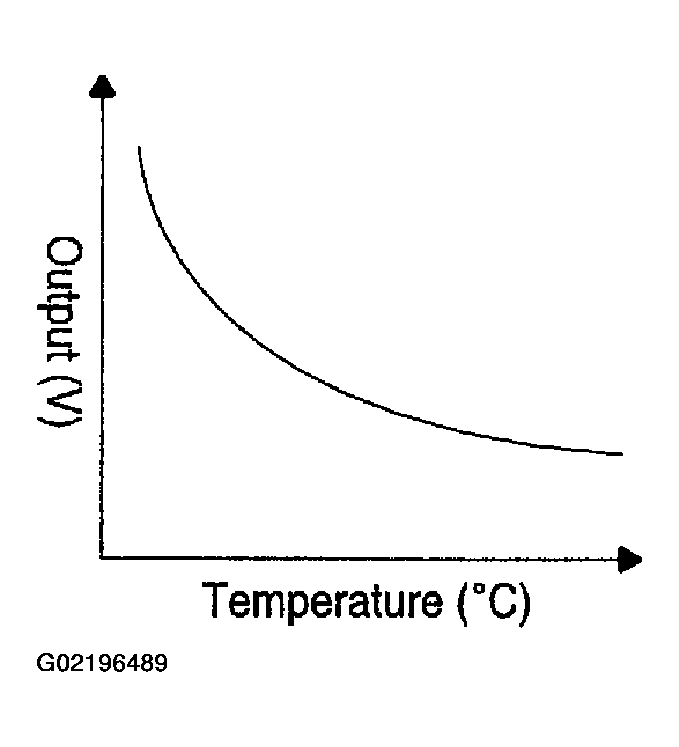

Fig 1: IAT Sensor Voltage Graph

G02196489

Courtesy of KIA MOTORS AMERICA, INC.

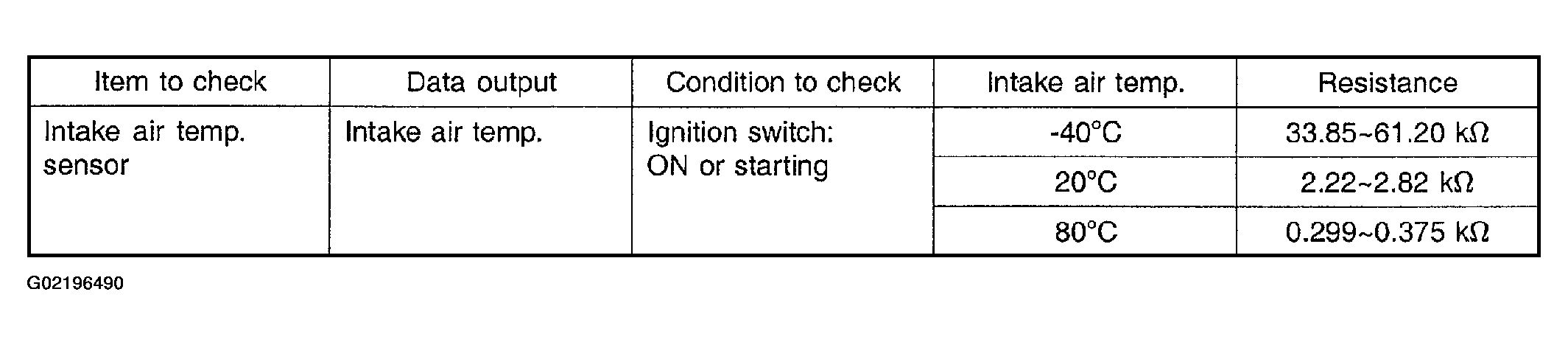

Fig 2: IAT Sensor Voltage Chart

G02196490

Courtesy of KIA MOTORS AMERICA, INC.
