Automatic Transaxle System: Component

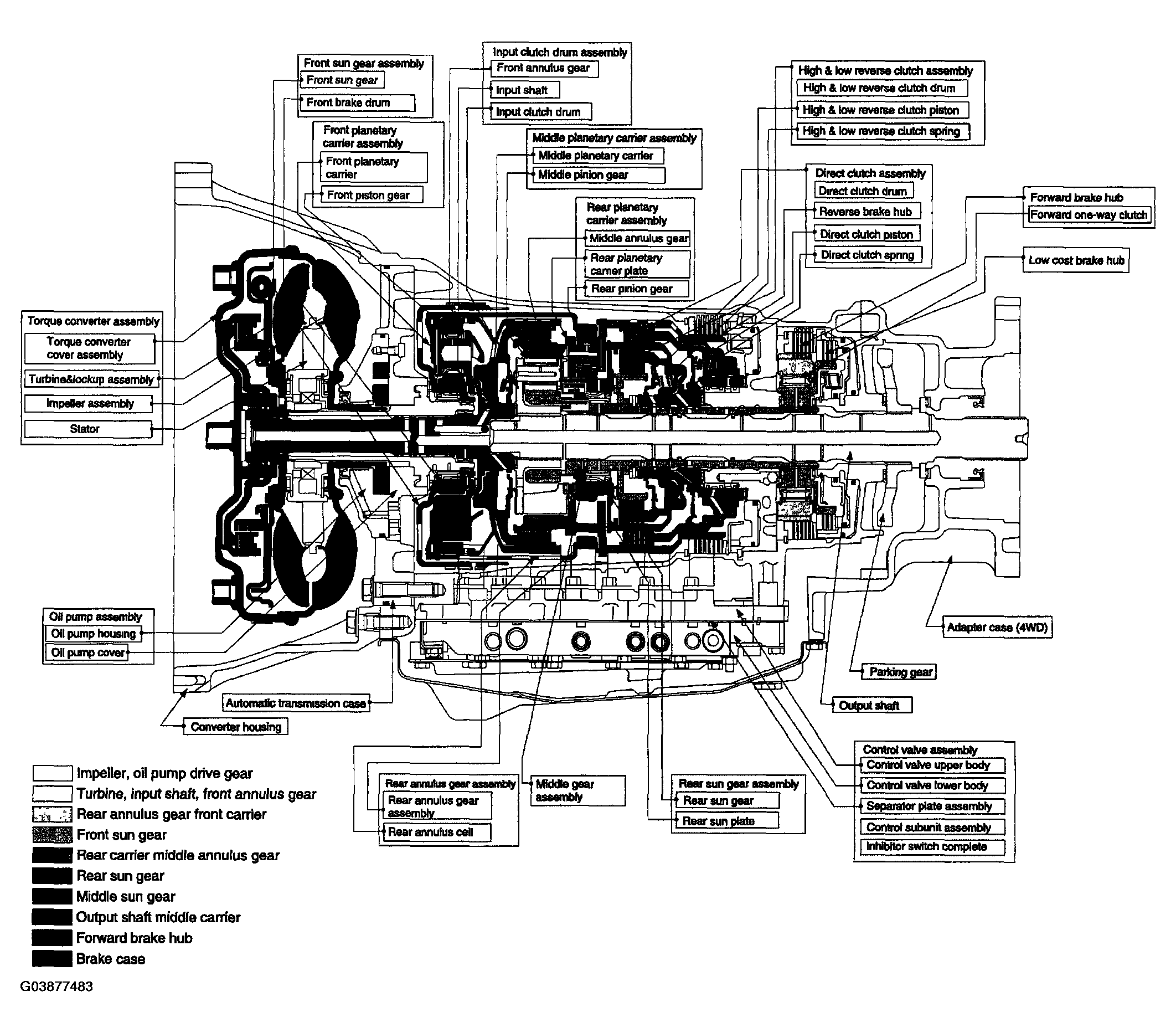

Fig 1: Identifying Components Automatic Transmission (A5SR1)

G03877483

Courtesy of KIA MOTORS AMERICA, INC.
