Line Pressure Standard Values

LINE PRESSURE STANDARD VALUES

Engine speed Line pressure (kpa(kg/cm2 ))
R range D range
Idle 490(5.0) 490(5.0)
Stall 1180(12.0)

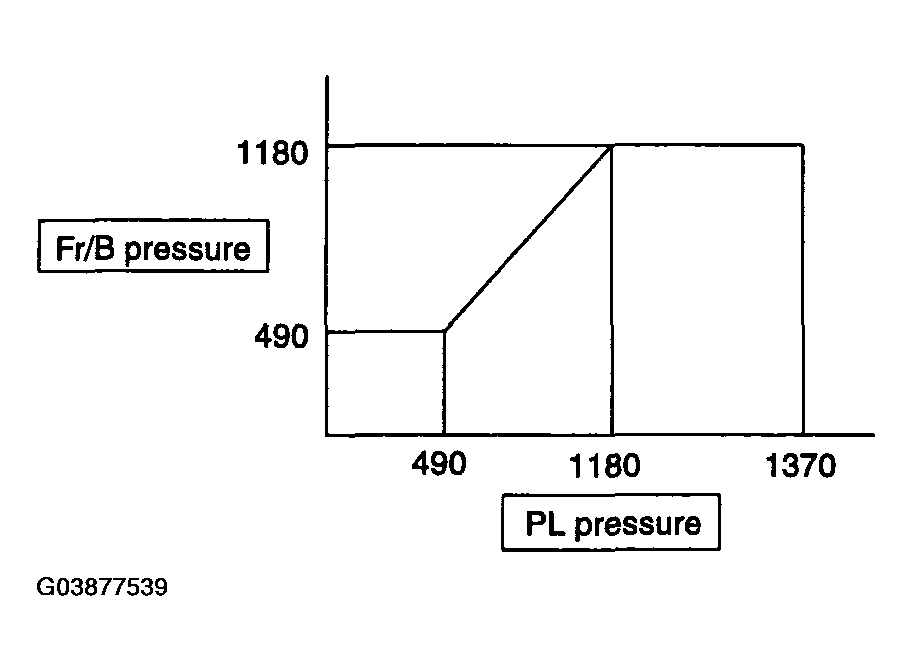

Fig 1: Line Pressure Graph
G03877539Courtesy of KIA MOTORS AMERICA, INC.
