Test Procedures

Check the engine oil level. Replenish if necessary.
Warm it up until ATF reaches 70~80°C(158~176°F) after approximately 10 minutes of driving. Replenish if necessary.
NOTE: When ambient temperature is 20°C(68°F), fluid temperature reaches 70~80°C(158~176°F) after approximately 10 minutes of urban driving.

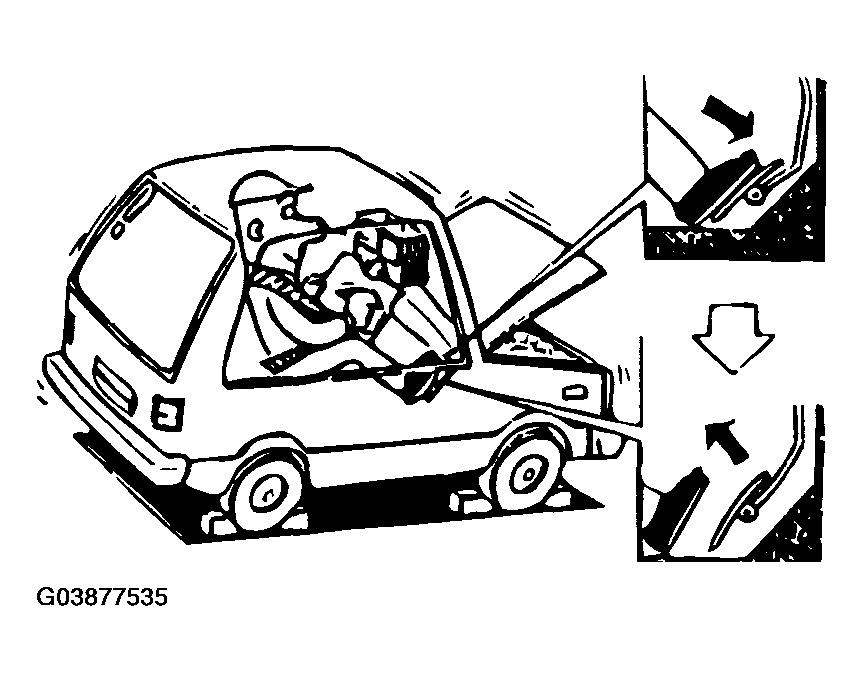

Fig 1: Performing Stall Test
Courtesy of KIA MOTORS AMERICA, INC.
Securely engage the parking brake so that the tires do not turn.

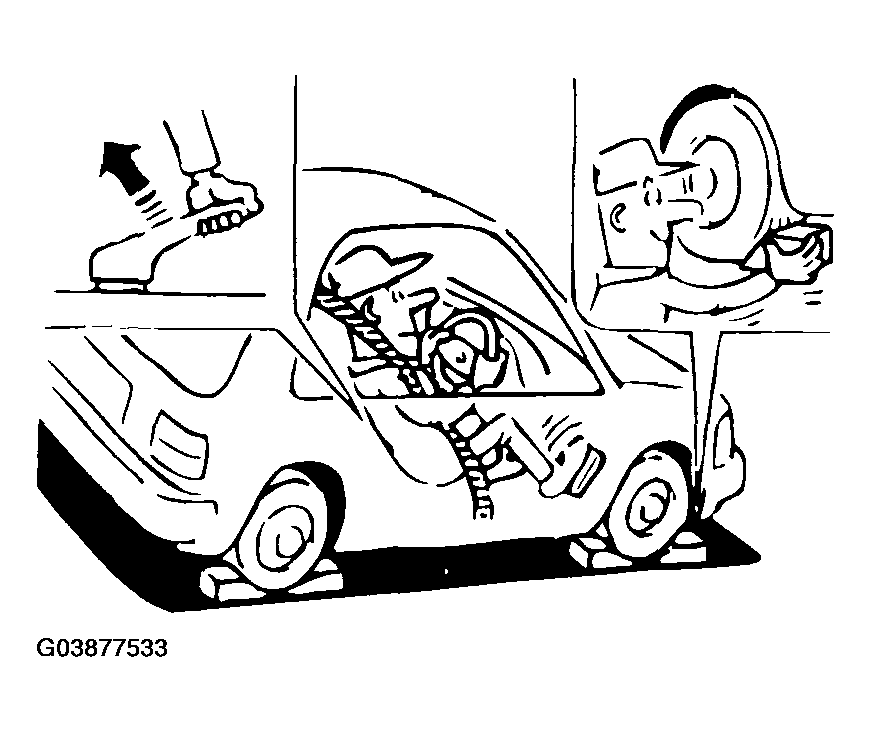

Fig 2: Engaging Parking Brake
Courtesy of KIA MOTORS AMERICA, INC.
Start the engine. Depress the foot brake. Move the select lever to "D" range.

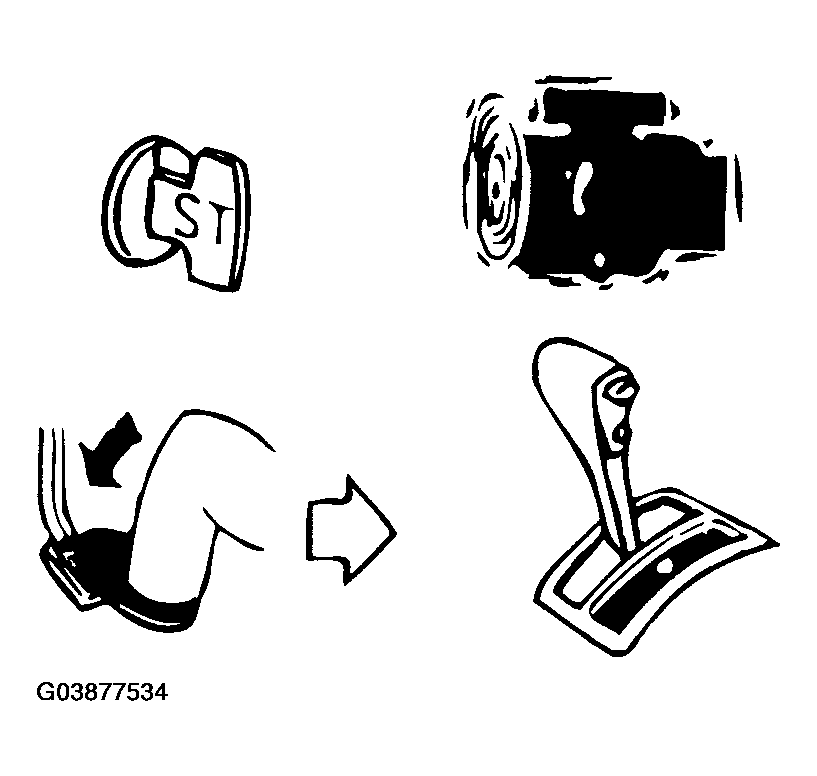

Fig 3: Moving Select Lever To "D" Range
Courtesy of KIA MOTORS AMERICA, INC.
Gradually depress the accelerator pedal while depressing the foot brake.

Fig 4: Depressing Accelerator Pedal
Courtesy of KIA MOTORS AMERICA, INC.
Quickly read the stall speed. And quickly remove the feet from accelerator pedal.
CAUTION: Do not depress the accelerator pedal for more than 5 seconds during test.
Move the select lever to "N" range.

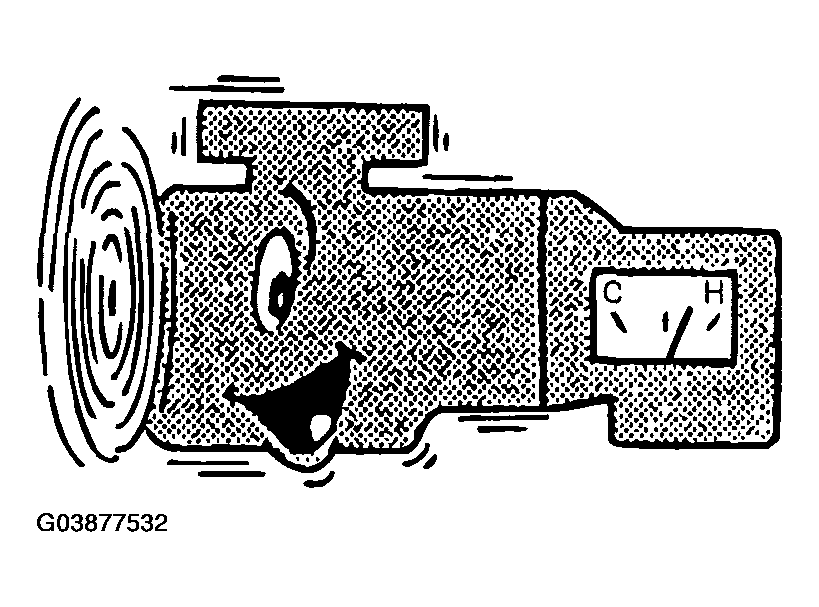

Cool down the ATF.
CAUTION: Run the engine at idle for at least 1 minute.

* During 3.5 Idle :

N range-800rpm(A/CON OFF)

Others-900rpm(A/CON ON)

D range-750rpm(A/CON OFF)

Others-750rpm(A/CON ON)

* During SALL :

D range-2300rpm(A/CON OFF)
