TCM Output Waveform

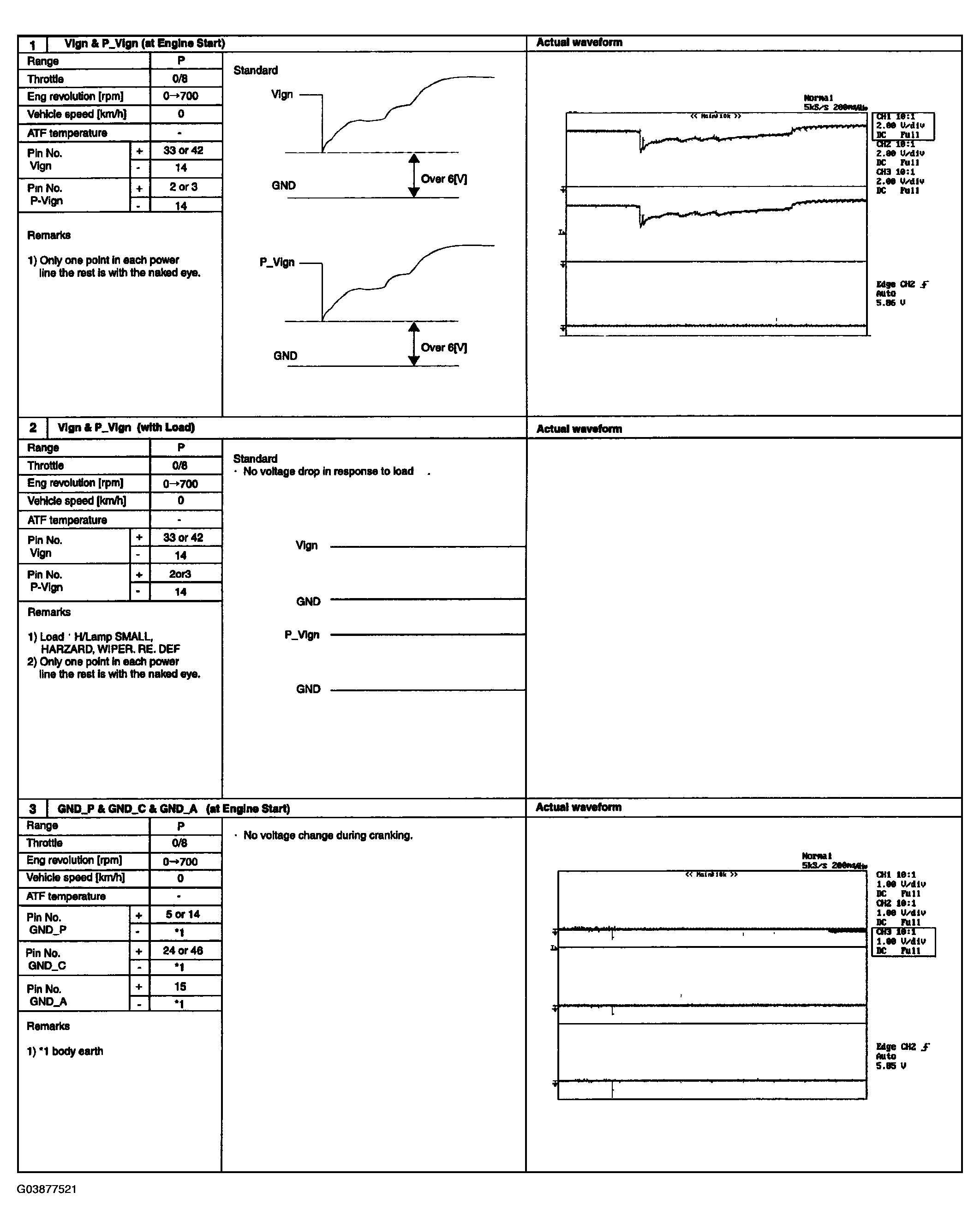

Fig 1: TCM Output Waveform (1 Of 10)

G03877521

Courtesy of KIA MOTORS AMERICA, INC.

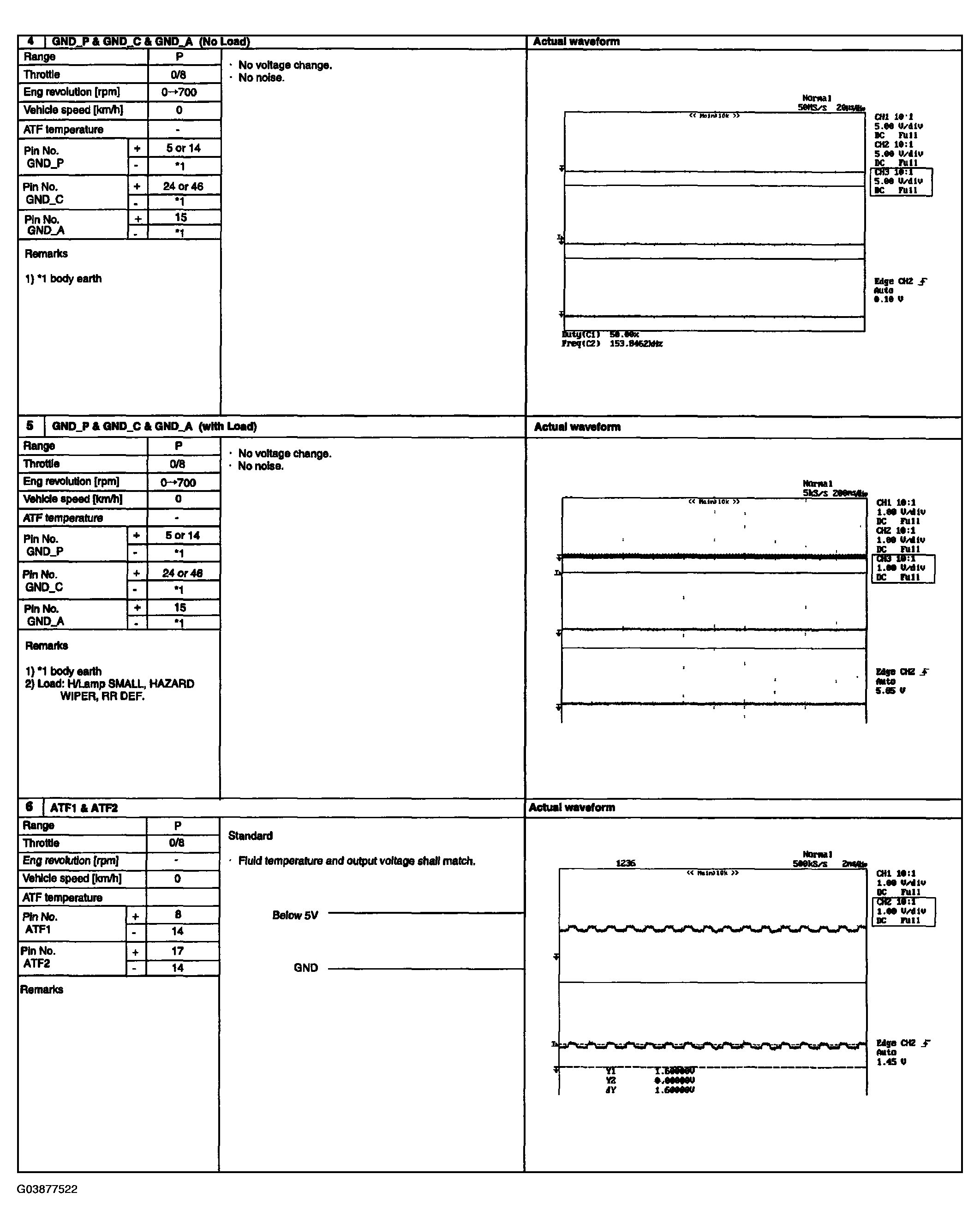

Fig 2: TCM Output Waveform (2 Of 10)

G03877522

Courtesy of KIA MOTORS AMERICA, INC.

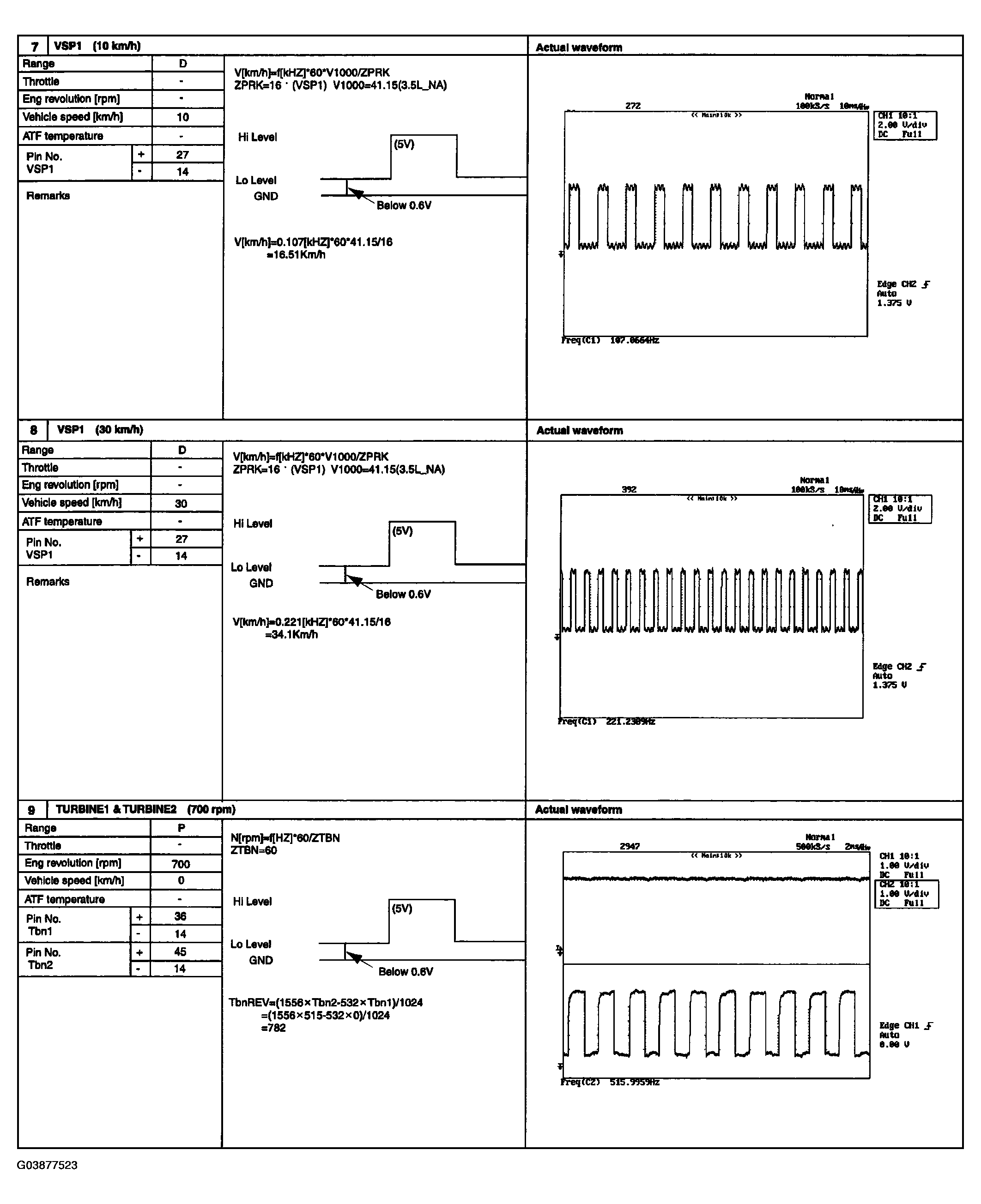

Fig 3: TCM Output Waveform (3 Of 10)

G03877523

Courtesy of KIA MOTORS AMERICA, INC.

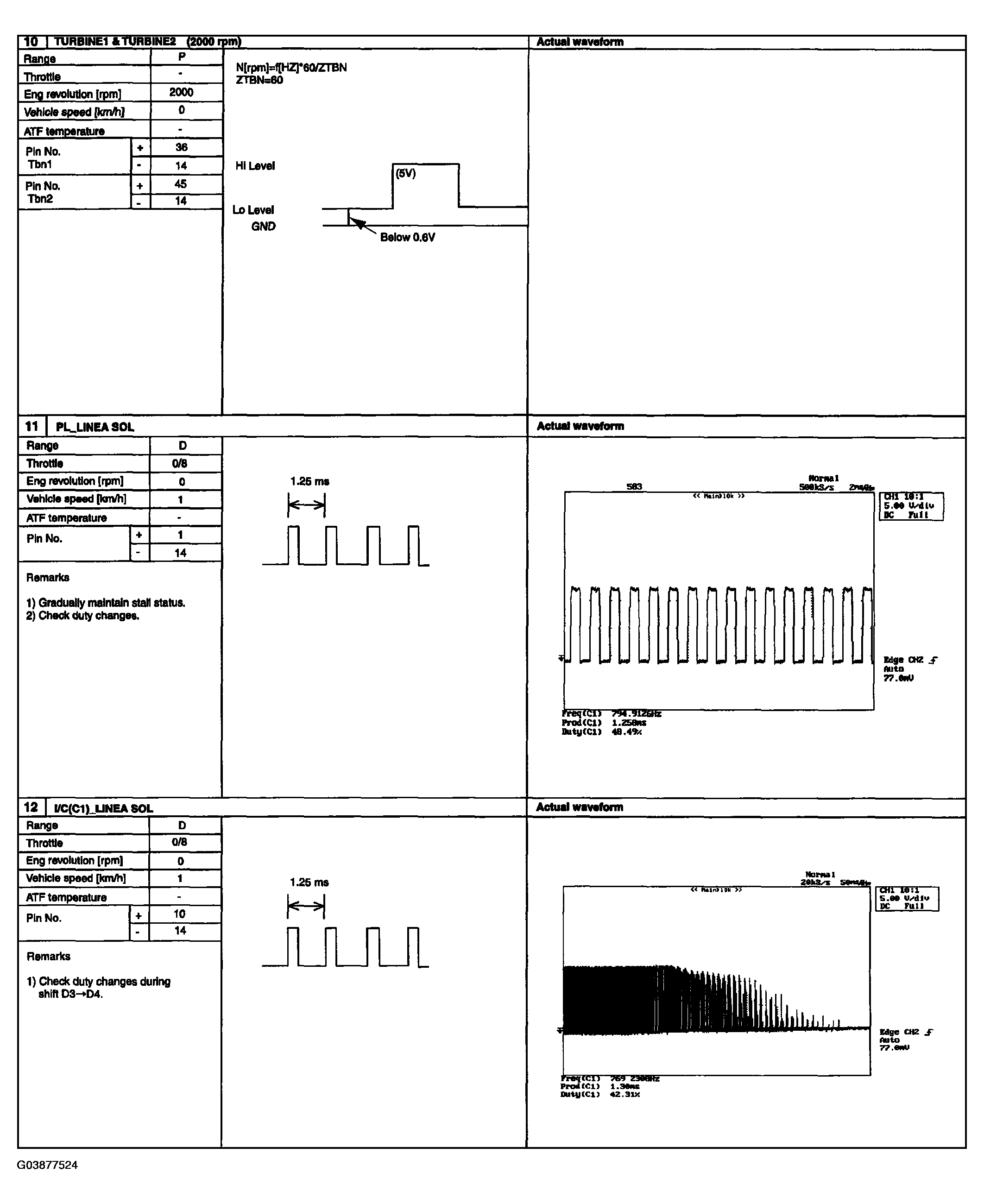

Fig 4: TCM Output Waveform (4 Of 10)

G03877524

Courtesy of KIA MOTORS AMERICA, INC.

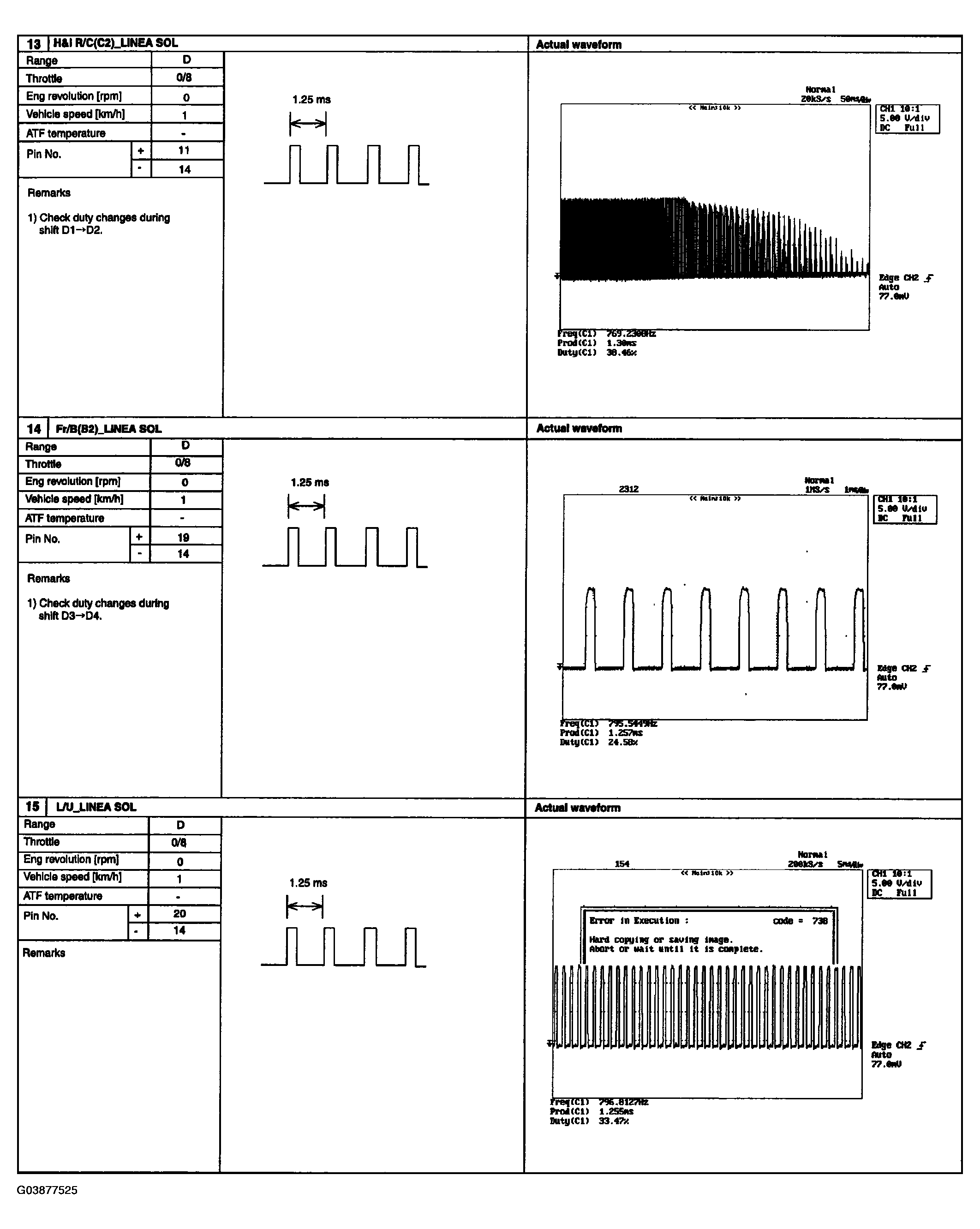

Fig 5: TCM Output Waveform (5 Of 10)

G03877525

Courtesy of KIA MOTORS AMERICA, INC.

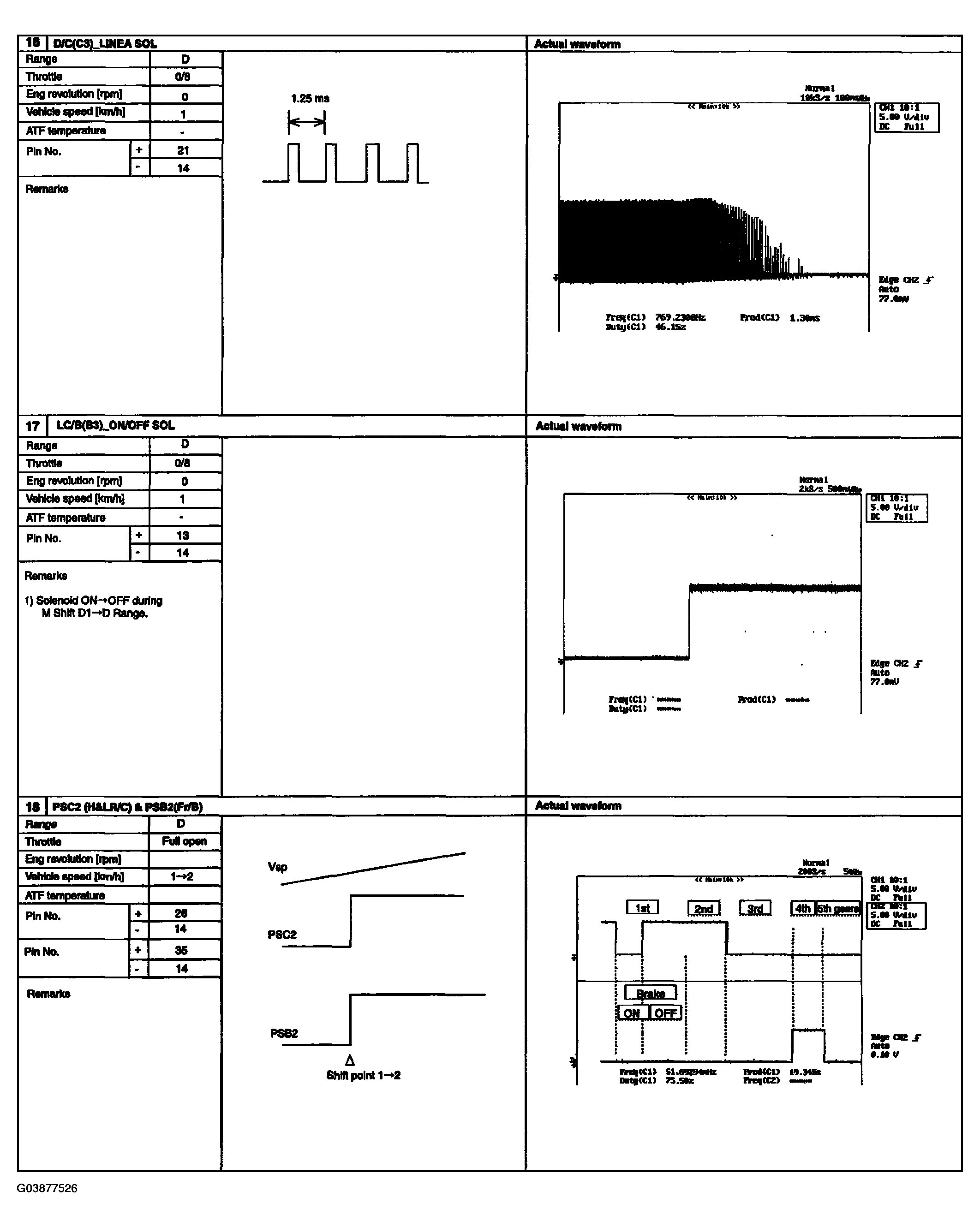

Fig 6: TCM Output Waveform (6 Of 10)

G03877526

Courtesy of KIA MOTORS AMERICA, INC.

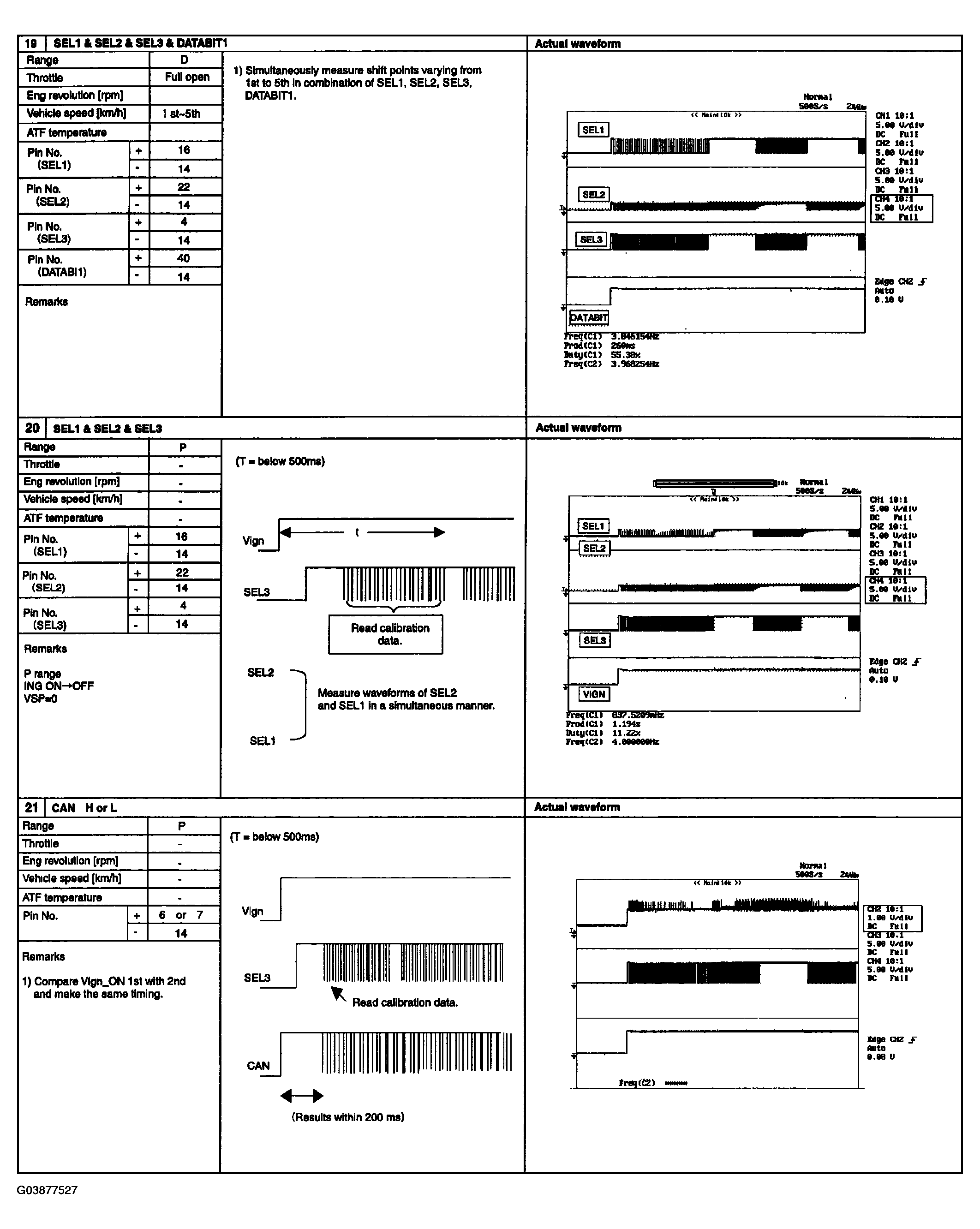

Fig 7: TCM Output Waveform (7 Of 10)

G03877527

Courtesy of KIA MOTORS AMERICA, INC.

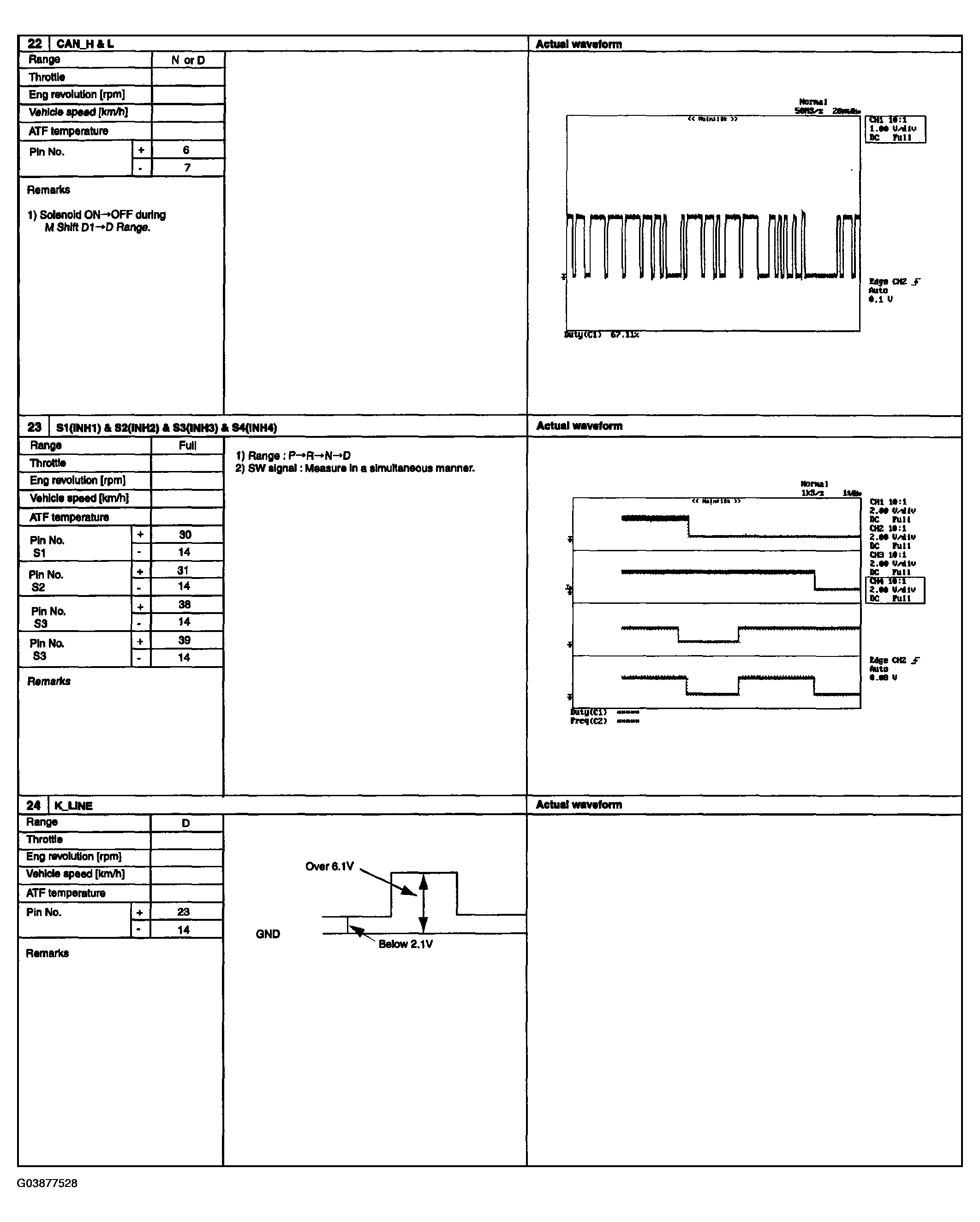

Fig 8: TCM Output Waveform (8 Of 10)

G03877528

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: TCM Output Waveform (9 Of 10)

G03877529

Courtesy of KIA MOTORS AMERICA, INC.

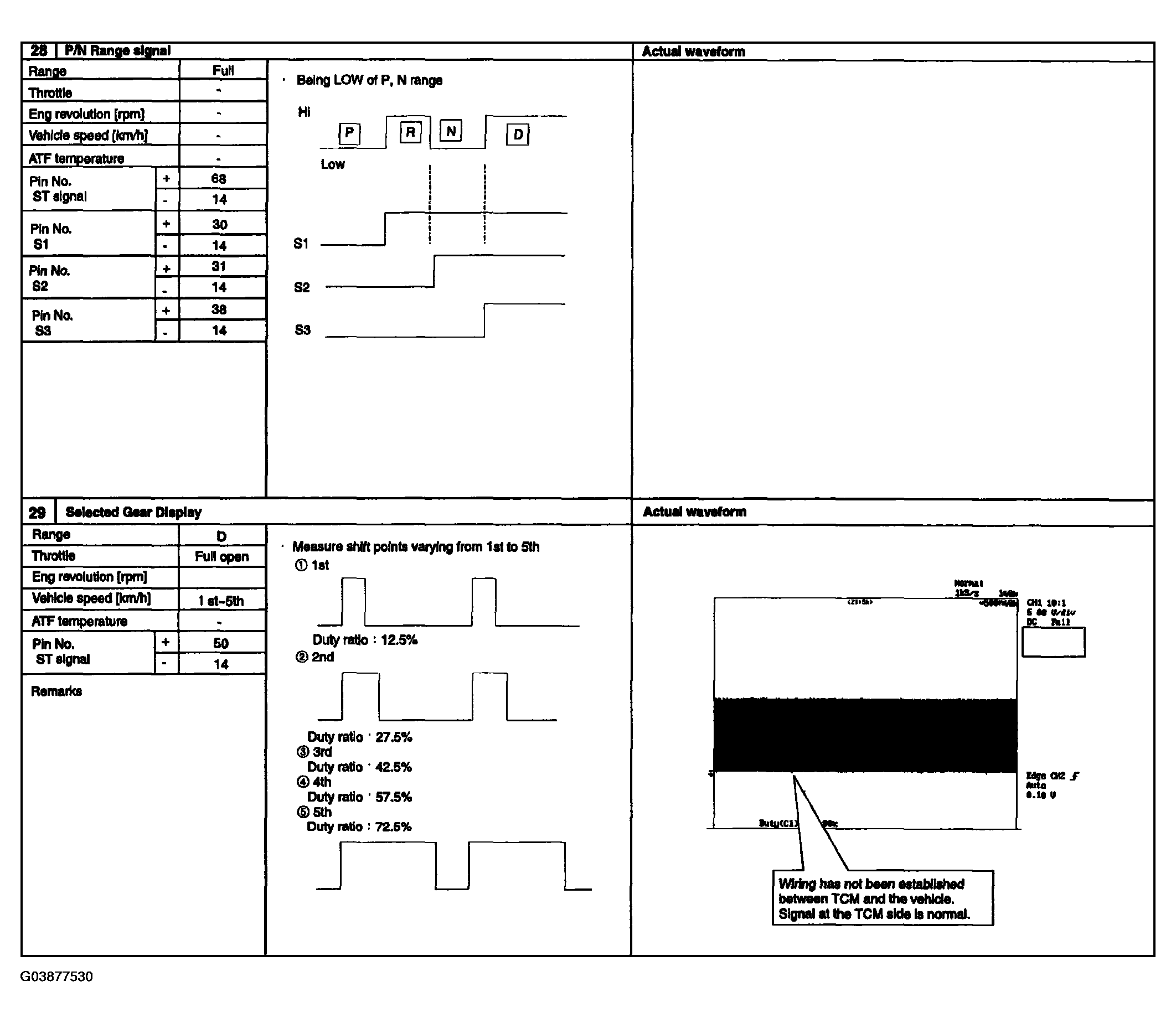

Fig 10: TCM Output Waveform (10 Of 10)

G03877530

Courtesy of KIA MOTORS AMERICA, INC.
