Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component	Location

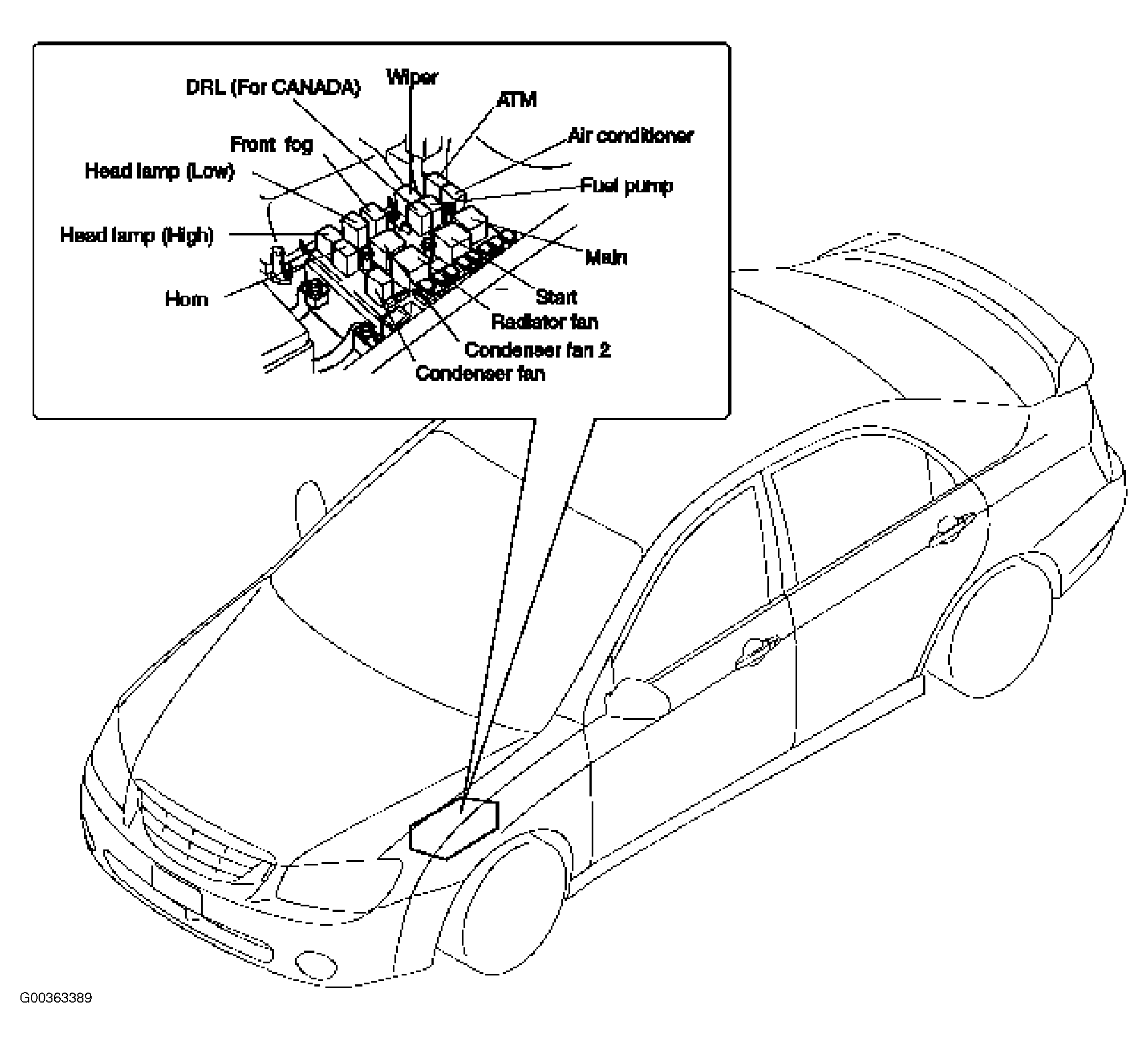

Engine Compartment Fuse/Relay Box	Left rear of engine compartment. See Figure.

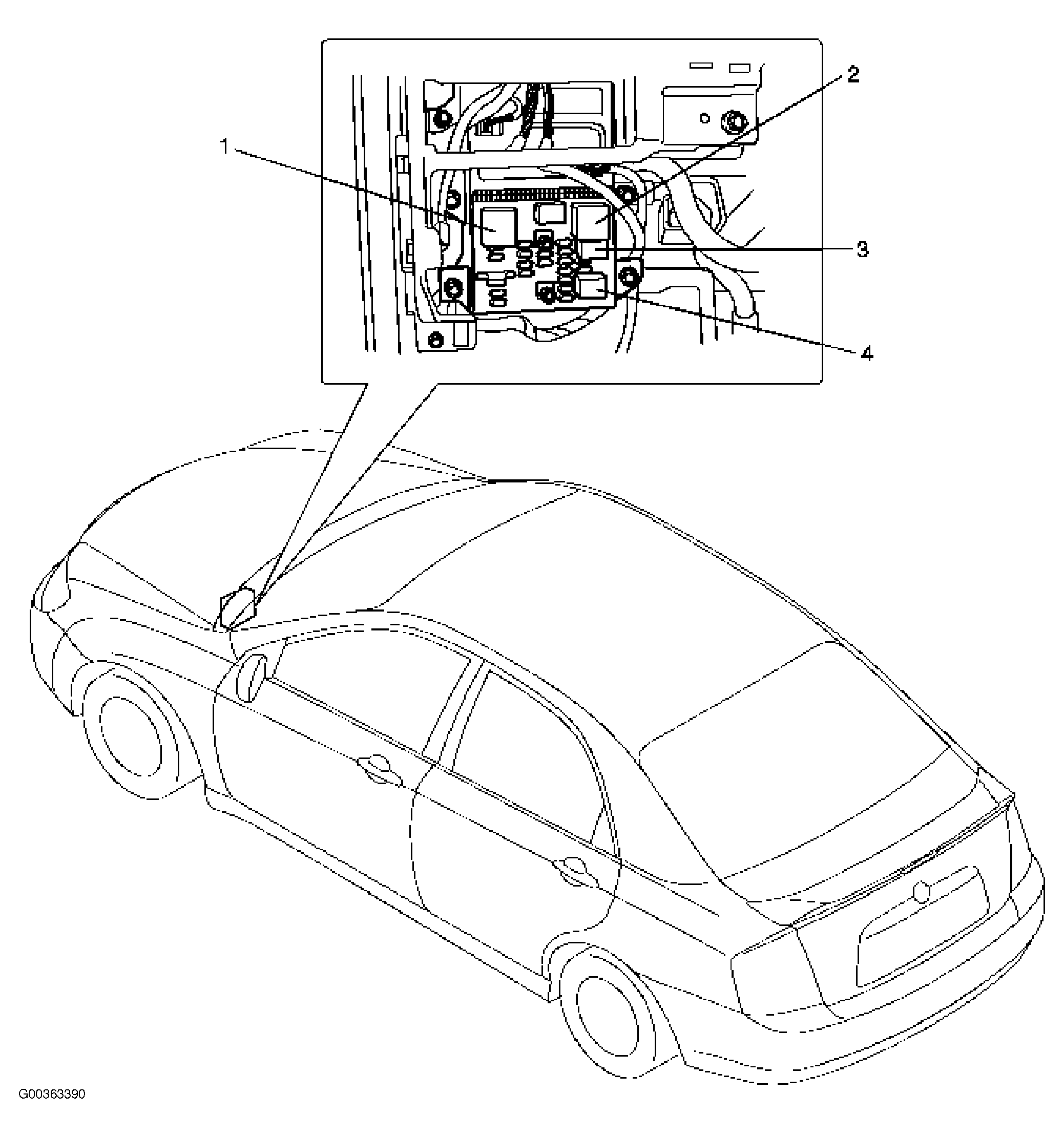

Instrument Panel Fuse Box	Under left side of dash. See Figure.
