Throttle Position Sensor (TPS)

Type: Variable resistor type

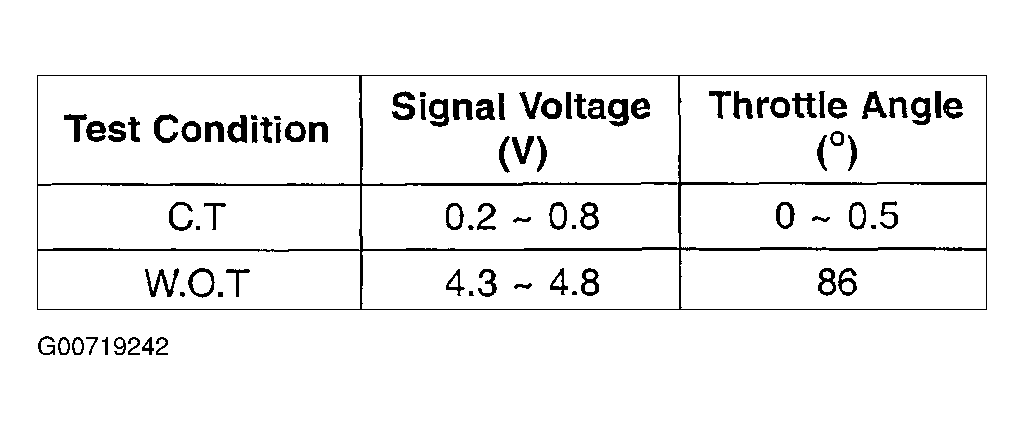

Fig 1: Throttle Position Sensor Voltage Specifications
G00719242Courtesy of KIA MOTORS AMERICA, INC.

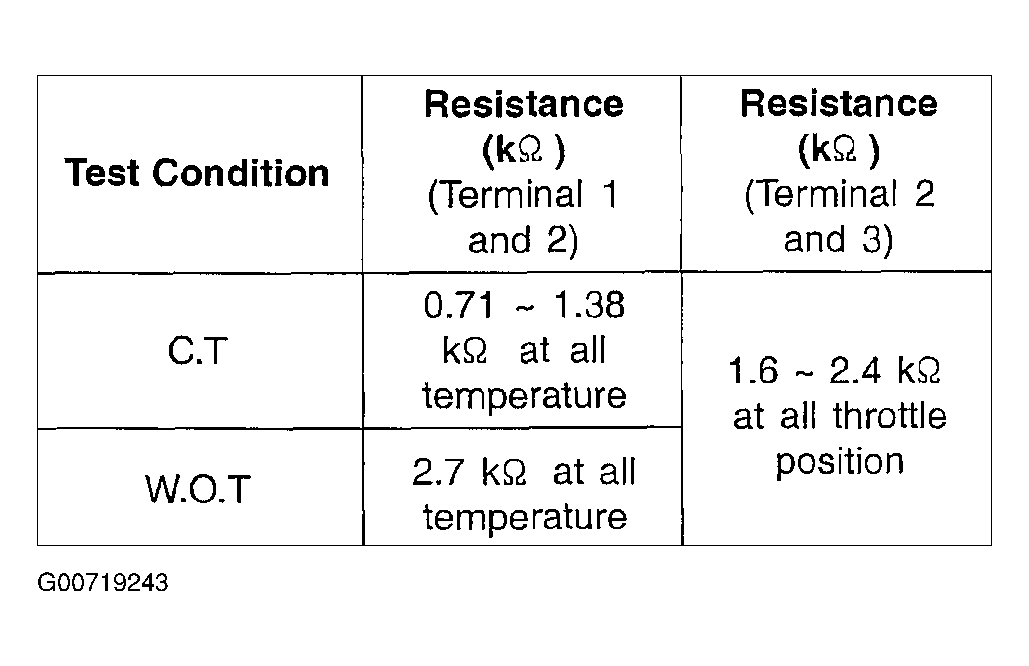

Fig 2: Throttle Position Sensor Resistance Specifications
G00719243Courtesy of KIA MOTORS AMERICA, INC.
