Home >> Kia >> 2005 >> Spectra5 2.0 1, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System/Fuel System - 2.0L >> General >> Symptom Troubleshooting Guide Chart

Symptom Troubleshooting Guide Chart

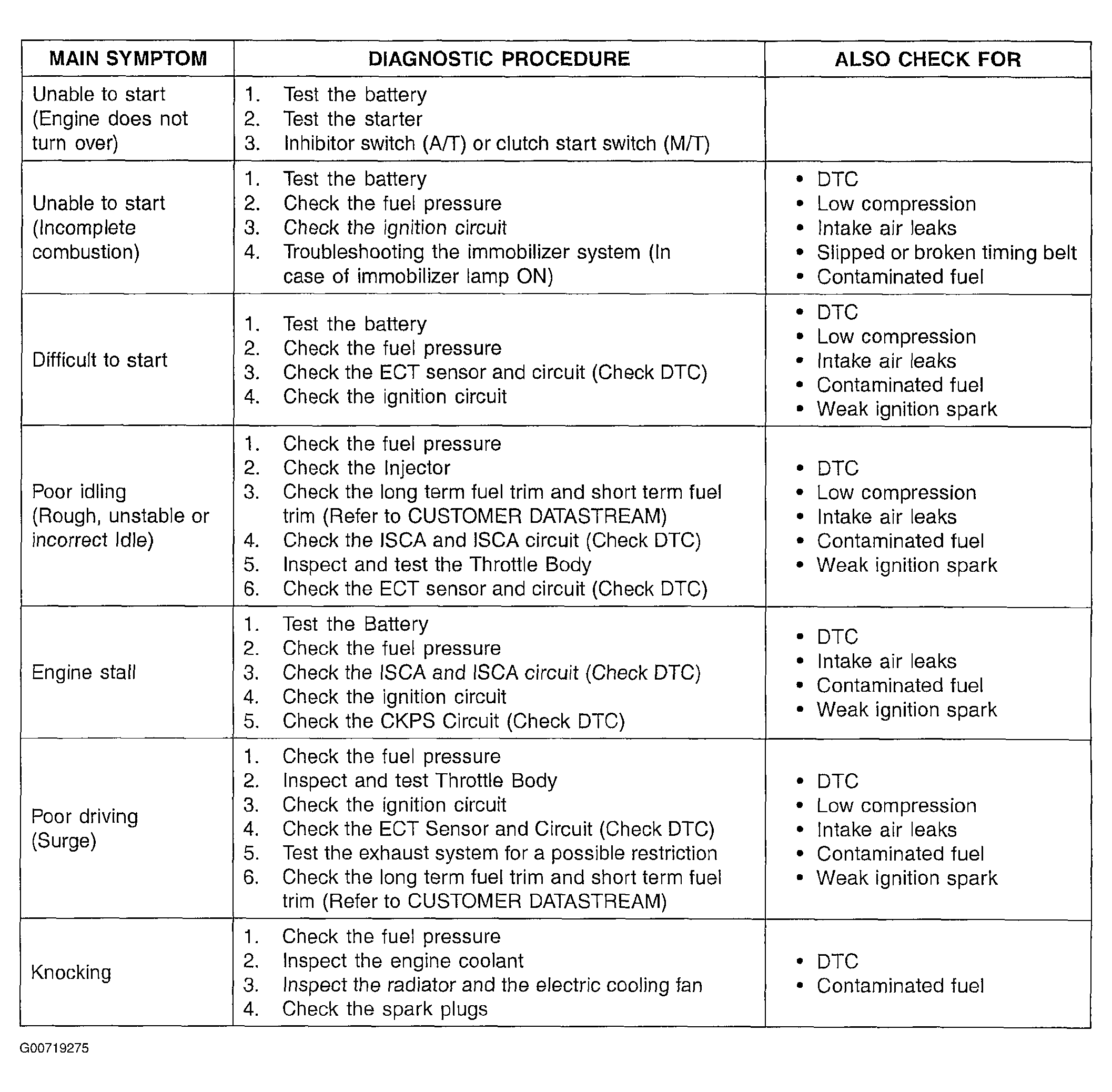

Fig 1: Symptom Troubleshooting Guide Chart (1 Of 2)
G00719275Courtesy of KIA MOTORS AMERICA, INC.

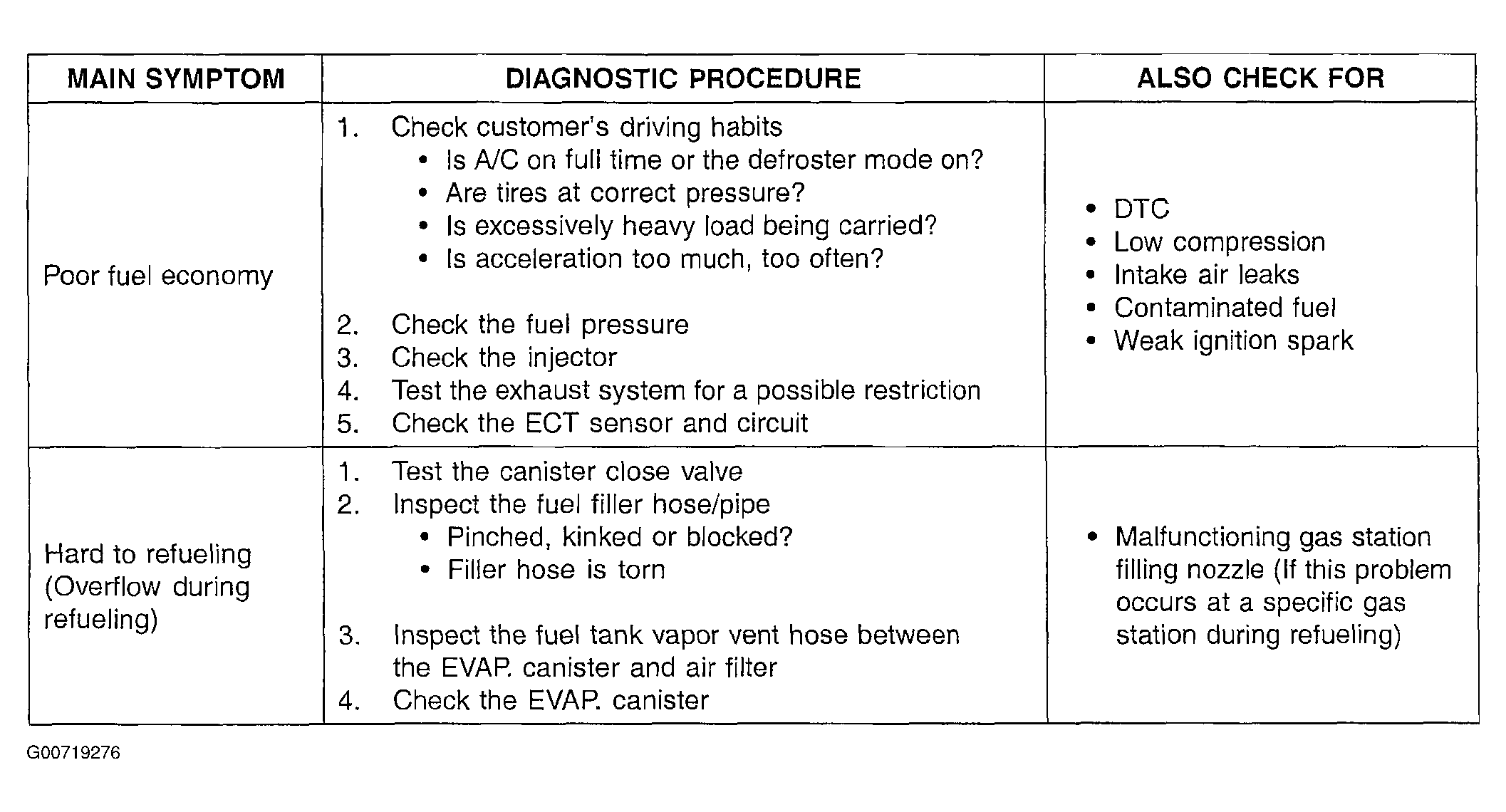

Fig 2: Symptom Troubleshooting Guide Chart (2 Of 2)
G00719276Courtesy of KIA MOTORS AMERICA, INC.
