Home >> Kia >> 2006 >> Amanti >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Differential >> Components

Automatic Transaxle: Differential: Components

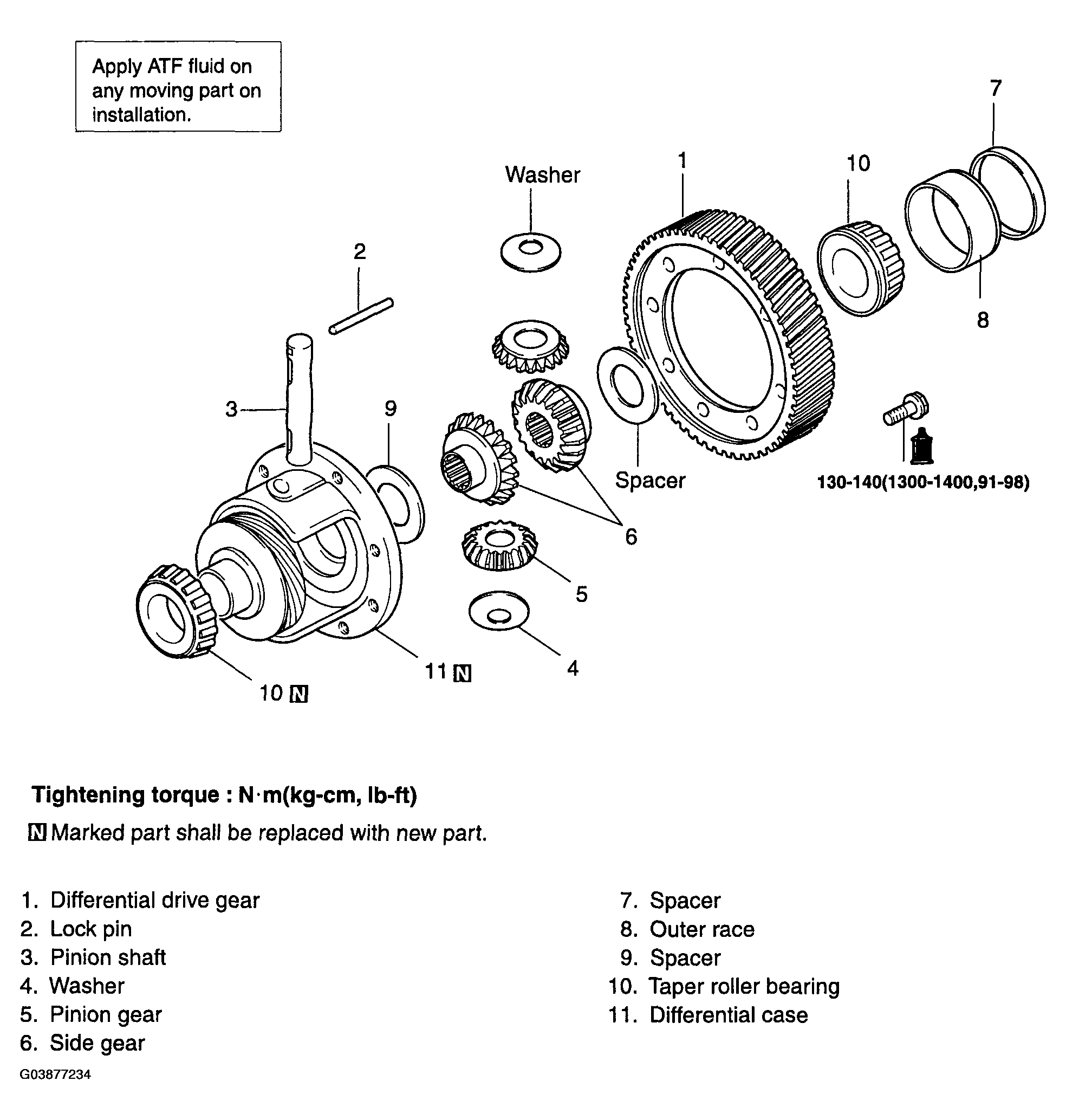

Fig 1: Exploded View Of Differential Components

G03877234

Courtesy of KIA MOTORS AMERICA, INC.
