Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Front Corner Of Vehicle

G00422540

Courtesy of KIA MOTORS AMERICA, INC.

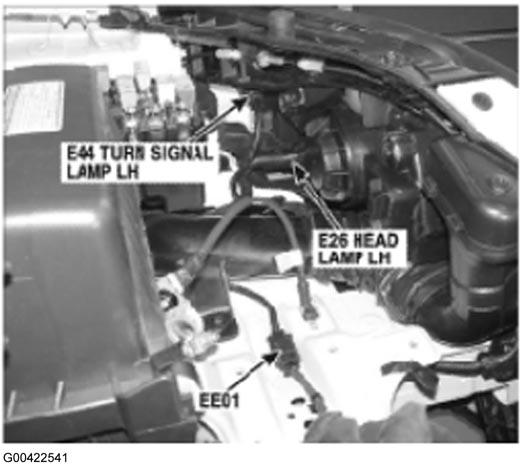

Fig 2: Left Front Corner Of Vehicle

G00422541

Courtesy of KIA MOTORS AMERICA, INC.

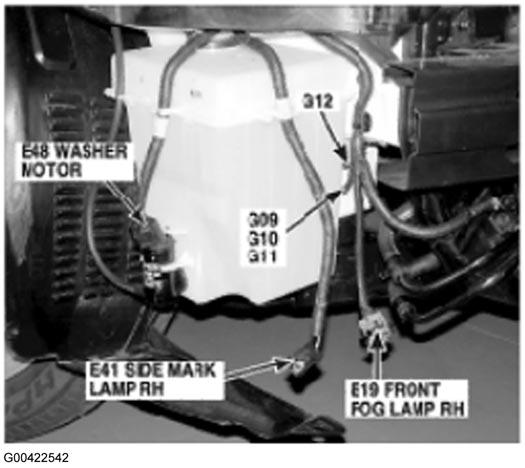

Fig 3: Right Front Of Engine Compartment

G00422542

Courtesy of KIA MOTORS AMERICA, INC.

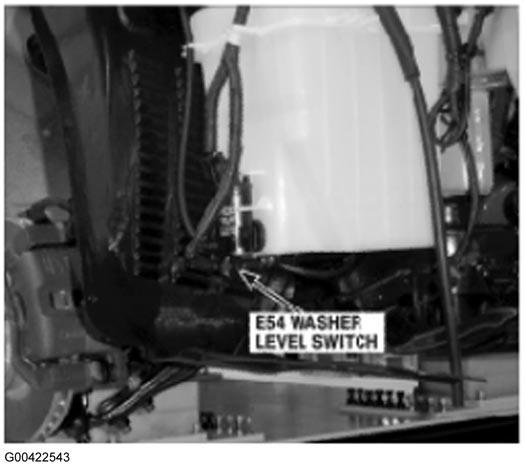

Fig 4: Right Front Of Engine Compartment

G00422543

Courtesy of KIA MOTORS AMERICA, INC.

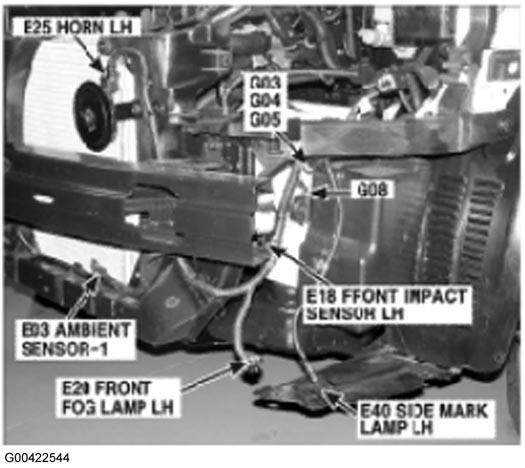

Fig 5: Left Front Of Engine Compartment

G00422544

Courtesy of KIA MOTORS AMERICA, INC.

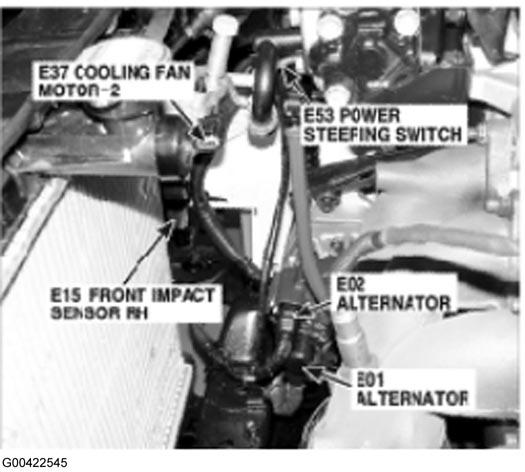

Fig 6: Right Front Of Engine Compartment

G00422545

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Left Rear Of Engine Compartment

G00422546

Courtesy of KIA MOTORS AMERICA, INC.

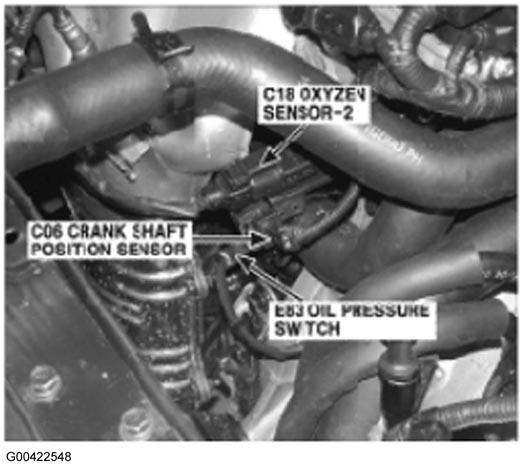

Fig 8: Top Of Engine

G00422548

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Top Of Transaxle

G00422549

Courtesy of KIA MOTORS AMERICA, INC.

Fig 10: Rear Of Engine

G00422550

Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Top Of Transaxle

G00422551

Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Top Of Transaxle

G00422552

Courtesy of KIA MOTORS AMERICA, INC.

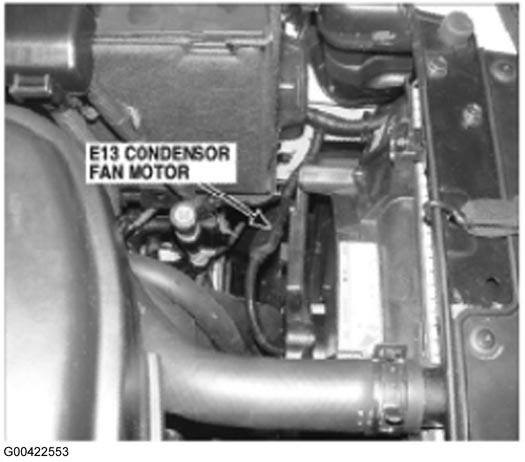

Fig 13: Front Of Engine Compartment

G00422553

Courtesy of KIA MOTORS AMERICA, INC.

Fig 14: Left Rear Of Engine Compartment

G00422554

Courtesy of KIA MOTORS AMERICA, INC.

Fig 15: Top Of Engine

G00422555

Courtesy of KIA MOTORS AMERICA, INC.

Fig 16: Right Rear Of Engine

G00422556

Courtesy of KIA MOTORS AMERICA, INC.

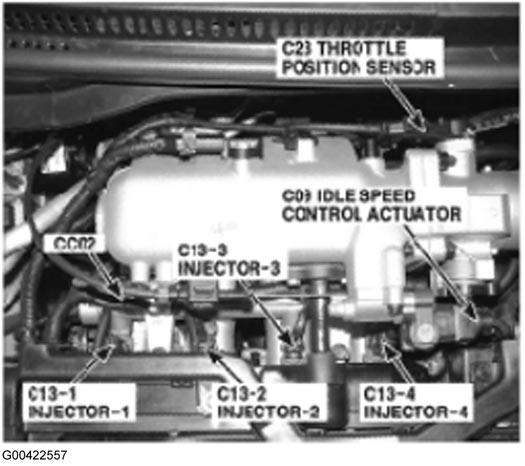

Fig 17: Top Of Engine

G00422557

Courtesy of KIA MOTORS AMERICA, INC.

Fig 18: Top Of Transaxle

G00422558

Courtesy of KIA MOTORS AMERICA, INC.

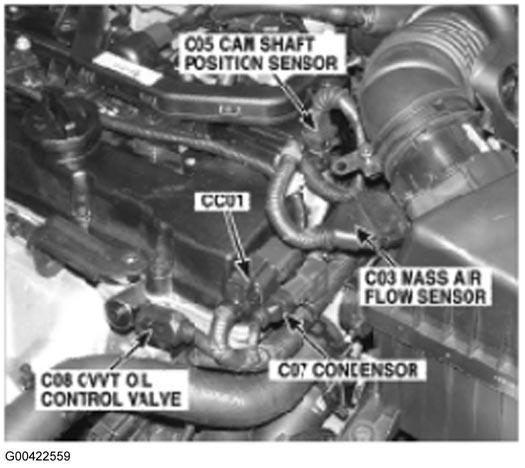

Fig 19: Top Rear Of Engine

G00422559

Courtesy of KIA MOTORS AMERICA, INC.

Fig 20: Right Side Of Engine Compartment

G00422560

Courtesy of KIA MOTORS AMERICA, INC.

Fig 21: Front Wheel Assemblies

G00422561

Courtesy of KIA MOTORS AMERICA, INC.

Fig 22: Under Left Side Of Dash

G00422563

Courtesy of KIA MOTORS AMERICA, INC.

Fig 23: Behind Instrument Cluster

G00422564

Courtesy of KIA MOTORS AMERICA, INC.

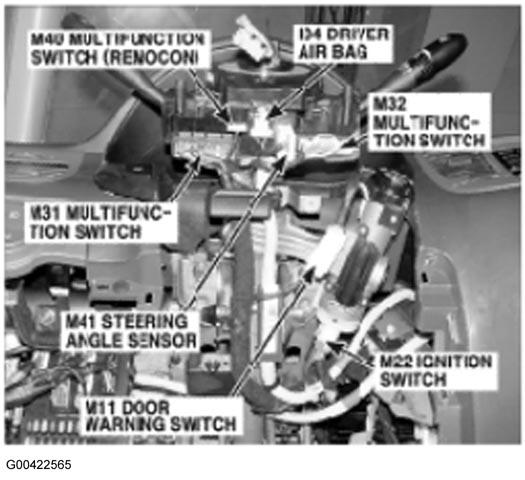

Fig 24: Steering Column

G00422565

Courtesy of KIA MOTORS AMERICA, INC.

Fig 25: Behind Center Of Dash

G00422566

Courtesy of KIA MOTORS AMERICA, INC.

Fig 26: Under Center Console

G00422567

Courtesy of KIA MOTORS AMERICA, INC.

Fig 27: Under Center Console

G00422568

Courtesy of KIA MOTORS AMERICA, INC.

Fig 28: Under Left Side Of Dash

G00422569

Courtesy of KIA MOTORS AMERICA, INC.

Fig 29: Under Left Side Of Dash

G00422570

Courtesy of KIA MOTORS AMERICA, INC.

Fig 30: Under Left Side Of Dash

G00422572

Courtesy of KIA MOTORS AMERICA, INC.

Fig 31: Under Right Side Of Dash

G00422573

Courtesy of KIA MOTORS AMERICA, INC.

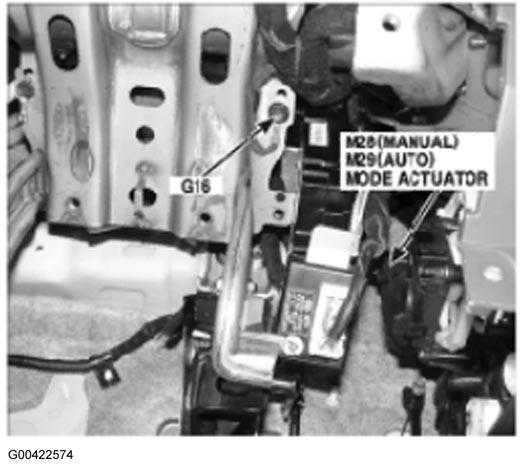

Fig 32: Under Center Of Dash

G00422574

Courtesy of KIA MOTORS AMERICA, INC.

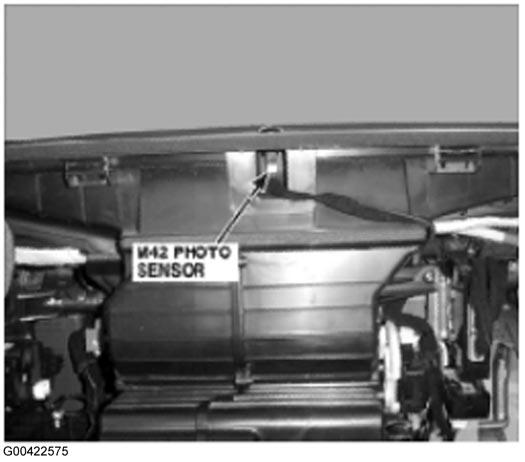

Fig 33: Behind Front Fascia

G00422575

Courtesy of KIA MOTORS AMERICA, INC.

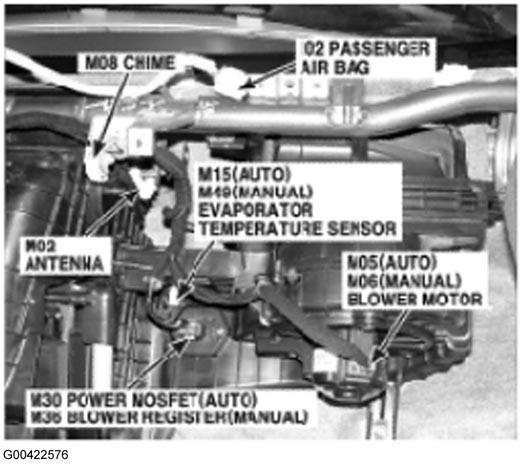

Fig 34: Behind Right Side Of Dash

G00422576

Courtesy of KIA MOTORS AMERICA, INC.

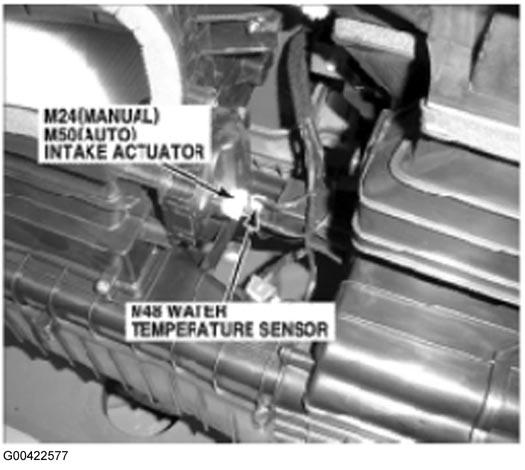

Fig 35: Behind Right Side Of Dash

G00422577

Courtesy of KIA MOTORS AMERICA, INC.

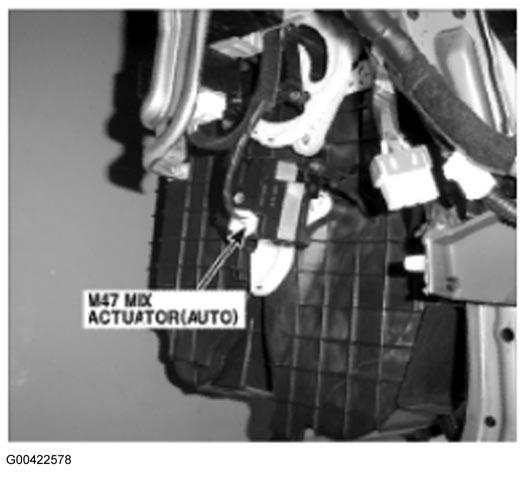

Fig 36: Under Center Of Dash

G00422578

Courtesy of KIA MOTORS AMERICA, INC.

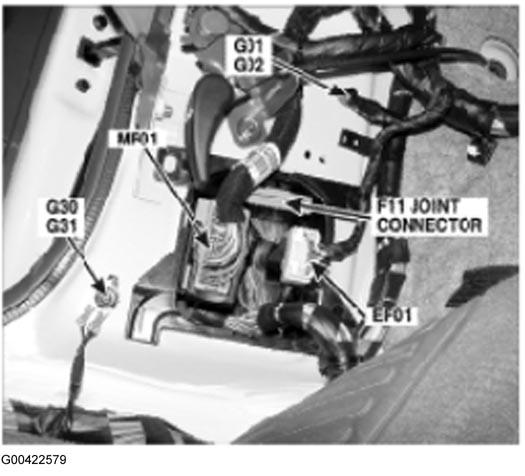

Fig 37: Left Kick Panel

G00422579

Courtesy of KIA MOTORS AMERICA, INC.

Fig 38: Right Kick Panel

G00422580

Courtesy of KIA MOTORS AMERICA, INC.

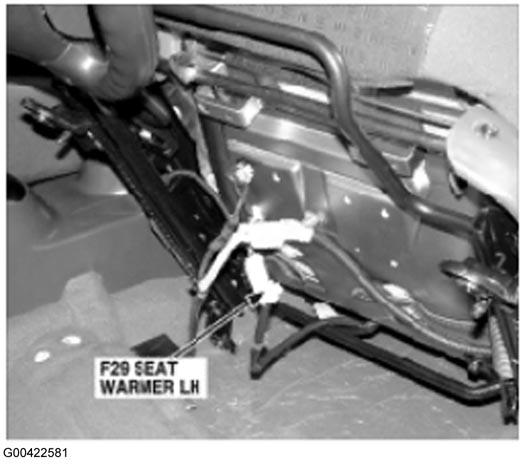

Fig 39: Driver's Seat

G00422581

Courtesy of KIA MOTORS AMERICA, INC.

Fig 40: Under Driver's Seat

G00422582

Courtesy of KIA MOTORS AMERICA, INC.

Fig 41: Front Passenger's Seat

G00422583

Courtesy of KIA MOTORS AMERICA, INC.

Fig 42: Under Front Passenger's Seat

G00422584

Courtesy of KIA MOTORS AMERICA, INC.

Fig 43: Left "B" Pillar

G00422585

Courtesy of KIA MOTORS AMERICA, INC.

Fig 44: Right "B" Pillar

G00422586

Courtesy of KIA MOTORS AMERICA, INC.

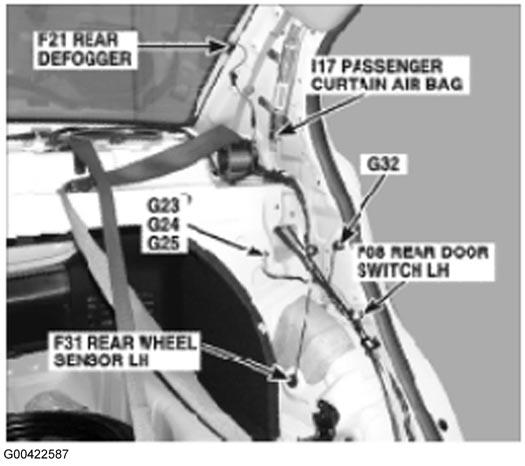

Fig 45: Left "C" Pillar & Rear Wheelwell (Sedan)

G00422587

Courtesy of KIA MOTORS AMERICA, INC.

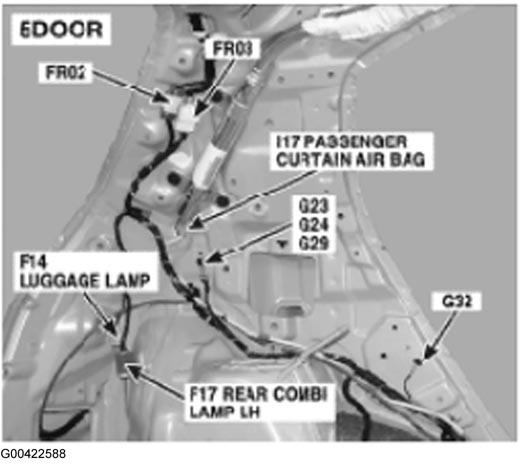

Fig 46: Left "C" Pillar (5 Door)

G00422588

Courtesy of KIA MOTORS AMERICA, INC.

Fig 47: Under Rear Seat

G00422589

Courtesy of KIA MOTORS AMERICA, INC.

Fig 48: Under Rear Of Vehicle

G00422590

Courtesy of KIA MOTORS AMERICA, INC.

Fig 49: Right "C" Pillar & Wheelwell (Sedan)

G00422591

Courtesy of KIA MOTORS AMERICA, INC.

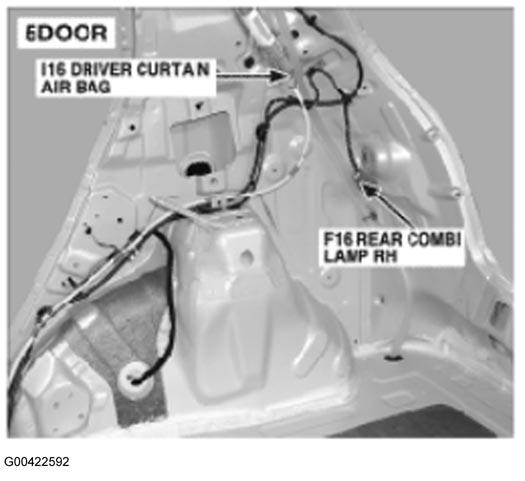

Fig 50: Right "C" Pillar (5 Door)

G00422592

Courtesy of KIA MOTORS AMERICA, INC.

Fig 51: Rear Of Luggage Compartment

G00422593

Courtesy of KIA MOTORS AMERICA, INC.

Fig 52: Roof

G00422594

Courtesy of KIA MOTORS AMERICA, INC.

Fig 53: Driver's Door

G00422595

Courtesy of KIA MOTORS AMERICA, INC.

Fig 54: Driver's Door

G00422596

Courtesy of KIA MOTORS AMERICA, INC.

Fig 55: Front Passenger's Door

G00422597

Courtesy of KIA MOTORS AMERICA, INC.

Fig 56: Front Passenger's Door

G00422598

Courtesy of KIA MOTORS AMERICA, INC.

Fig 57: Rear Doors (Right Shown)

G00422599

Courtesy of KIA MOTORS AMERICA, INC.

Fig 58: Tailgate

G00422600

Courtesy of KIA MOTORS AMERICA, INC.

Fig 59: Tailgate

G00422601

Courtesy of KIA MOTORS AMERICA, INC.

Fig 60: Behind Center Of Dash

G00422605

Courtesy of KIA MOTORS AMERICA, INC.

Fig 61: Behind Center Of Dash

G00422606

Courtesy of KIA MOTORS AMERICA, INC.
