Operation Sound Check

  1. Using a stethoscope, check the injectors for a clicking sound at idle. Check that the sound is produced at shorter intervals as the engine speed increases.
    NOTE: Ensure that the sound from an adjacent injector is not being transmitted along the delivery pipe to an inoperative injector.

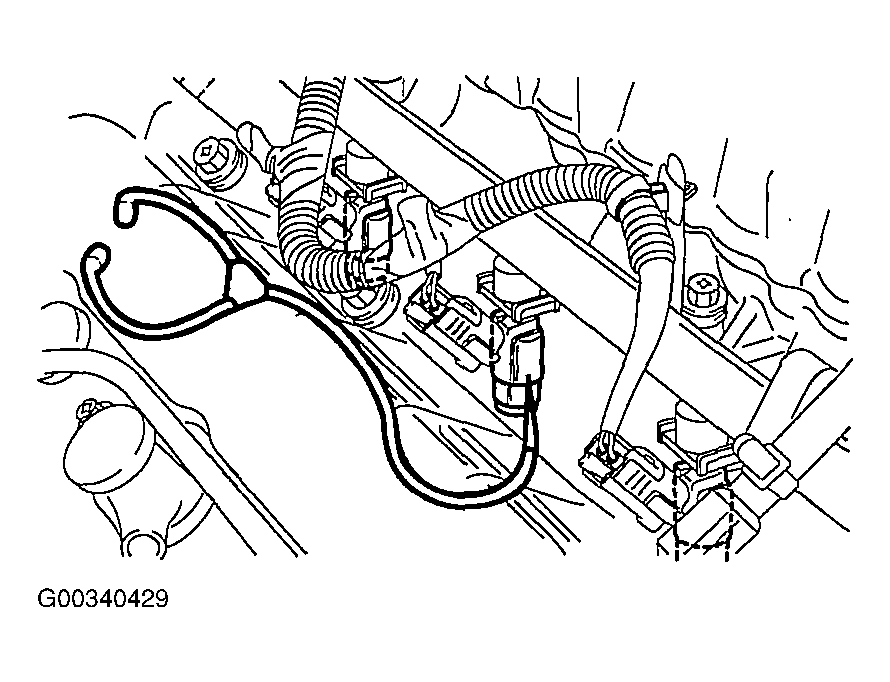

    Fig 1: Using A Stethoscope To Check For Injector Operation
    G00340429Courtesy of KIA MOTORS AMERICA, INC.
  2. If a stethoscope is not available, check the injector operation with your finger. If no vibration is felt, check the wiring connector, injector or injection signal from the ECU.

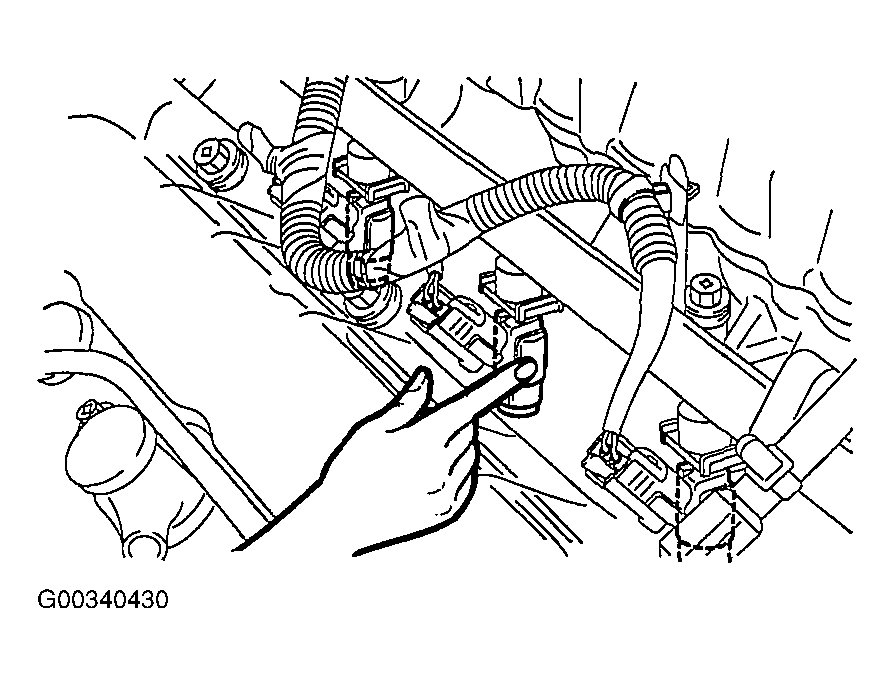

    Fig 2: Using A Finger To Check For Injector Operation
    G00340430Courtesy of KIA MOTORS AMERICA, INC.
