Ignition Coil: Notes

The ignition power transistor functions to control the ignition timing by controlling the ignition coil primary current through signals from the ECU.

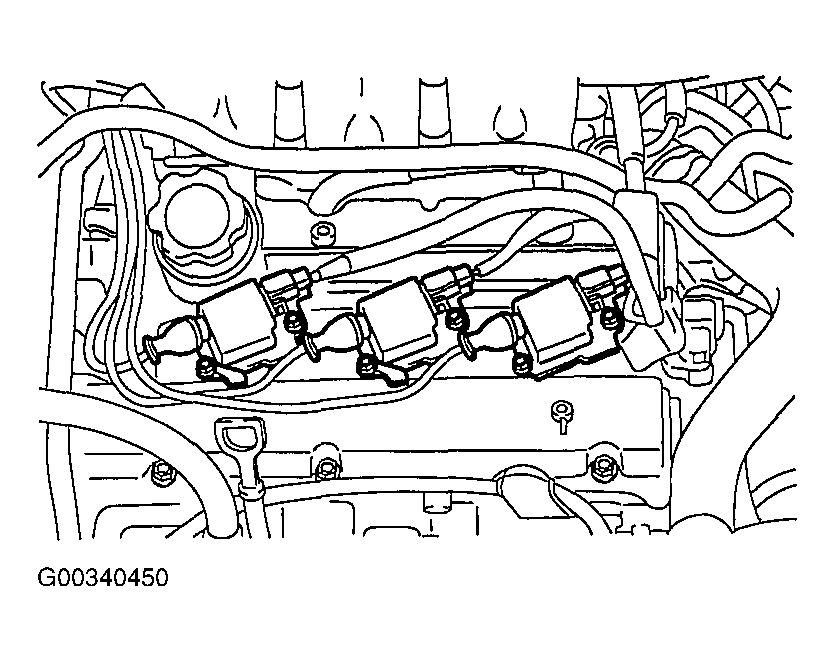

Fig 1: Identifying Ignition Coil Location

Courtesy of KIA MOTORS AMERICA, INC.
