Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | At right front of engine compartment. See Figure . |
| Auto Light Control Module | Behind center of dash. See Figure . |
| BCM | Integral to instrument panel (I/P) junction box. |

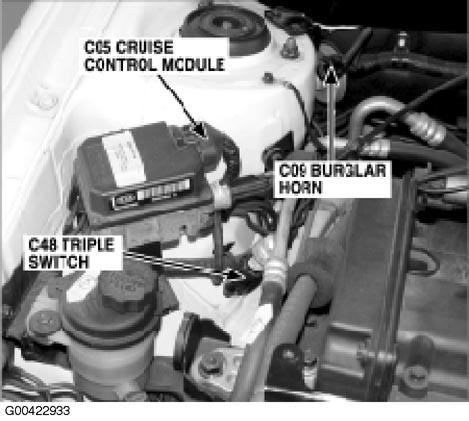

| Cruise Control Module | At right rear of engine compartment. See Figure . |
| ECM | Integral to instrument panel (I/P) junction box. |
| Immobilizer Control Module | At top left of steering column. See Figure . |

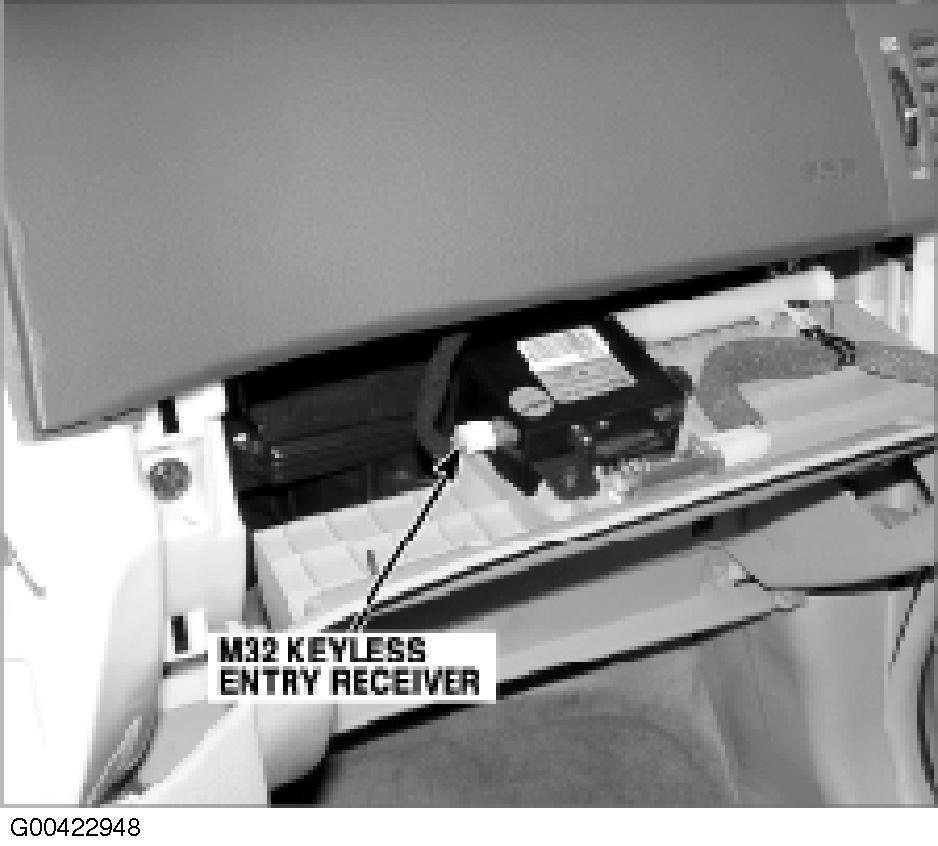

| Keyless Entry Receiver | Under glove compartment. See Figure . |

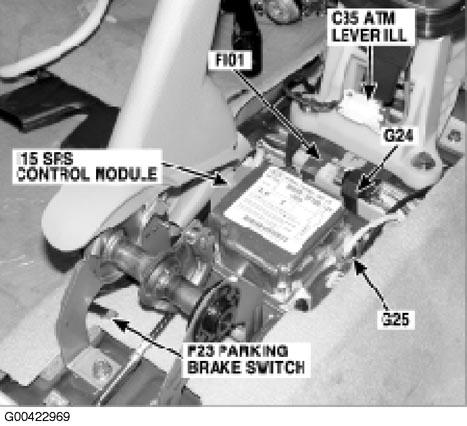

| SRS Control Module | Under center console. See Figure . |

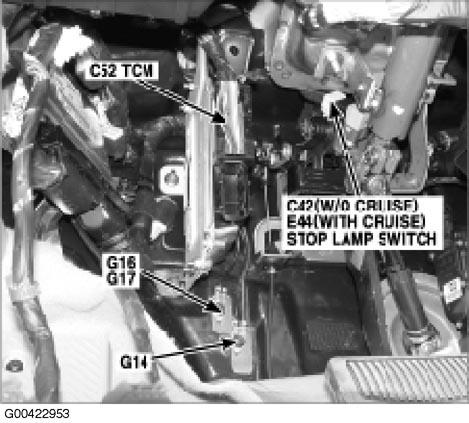

| TCM | Under left side of dash. See Figure . |
