Charging System: Alternator: Disassembly

If the front bearing needs replacing, remove the pulley with a hexagonal wrench.

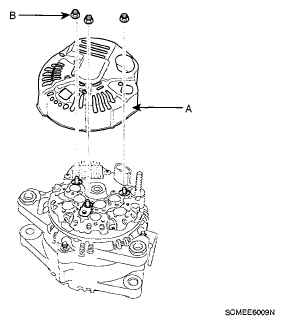

Remove the generator cover (A) after removing the three nuts (B).

Fig 1: Identifying Generator Cover And Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brush holder (A).

Fig 2: Identifying Brush Holder
Courtesy of KIA MOTORS AMERICA, INC.

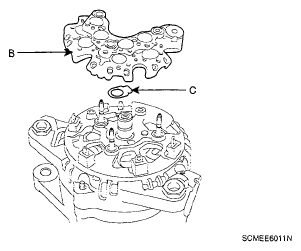

Remove the four screws, the rectifier (B) and the rubber seal (C).

Fig 3: Identifying Rectifier And Rubber Seal With Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the four nuts (A) and insulators (B).

Fig 4: Identifying Nuts
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Identifying Insulators
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear bracket assembly (A) and washer (B).

Fig 6: Identifying Rear Bracket Assembly And Washer
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rotor (A) from the stator and front frame assembly (B).

Fig 7: Identifying Rotor And Frame Assembly
Courtesy of KIA MOTORS AMERICA, INC.
