Output Specification

Watch and date
- Display range:
  Watch: 24 hour mode (00:00-23:59)

  Month: 01-12

  Date: 01-31
- Tolerance: +/-2 sec/day
- It is displayed all the time after ACC
- Mode is changed in the following sequence when the " DATE" button is pressed.
  HOUR --> MINUTE --> MONTH --> DATE
- Current reset mode is release when the " SET" button is pressed. Then, the second display starts with 0 again.
- If "Triangle " and " Triangle" button is not pressed within 10 seconds after "SET" button pressing, then the mode will be released.
- Letter ":" between hour and minute blinks all the time.
- Watch is set by the " DATE", " Triangle", " Triangle" and " SET" button operation.

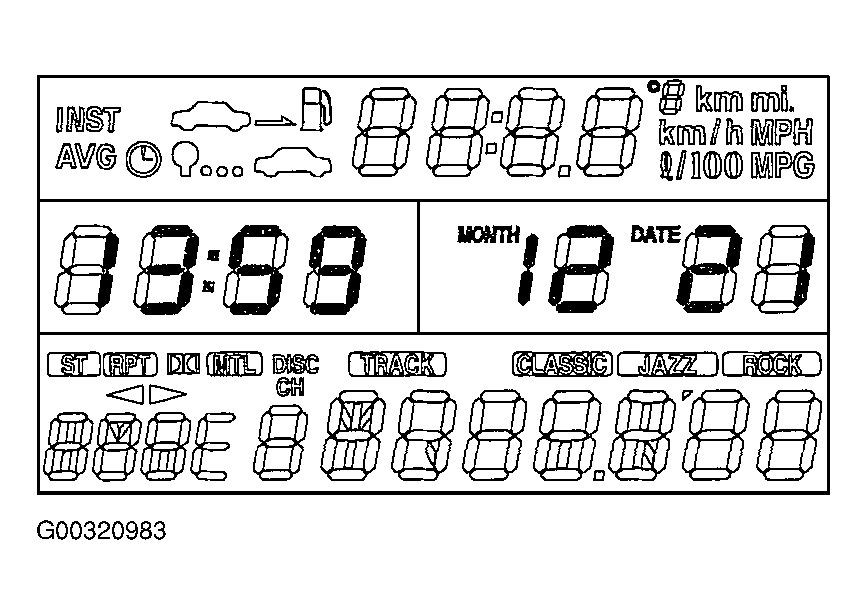

Fig 1: Illustrating Watch And Date Display
Courtesy of KIA MOTORS AMERICA, INC.

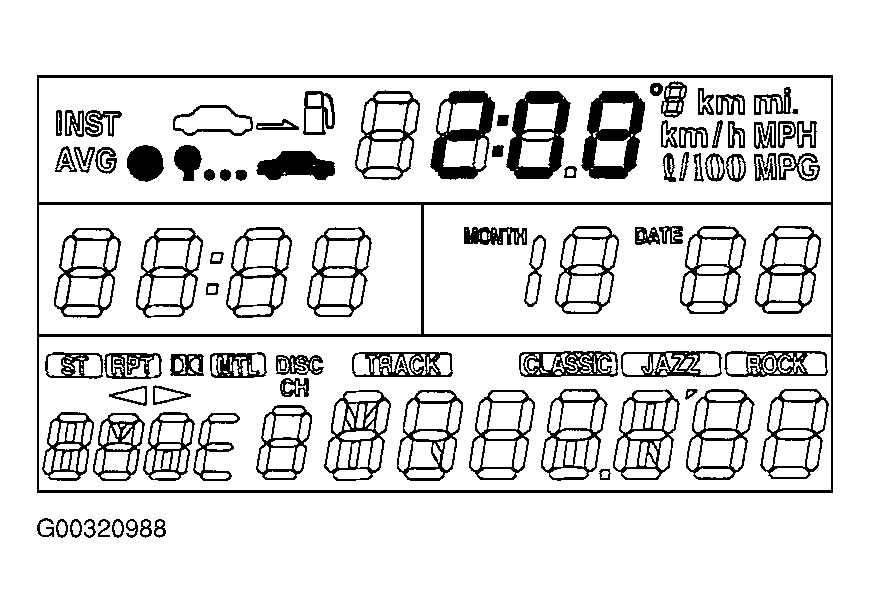

Distance to empty (DTE)
- Display range: 50 km -, 31 MILES -
- Tolerance: +/- 30 km, +/- 20 miles
- It displays the driving distance with the remaining fuel by applying the variable fuel consumption.
- Since the display is not operative before the ignition on, only " ---" is displayed.
- If DTE is less than 50 km, 31 miles, LCD displays " ---" mark on and off with the time interval of 0.5 sec. (Audio installed vehicle)
- DTE reduction in idle state (stopping at the traffic signal or temporary stopping) is based on the official fuel economy.

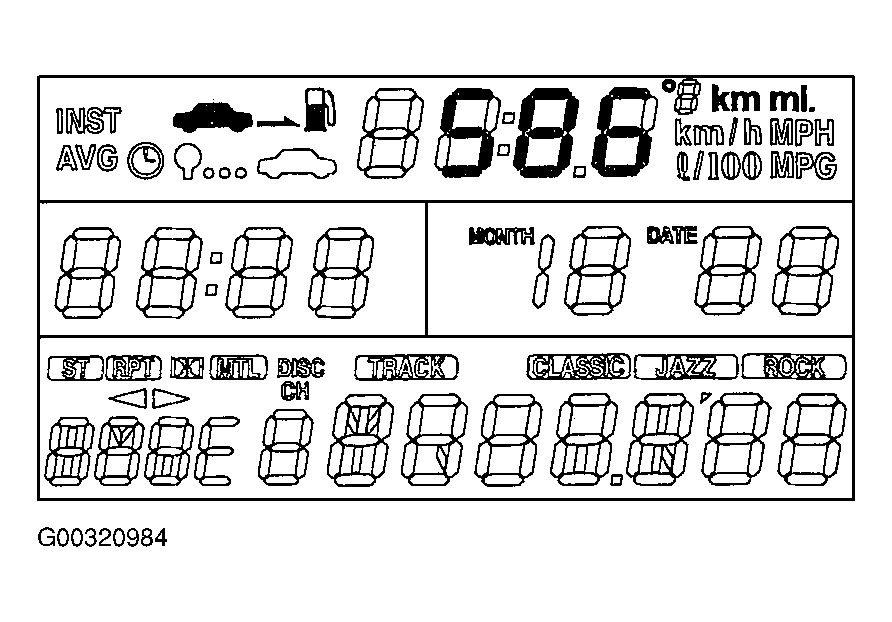

Fig 2: Illustrating Distance To Empty Display
Courtesy of KIA MOTORS AMERICA, INC.
Driving distance (DD)
- Display range: 0-999.9 km, 0-621.3 miles
- Resolution: 0.1 km, 0.1 mile
- Tolerance: +/- 1km/100km, +/- 2 miles/130 miles
- Since the vehicle speed is not provided before the ignition on, only " ---" is displayed.
- When the reset switch is turned on, accumulated driving distance is reset to 0
- Accumulated driving distance is on display until engine cut off and ACC off. And it displays the accumulated driving distance after engine start, and keeps accumulating thereafter.
  Accumulated driving distance remains even after ACC off.
- Driving distance = Accumulated No. of pulses of vehicle speed

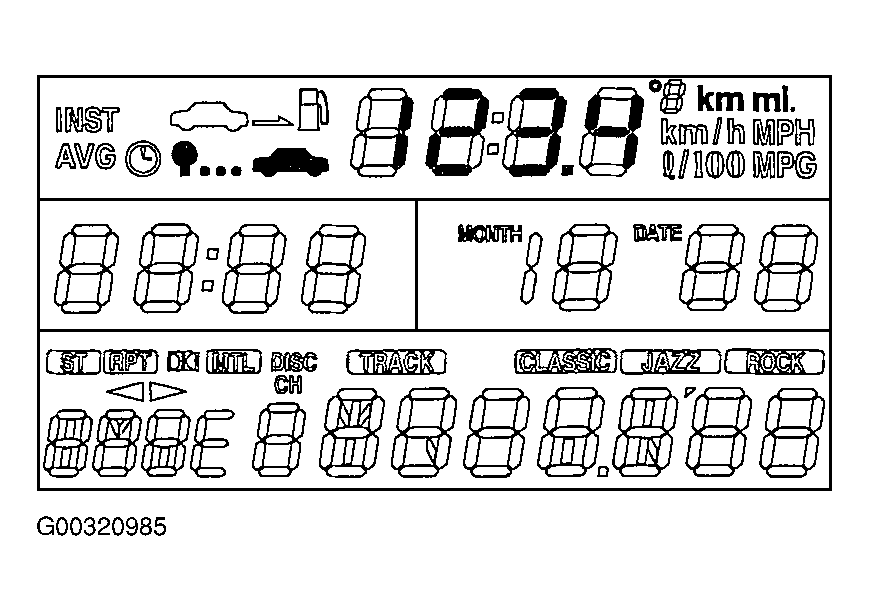

Fig 3: Illustrating Driving Distance Display
Courtesy of KIA MOTORS AMERICA, INC.
Average vehicle speed (AVS)
- Display range: 0-250 km/h, 0-120 MPH
- Tolerance: +/- 3 km/h, +/- 2 miles / 130 miles
- It starts calculating after 4-speed pulse from the ignition on.
- Upon ACC on, the last average speed is reset to zero.
- Upon restart, the previous average speed is reset to zero.
- Upon reset switch on, current accumulated value will be reset to zero.
- It displays average speed by calculating the accumulated speed from ignition on to ignition off.
- Speed display is updated every second.
- Average speed = Driving distance (accumulated) / driving time (accumulated)

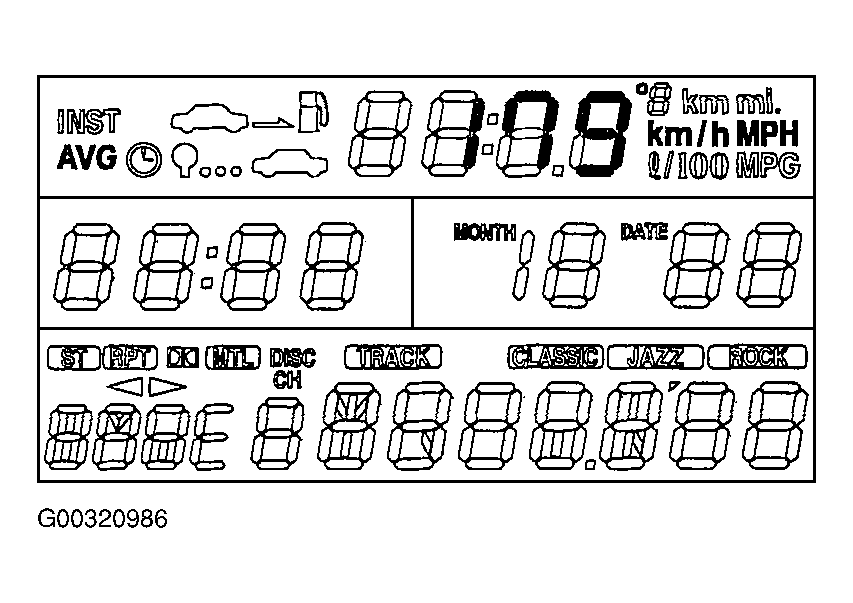

Fig 4: Illustrating Average Vehicle Speed Display
Courtesy of KIA MOTORS AMERICA, INC.
Driving time (DT)
- Display range: 00:00-99.59 hour
- Tolerance: 2 min/ 99 hour
- It starts calculating after 4-speed pulse from the ignition on.
- Upon reset switch on, current accumulated value will be reset to zero.
- It displays " ---" before the ignition on because there is speed input.
- It displays driving time by calculating the accumulated distance from ignition on to ignition off. Driving time remains unchanged even after the ACC off. And it revives the existing value and keeps accumulating.
Fig 5: Illustrating Driving Time Display
Courtesy of KIA MOTORS AMERICA, INC.
Ambient temperature (AT)
- Display range: -40.0 to 80.0 °C, 0-176°F
- Resolution: 0.5°C, 0.5°F
- Tolerance: +/- 3°C, +/- 5°F
- Reset switch converts Fahrenheit to centigrade vice versa. It displays the average temperature for 1 second using the ambient temperature sensor installed on the vehicle. Temperature display increases at 0.5 °C per 90 seconds and decreases at 0.5 °C per 2 seconds
- Temperature display does not increase if the vehicle speed is below 10 km/h. (Though, temperature display decreases regardless of vehicle speed)
- It displays -40 °C if the temperature is below -40 °C, and displays 80 °C if the temperature is above 80 °C.
- It displays " ---" before the ignition on because sensor is not operating.

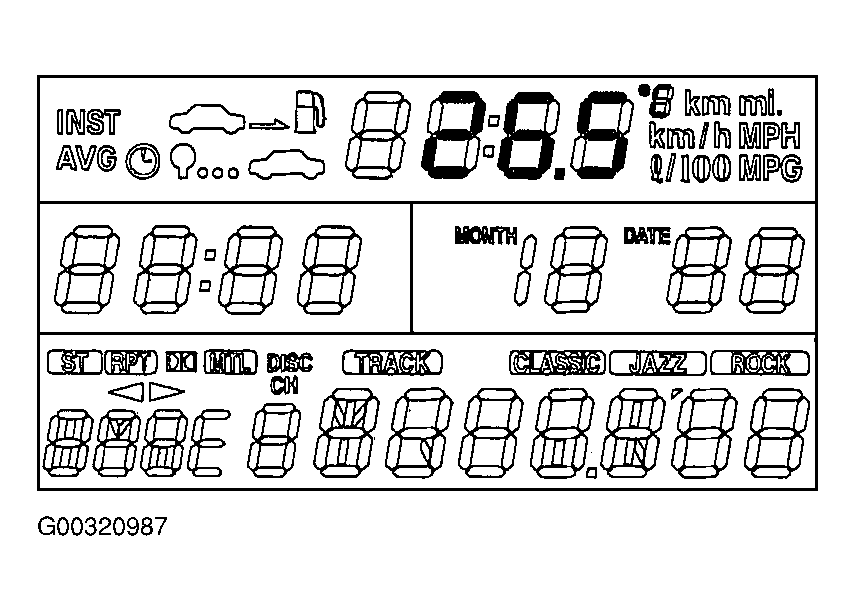

Fig 6: Illustrating Ambient Temperature Display
Courtesy of KIA MOTORS AMERICA, INC.
Average fuel consumption (AFC)
- Display range: 0-20 l /100 km, 0-9 MPG
- Tolerance: +/-1 l /100 km, +/- 0.5 MPG
- It starts calculating after 4-speed pulse from the ignition on.
- It starts displaying AFC information after driving 500m.
- It displays the information by calculating the cumulative driving distance and fuel injection from ignition on to ignition off. And it keeps the previous average fuel economy information even after the ACC off.
- Accumulated data is reset to zero if the RESET button is pressed.
- It displays " ---" before the ignition on because sensor is not operating.
- Average fuel consumption = injector injection amount / driving distance

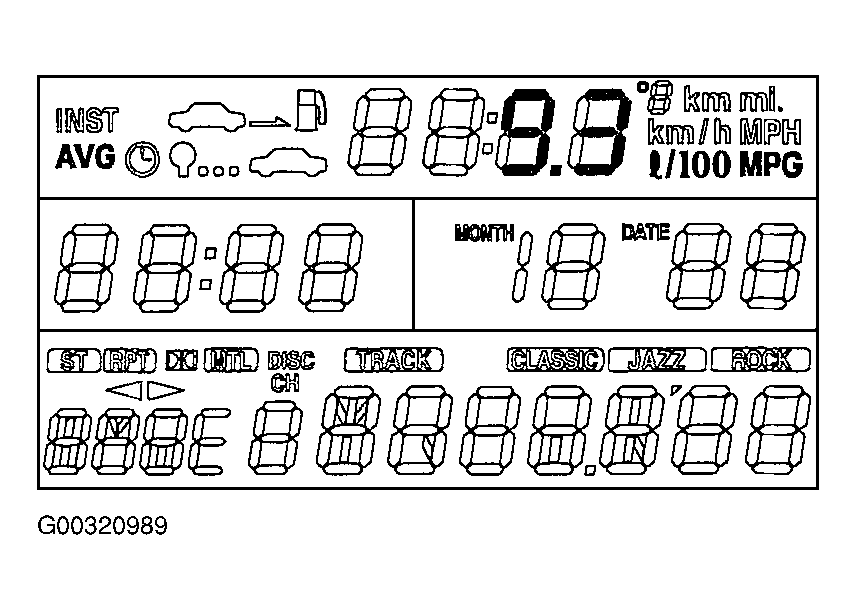

Fig 7: Illustrating Average Fuel Consumption Display
Courtesy of KIA MOTORS AMERICA, INC.
Momentary fuel consumption (MFC)
- Display range: 0-50 l /100 km, 0-23 MPG
- Tolerance: +/-1 l /100 km, +/- 0.5 MPG
- It starts calculating after 4-speed pulse from the ignition on.
- It displays the information by calculating the cumulative driving distance and fuel injection for every 0.5 second.
- It displays " ---" before the ignition on because sensor is not operating.
- When the speed = 0 km/h and ENG = ON, it displays " ---". Besides, it displays " ---" (in MPG), if there is no fuel consumption while driving.
- Momentary fuel consumption = injector injection amount / driving distance

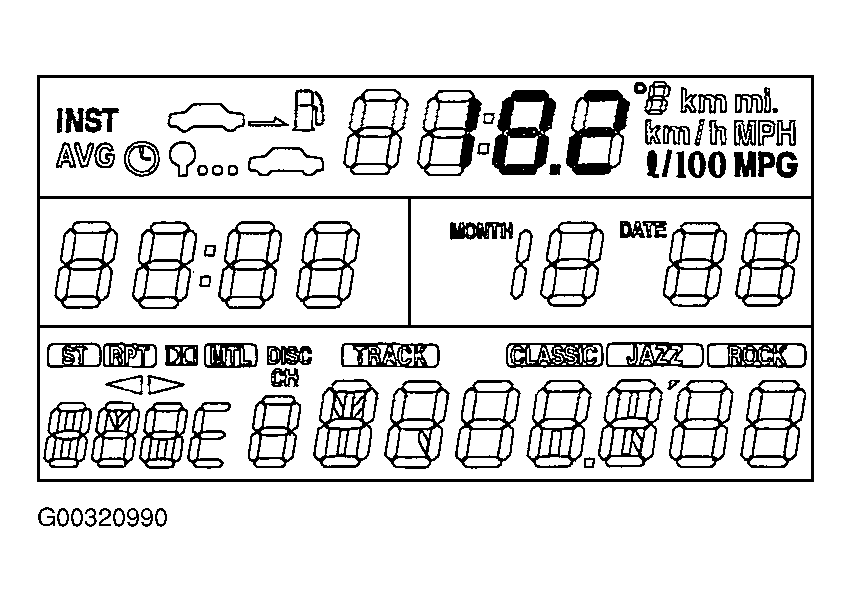

Fig 8: Illustrating Momentary Fuel Consumption Display
