Ignition Switch: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver lower crash pad panel (A) and shroud lower panel (B).

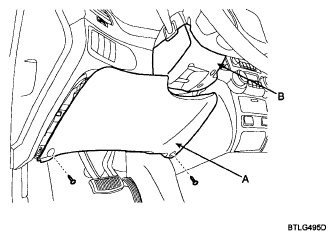

    Fig 1: Identifying Driver Lower Crash Pad Panel
    G04806706Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the 6P connector (A).

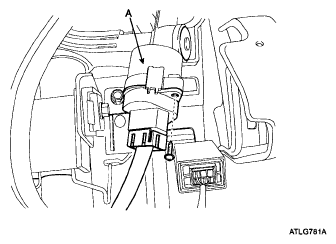

    Fig 2: Identifying 6P Connector
    G04806707Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the steering column shaft (Refer to the STEERING COLUMN ).
  5. Remove the key warning switch and key illumination lamp (A) after loosening the screws and disconnecting the 6P connector (B).

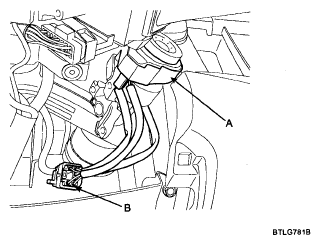

    Fig 3: Identifying Key Illumination Lamp And 6P Connector
    G04806708Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the key lock cylinder (A) after pushing lock pin (B) with key ACC if necessary.

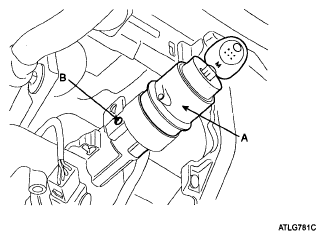

    Fig 4: Identifying Key Lock Cylinder And Lock Pin
    G04806709Courtesy of KIA MOTORS AMERICA, INC.
  7. Installation is the reverse of removal procedure.
