Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references

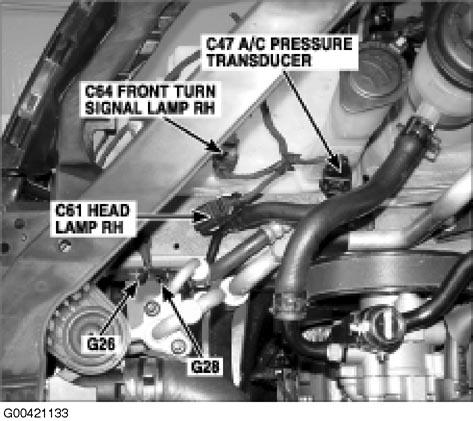

Fig 1: Right Side Of Engine Compartment

G00421133

Courtesy of KIA MOTORS AMERICA, INC.

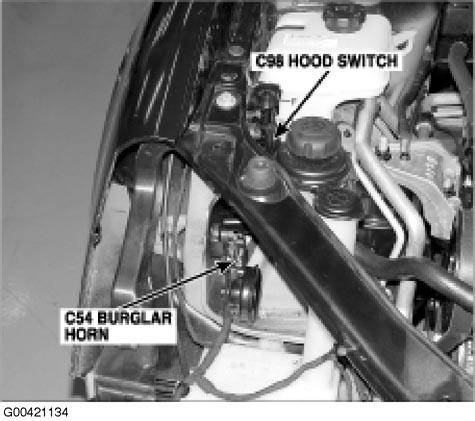

Fig 2: Right Front Of Engine Compartment

G00421134

Courtesy of KIA MOTORS AMERICA, INC.

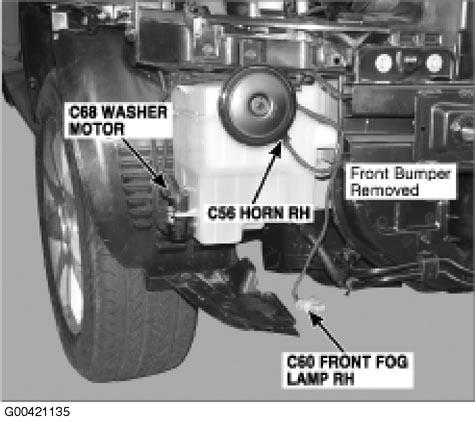

Fig 3: Right Front Of Engine Compartment

G00421135

Courtesy of KIA MOTORS AMERICA, INC.

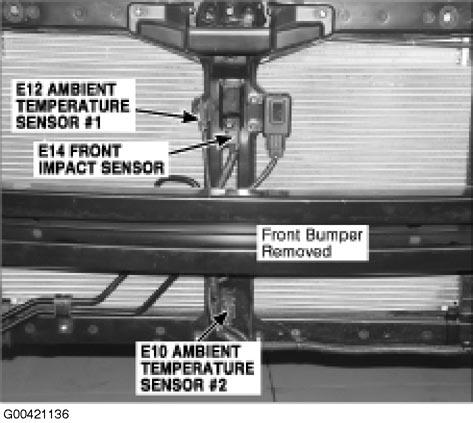

Fig 4: Radiator Support

G00421136

Courtesy of KIA MOTORS AMERICA, INC.

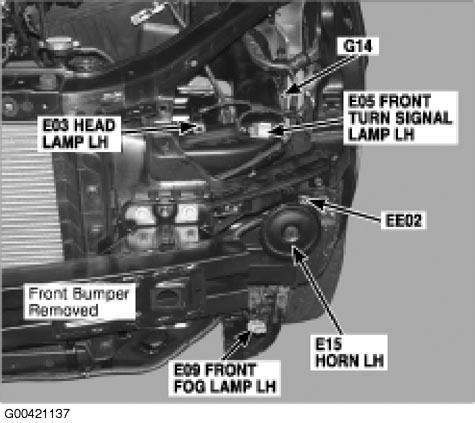

Fig 5: Left Front Of Engine Compartment

G00421137

Courtesy of KIA MOTORS AMERICA, INC.

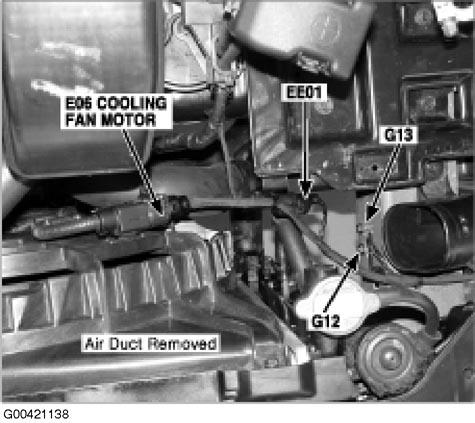

Fig 6: Front Of Engine Compartment

G00421138

Courtesy of KIA MOTORS AMERICA, INC.

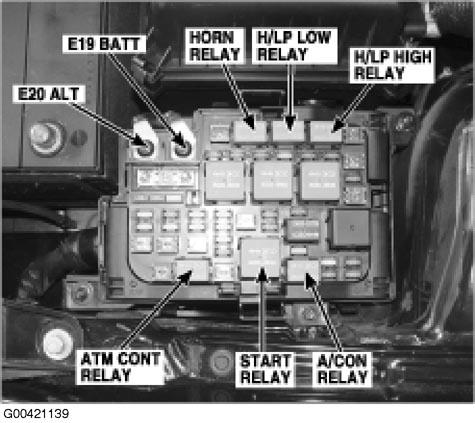

Fig 7: Engine Room Junction Box

G00421139

Courtesy of KIA MOTORS AMERICA, INC.

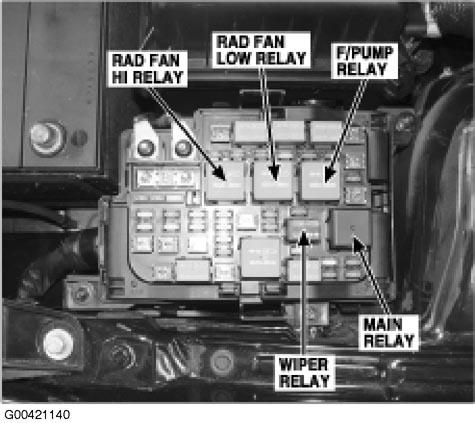

Fig 8: Engine Room Junction Box

G00421140

Courtesy of KIA MOTORS AMERICA, INC.

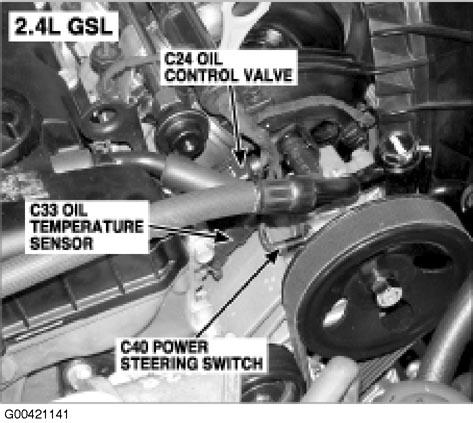

Fig 9: Left Front Of Engine (2.4L)

G00421141

Courtesy of KIA MOTORS AMERICA, INC.

Fig 10: Intake Manifold (2.4L)

G00421142

Courtesy of KIA MOTORS AMERICA, INC.

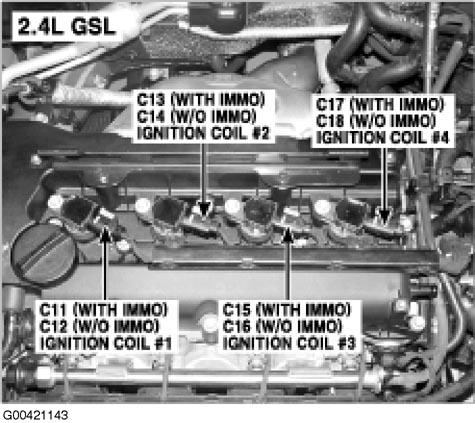

Fig 11: Top Of Engine (2.4L)

G00421143

Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Top Of Engine (2.4L)

G00421144

Courtesy of KIA MOTORS AMERICA, INC.

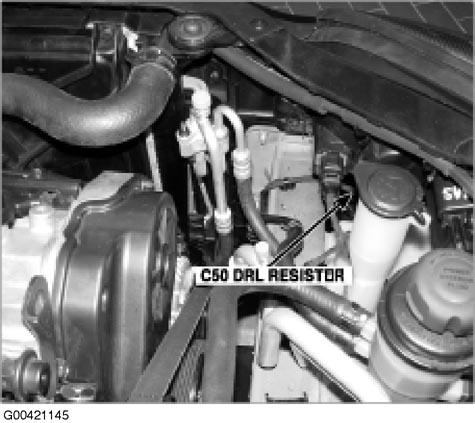

Fig 13: Right Side Of Engine Compartment

G00421145

Courtesy of KIA MOTORS AMERICA, INC.

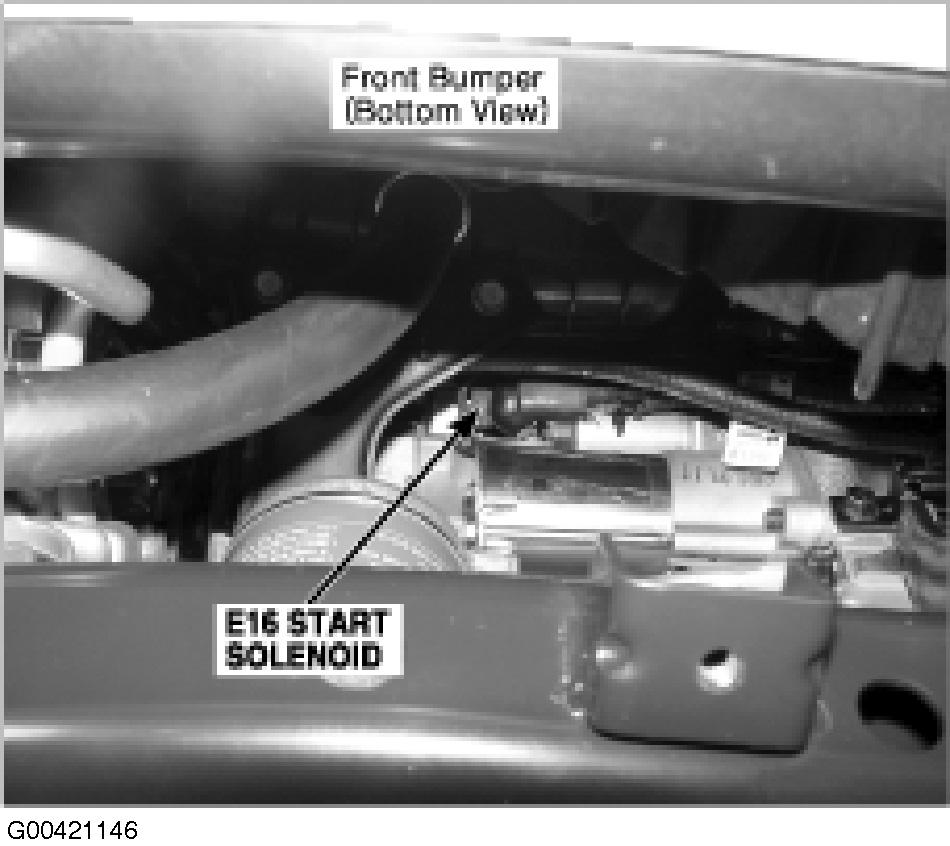

Fig 14: Behind Front Bumper (Bottom View)

G00421146

Courtesy of KIA MOTORS AMERICA, INC.

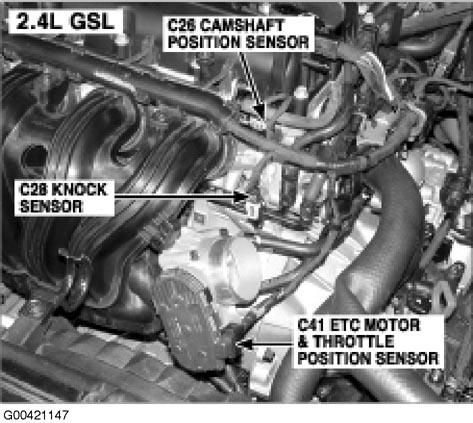

Fig 15: Top Rear Of Engine (2.4L)

G00421147

Courtesy of KIA MOTORS AMERICA, INC.

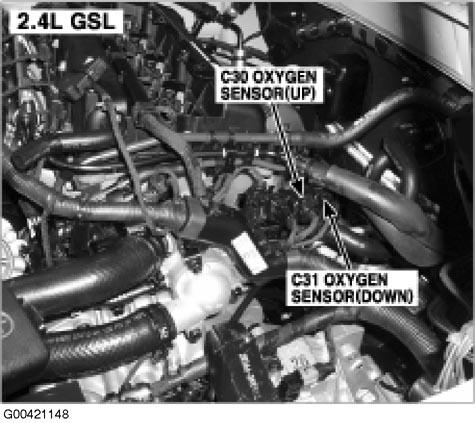

Fig 16: Rear Of Engine (2.4L)

G00421148

Courtesy of KIA MOTORS AMERICA, INC.

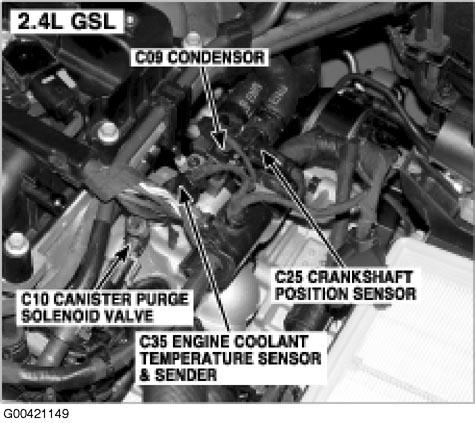

Fig 17: Rear Of Cylinder Head (2.4L)

G00421149

Courtesy of KIA MOTORS AMERICA, INC.

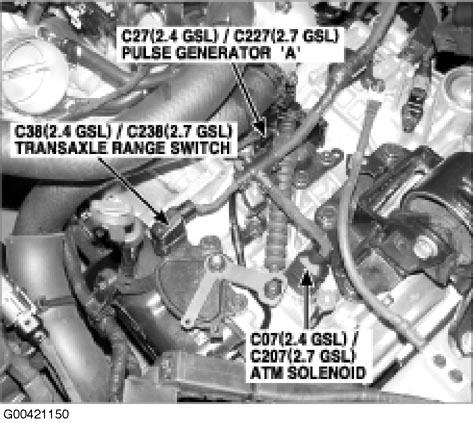

Fig 18: Top Of Transaxle (2.4L)

G00421150

Courtesy of KIA MOTORS AMERICA, INC.

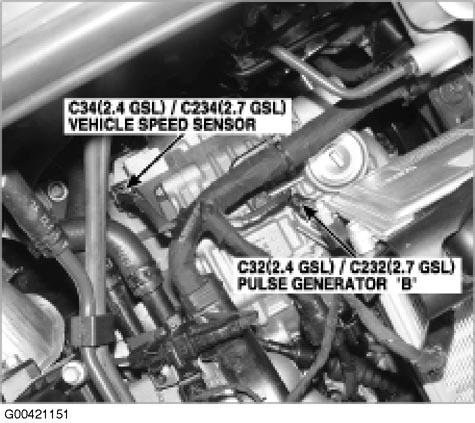

Fig 19: Top Of Transaxle (2.4L)

G00421151

Courtesy of KIA MOTORS AMERICA, INC.

Fig 20: Top Of Transaxle

G00421152

Courtesy of KIA MOTORS AMERICA, INC.

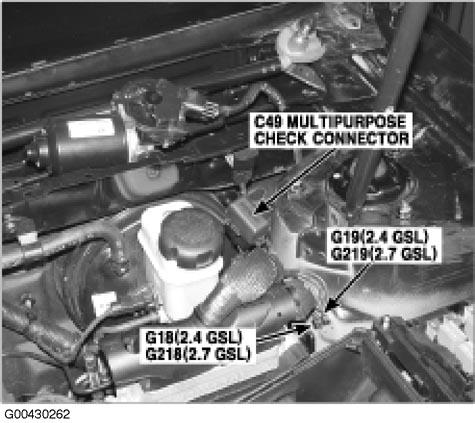

Fig 21: Rear Of Engine Compartment

G00430262

Courtesy of KIA MOTORS AMERICA, INC.

Fig 22: Rear Of Engine Compartment

G00430263

Courtesy of KIA MOTORS AMERICA, INC.

Fig 23: Rear Of Engine Compartment

G00430264

Courtesy of KIA MOTORS AMERICA, INC.

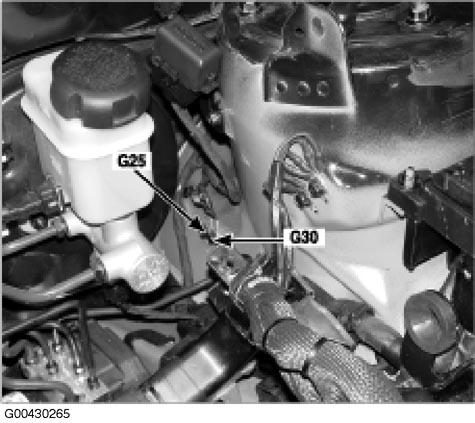

Fig 24: Rear Of Engine Compartment

G00430265

Courtesy of KIA MOTORS AMERICA, INC.

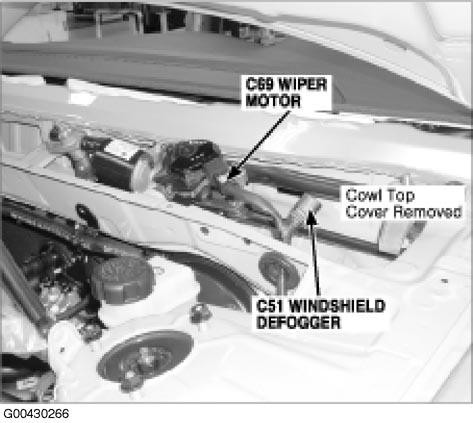

Fig 25: Firewall

G00430266

Courtesy of KIA MOTORS AMERICA, INC.

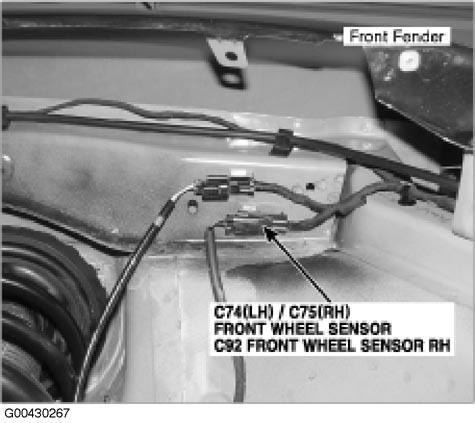

Fig 26: Front Fender

G00430267

Courtesy of KIA MOTORS AMERICA, INC.

Fig 27: Dash

G00430268

Courtesy of KIA MOTORS AMERICA, INC.

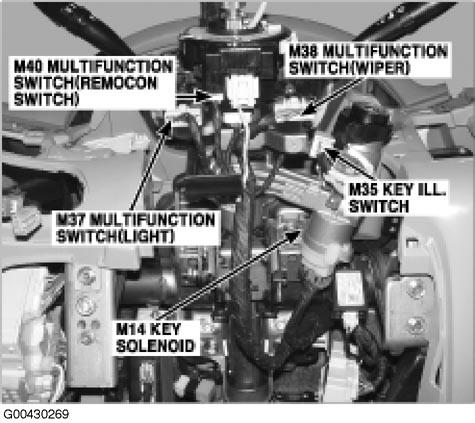

Fig 28: Steering Column

G00430269

Courtesy of KIA MOTORS AMERICA, INC.

Fig 29: Steering Column

G00430270

Courtesy of KIA MOTORS AMERICA, INC.

Fig 30: Dash

G00430271

Courtesy of KIA MOTORS AMERICA, INC.

Fig 31: Dash

G00430272

Courtesy of KIA MOTORS AMERICA, INC.

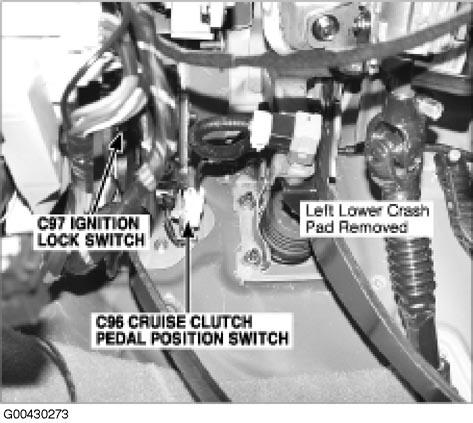

Fig 32: Dash

G00430273

Courtesy of KIA MOTORS AMERICA, INC.

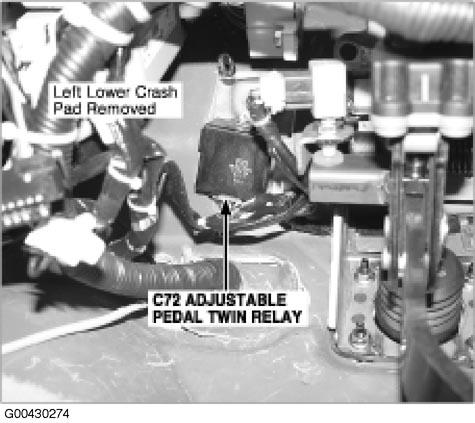

Fig 33: Dash

G00430274

Courtesy of KIA MOTORS AMERICA, INC.

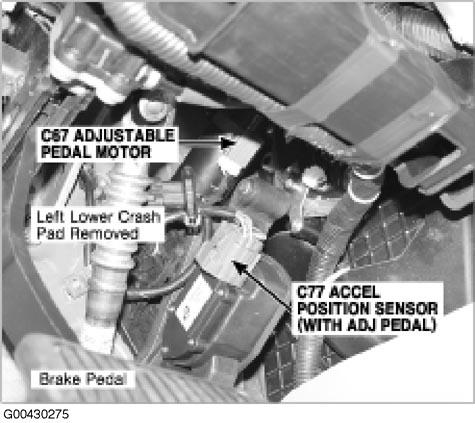

Fig 34: Dash

G00430275

Courtesy of KIA MOTORS AMERICA, INC.

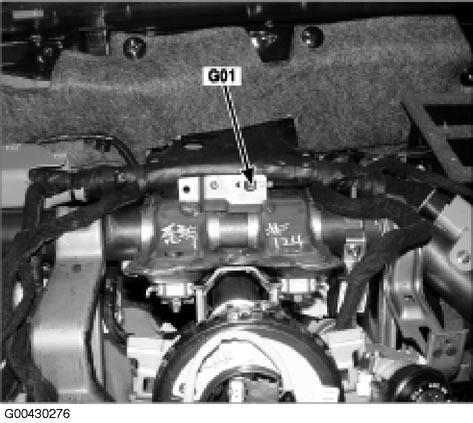

Fig 35: Steering Column

G00430276

Courtesy of KIA MOTORS AMERICA, INC.

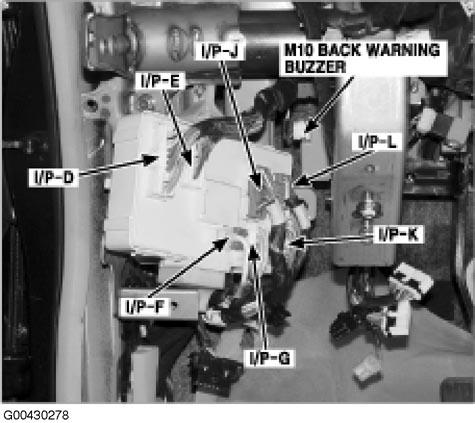

Fig 36: Left Kick Panel

G00430278

Courtesy of KIA MOTORS AMERICA, INC.

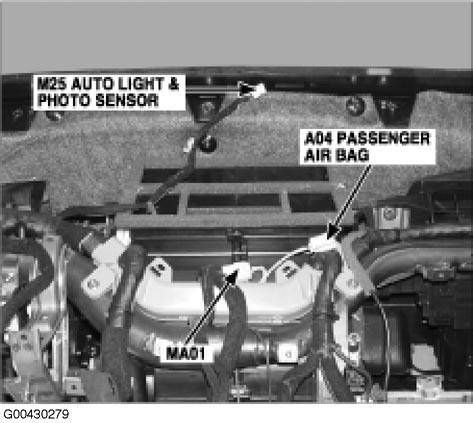

Fig 37: Dash

G00430279

Courtesy of KIA MOTORS AMERICA, INC.

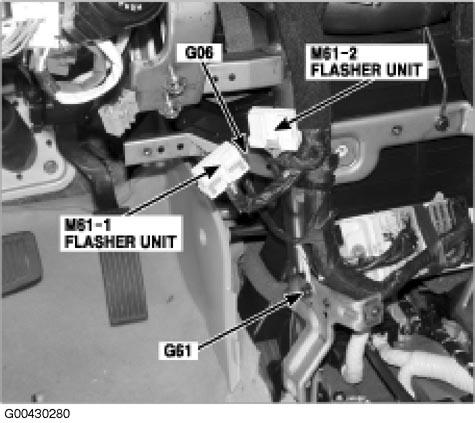

Fig 38: Center Of Dash

G00430280

Courtesy of KIA MOTORS AMERICA, INC.

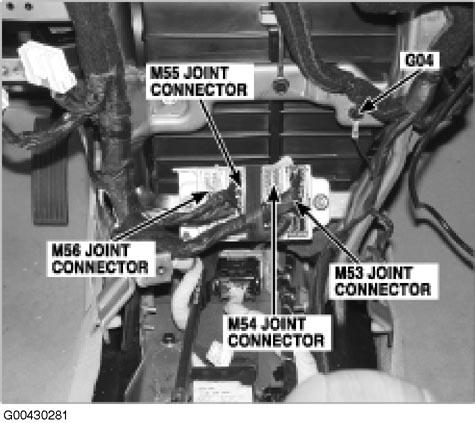

Fig 39: Center Console

G00430281

Courtesy of KIA MOTORS AMERICA, INC.

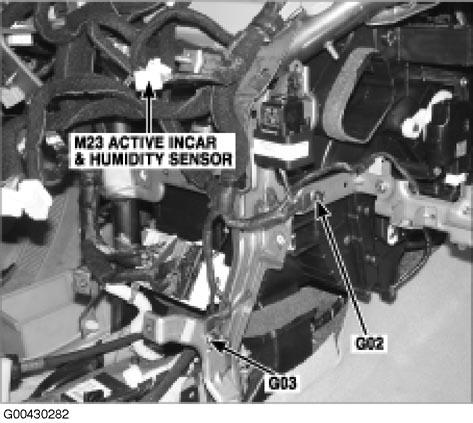

Fig 40: Center Of Dash

G00430282

Courtesy of KIA MOTORS AMERICA, INC.

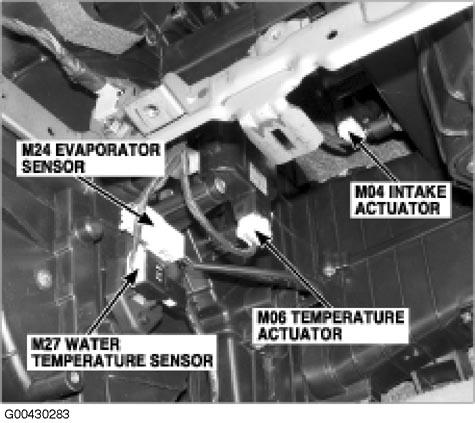

Fig 41: Center Of Dash

G00430283

Courtesy of KIA MOTORS AMERICA, INC.

Fig 42: Center Console

G00430284

Courtesy of KIA MOTORS AMERICA, INC.

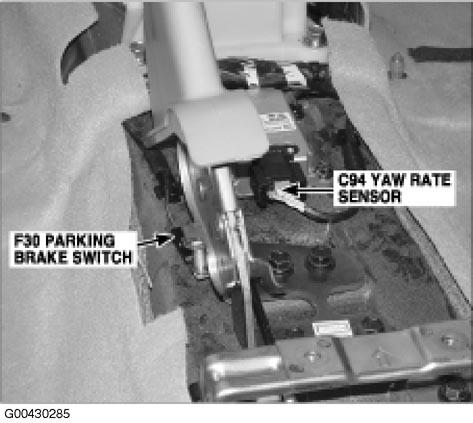

Fig 43: Center Console

G00430285

Courtesy of KIA MOTORS AMERICA, INC.

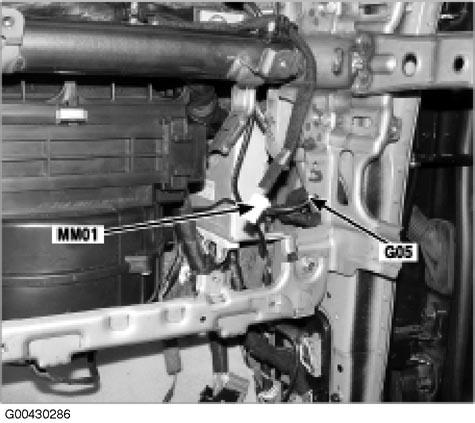

Fig 44: Right Side Of Dash

G00430286

Courtesy of KIA MOTORS AMERICA, INC.

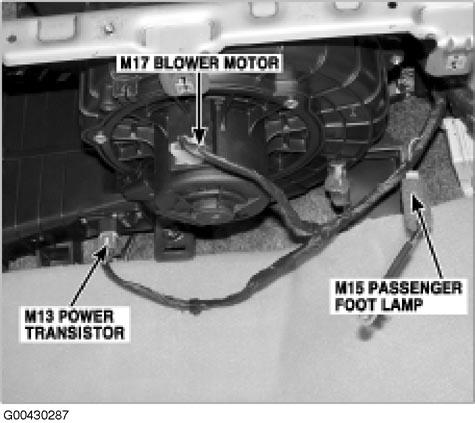

Fig 45: Right Side Of Dash

G00430287

Courtesy of KIA MOTORS AMERICA, INC.

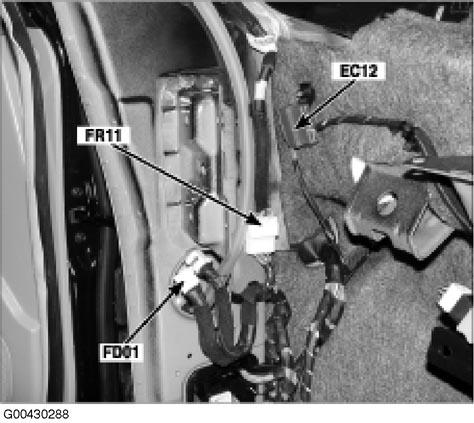

Fig 46: Left "A" Pillar

G00430288

Courtesy of KIA MOTORS AMERICA, INC.

Fig 47: Left Kick Panel

G00430289

Courtesy of KIA MOTORS AMERICA, INC.

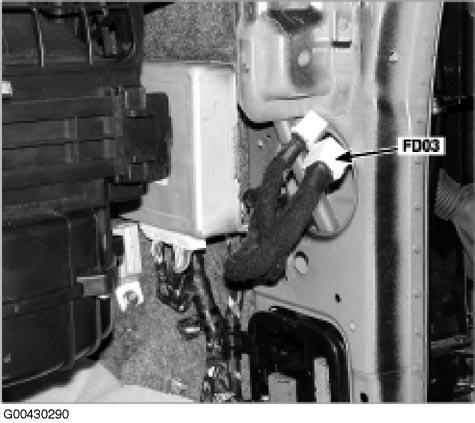

Fig 48: Right Kick Panel

G00430290

Courtesy of KIA MOTORS AMERICA, INC.

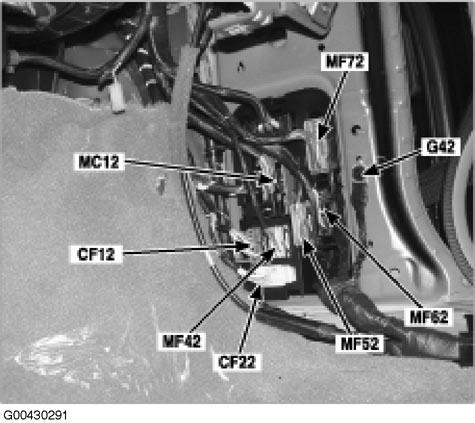

Fig 49: Right Kick Panel

G00430291

Courtesy of KIA MOTORS AMERICA, INC.

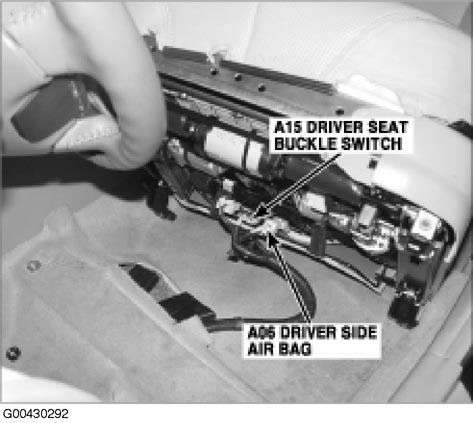

Fig 50: Driver's Seat

G00430292

Courtesy of KIA MOTORS AMERICA, INC.

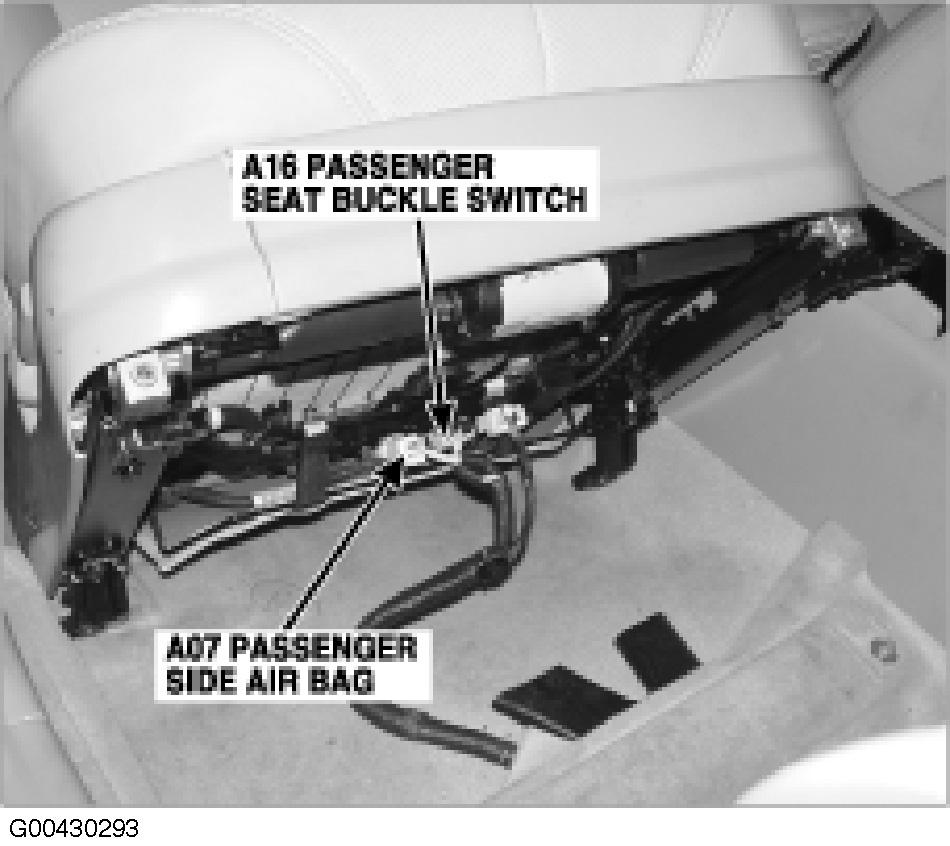

Fig 51: Passenger's Seat

G00430293

Courtesy of KIA MOTORS AMERICA, INC.

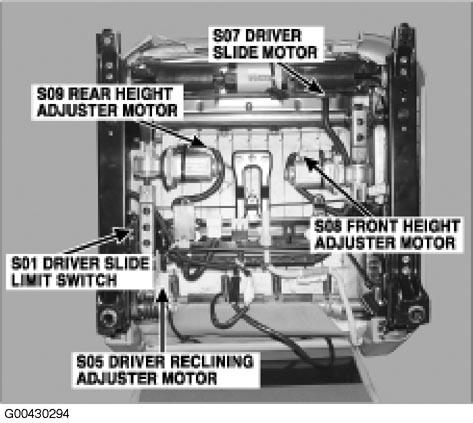

Fig 52: Driver's Seat

G00430294

Courtesy of KIA MOTORS AMERICA, INC.

Fig 53: Driver's Seat

G00430295

Courtesy of KIA MOTORS AMERICA, INC.

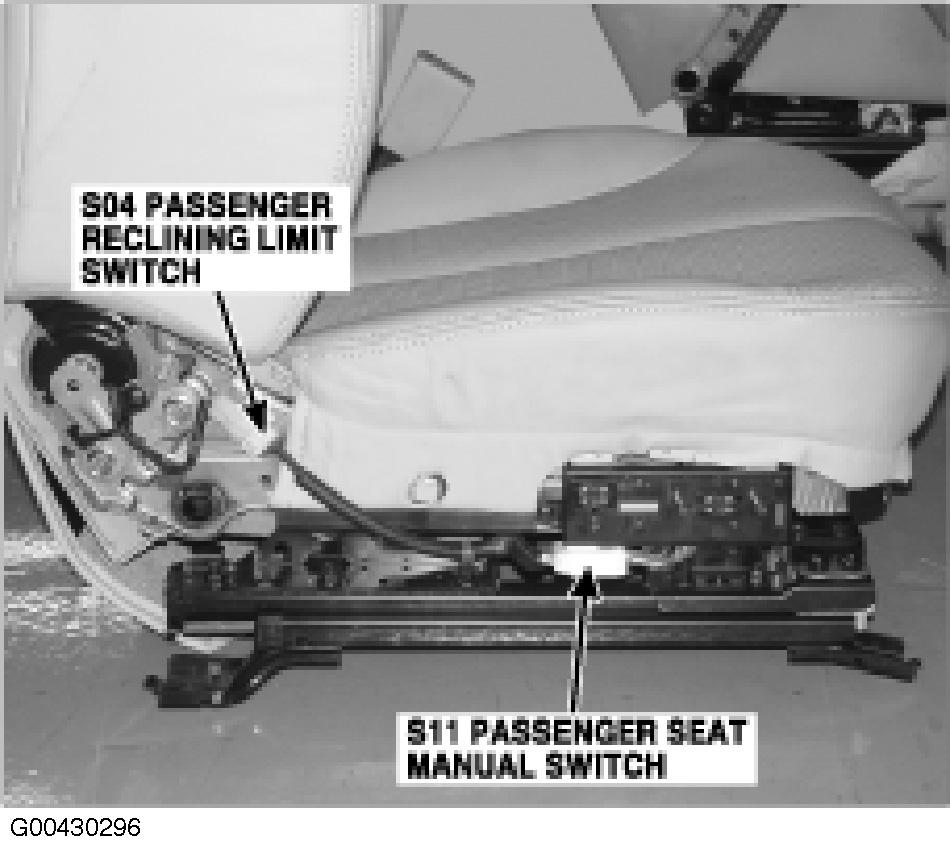

Fig 54: Passenger's Seat

G00430296

Courtesy of KIA MOTORS AMERICA, INC.

Fig 55: Passenger's Seat Bottom

G00430297

Courtesy of KIA MOTORS AMERICA, INC.

Fig 56: Left "B" Pillar

G00430298

Courtesy of KIA MOTORS AMERICA, INC.

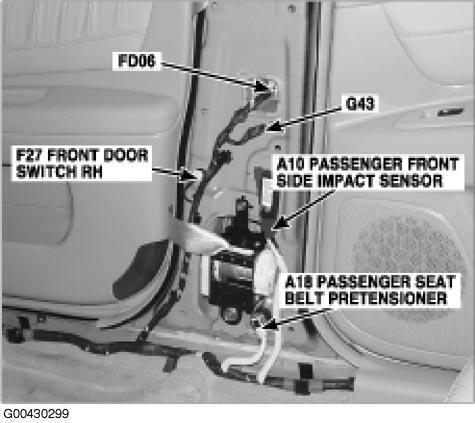

Fig 57: Right "B" Pillar

G00430299

Courtesy of KIA MOTORS AMERICA, INC.

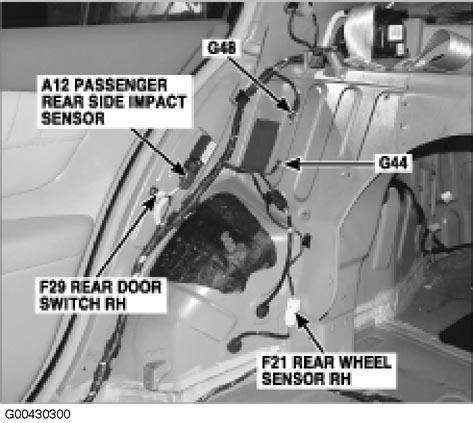

Fig 58: Right "C" Pillar

G00430300

Courtesy of KIA MOTORS AMERICA, INC.

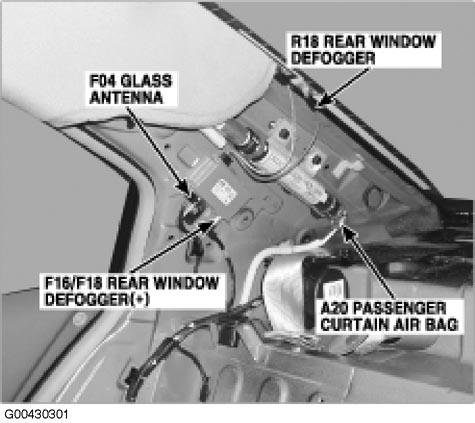

Fig 59: Right "C" Pillar

G00430301

Courtesy of KIA MOTORS AMERICA, INC.

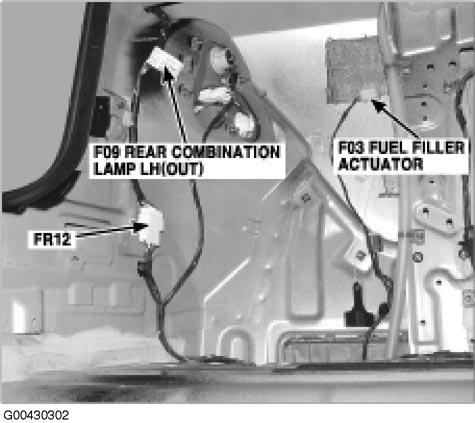

Fig 60: Left Side Of Trunk

G00430302

Courtesy of KIA MOTORS AMERICA, INC.

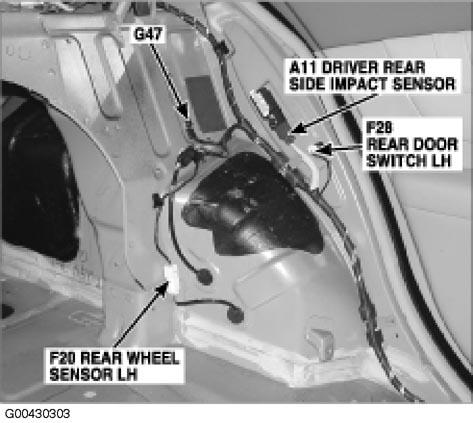

Fig 61: Left "C" Pillar

G00430303

Courtesy of KIA MOTORS AMERICA, INC.

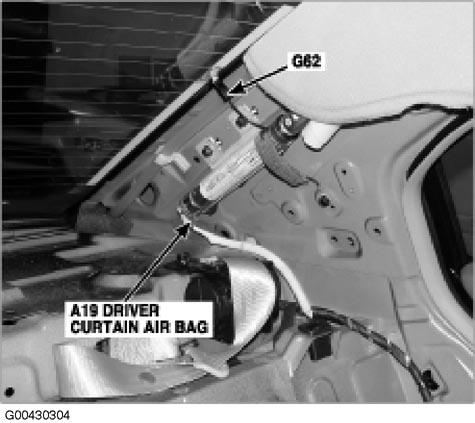

Fig 62: Left "C" Pillar

G00430304

Courtesy of KIA MOTORS AMERICA, INC.

Fig 63: Front Of Trunk

G00430305

Courtesy of KIA MOTORS AMERICA, INC.

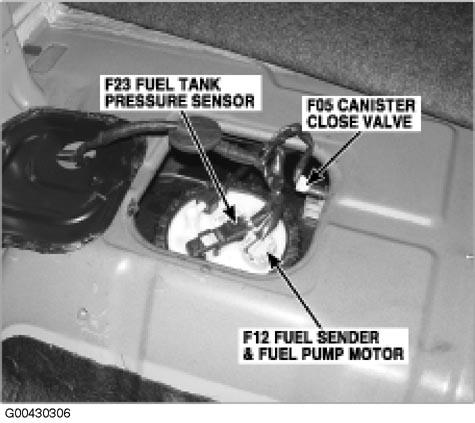

Fig 64: Fuel Tank Access Cover

G00430306

Courtesy of KIA MOTORS AMERICA, INC.

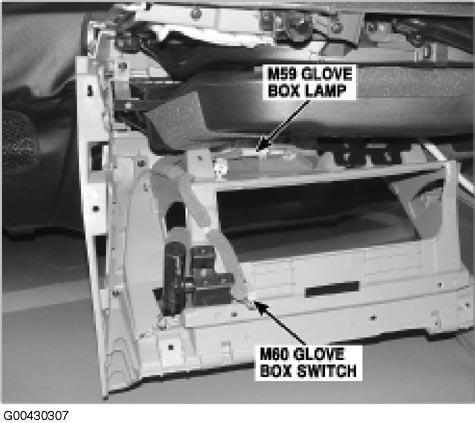

Fig 65: Glove Box

G00430307

Courtesy of KIA MOTORS AMERICA, INC.

Fig 66: Center Front Of Headliner

G00430308

Courtesy of KIA MOTORS AMERICA, INC.

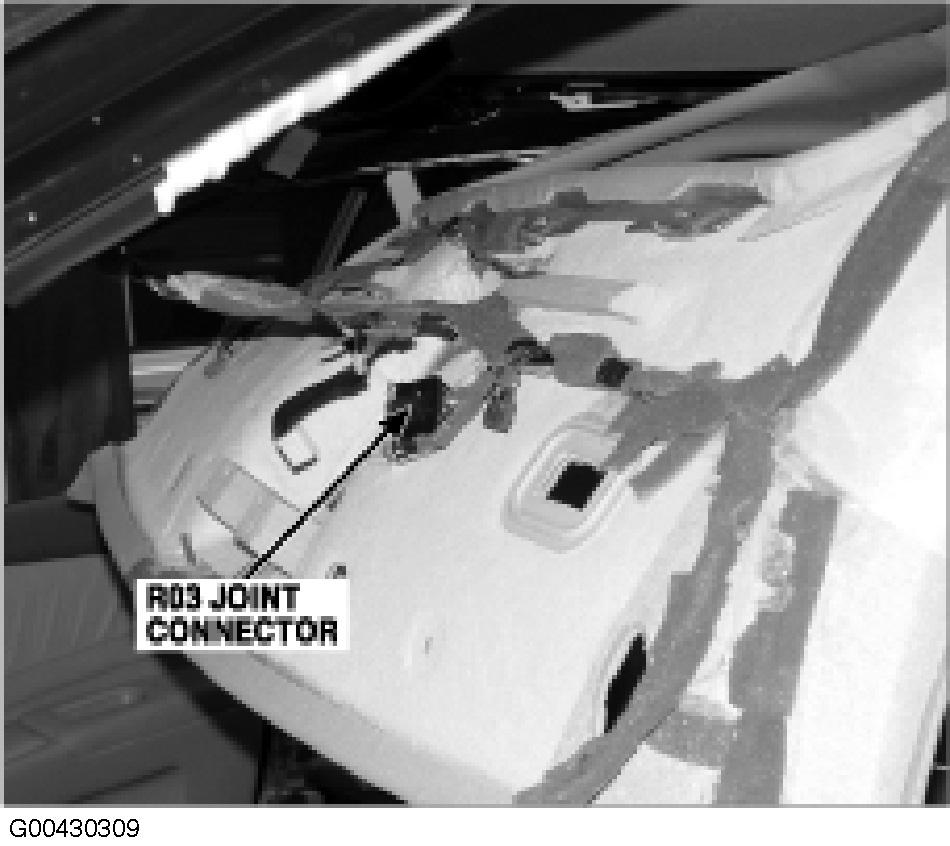

Fig 67: Headliner

G00430309

Courtesy of KIA MOTORS AMERICA, INC.

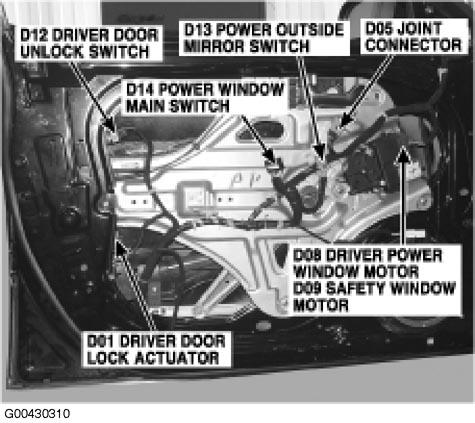

Fig 68: Left Front Door

G00430310

Courtesy of KIA MOTORS AMERICA, INC.

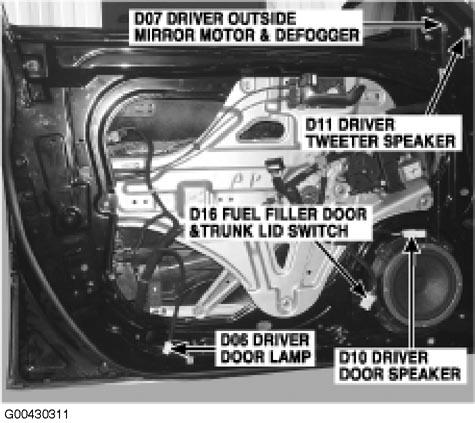

Fig 69: Left Front Door

G00430311

Courtesy of KIA MOTORS AMERICA, INC.

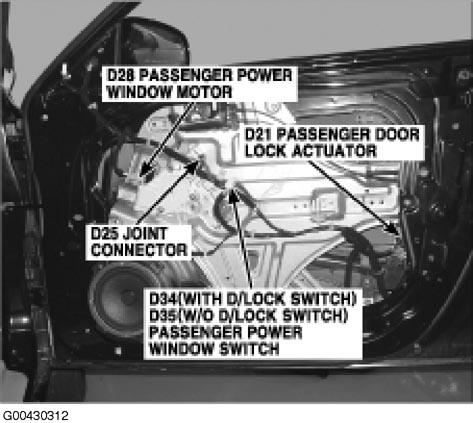

Fig 70: Right Front Door

G00430312

Courtesy of KIA MOTORS AMERICA, INC.

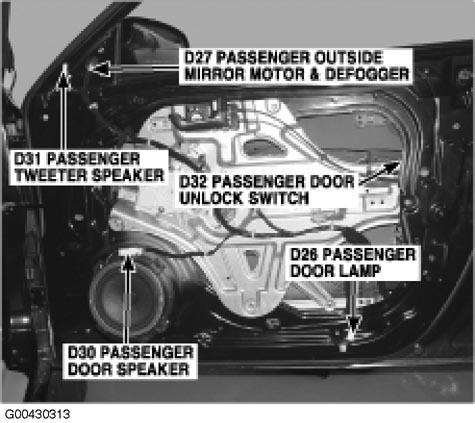

Fig 71: Right Front Door

G00430313

Courtesy of KIA MOTORS AMERICA, INC.

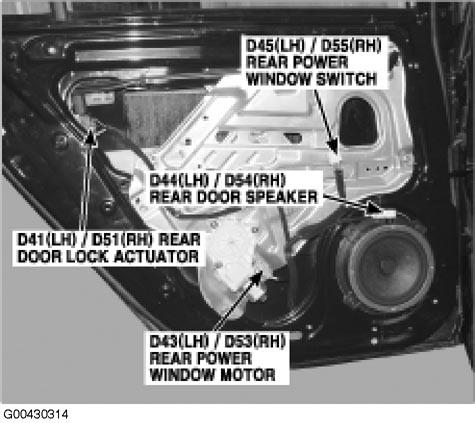

Fig 72: Left Rear Door

G00430314

Courtesy of KIA MOTORS AMERICA, INC.

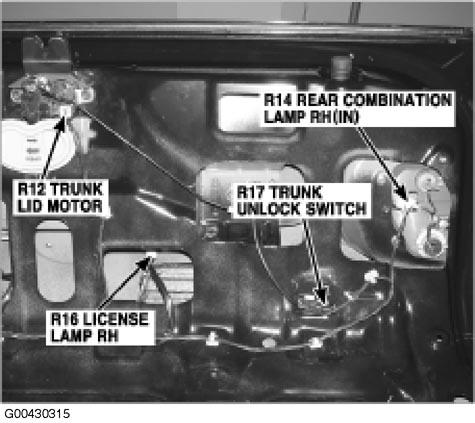

Fig 73: Trunk Lid

G00430315

Courtesy of KIA MOTORS AMERICA, INC.

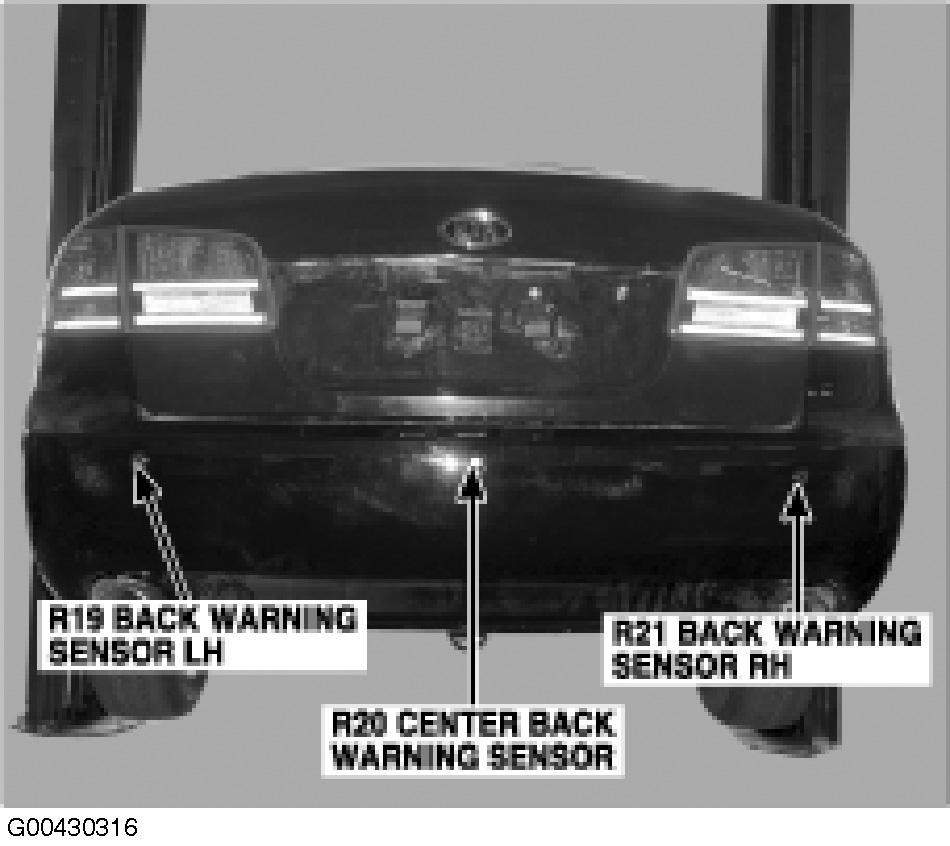

Fig 74: Rear Bumper

G00430316

Courtesy of KIA MOTORS AMERICA, INC.

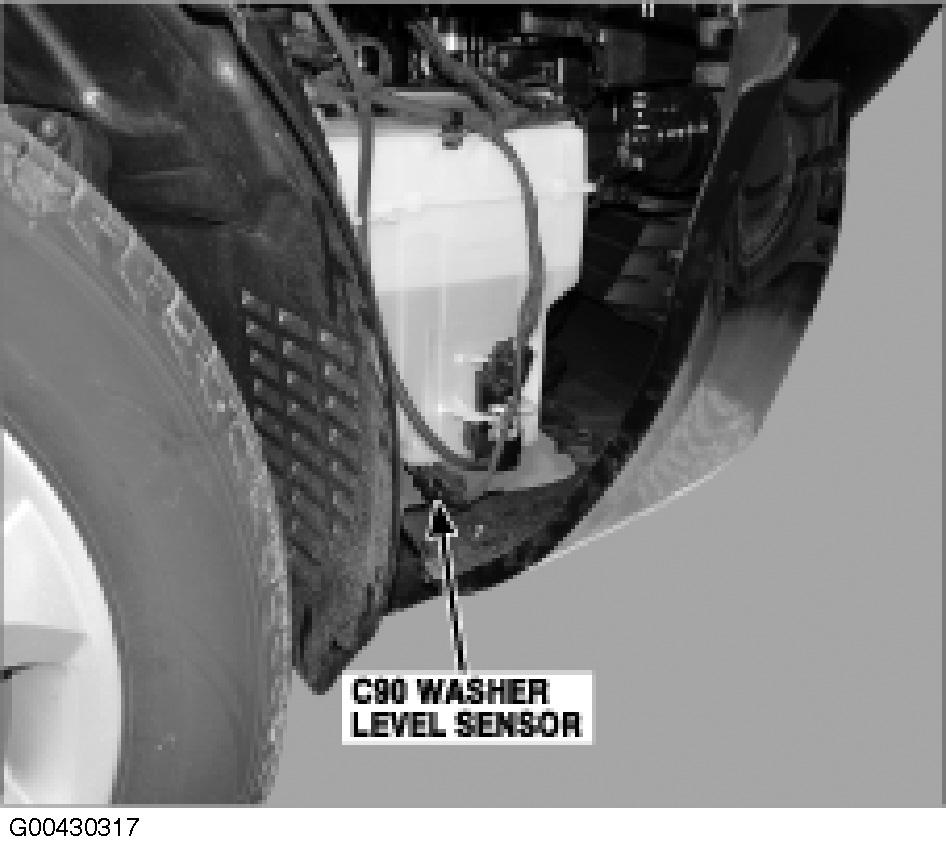

Fig 75: Right Front Wheel Well

G00430317

Courtesy of KIA MOTORS AMERICA, INC.

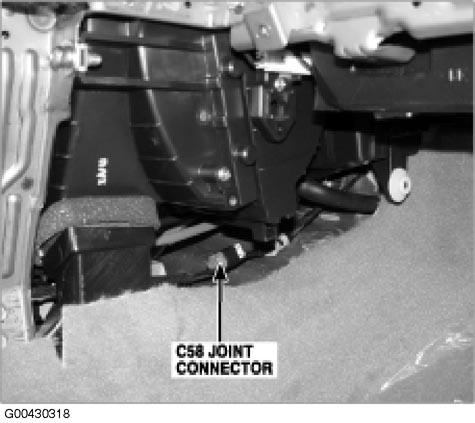

Fig 76: Center Of Dash

G00430318

Courtesy of KIA MOTORS AMERICA, INC.

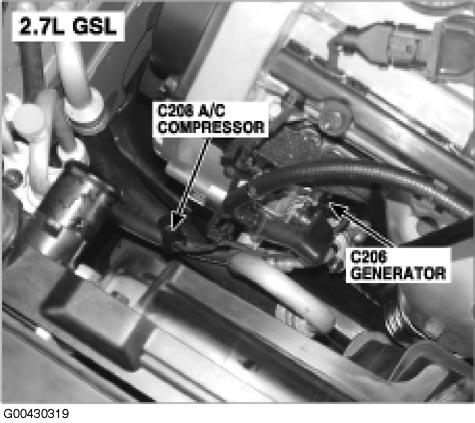

Fig 77: Left Front Of Engine (2.7L)

G00430319

Courtesy of KIA MOTORS AMERICA, INC.

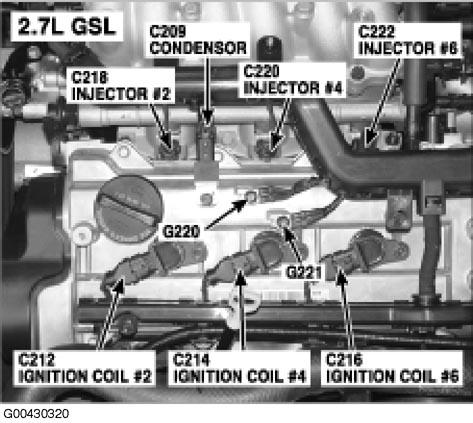

Fig 78: Left Cylinder Head (2.7L)

G00430320

Courtesy of KIA MOTORS AMERICA, INC.

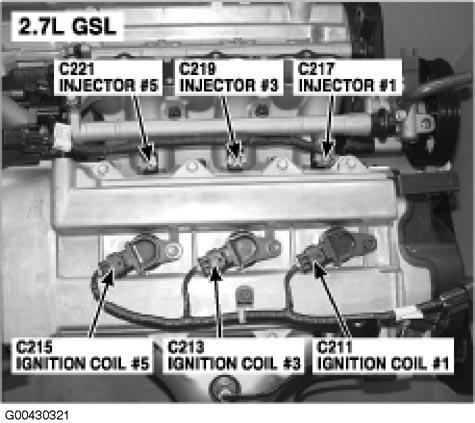

Fig 79: Right Cylinder Head (2.7L)

G00430321

Courtesy of KIA MOTORS AMERICA, INC.

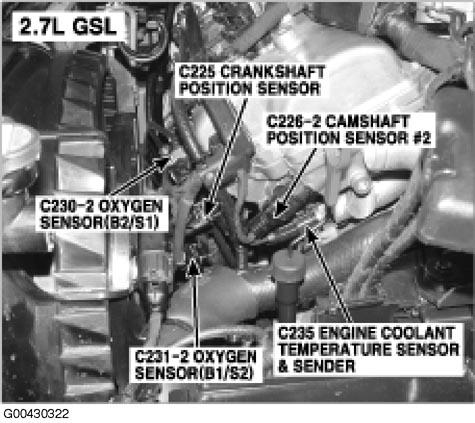

Fig 80: Rear Of Engine (2.7L)

G00430322

Courtesy of KIA MOTORS AMERICA, INC.

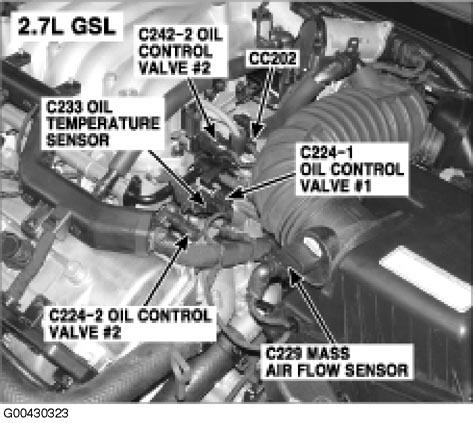

Fig 81: Rear Of Engine (2.7L)

G00430323

Courtesy of KIA MOTORS AMERICA, INC.

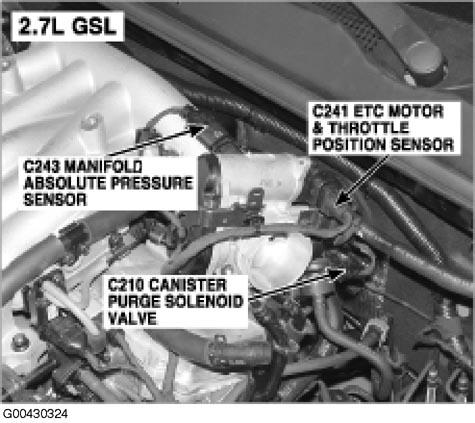

Fig 82: Right Rear Of Engine (2.7L)

G00430324

Courtesy of KIA MOTORS AMERICA, INC.

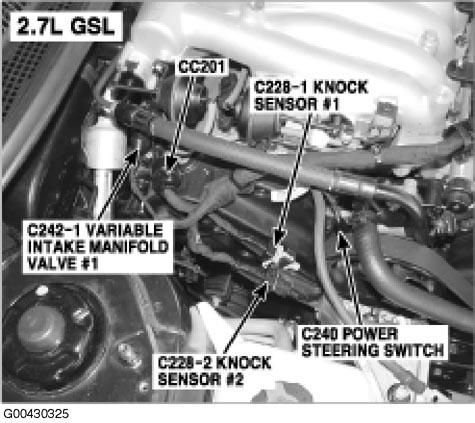

Fig 83: Front Of Engine (2.7L)

G00430325

Courtesy of KIA MOTORS AMERICA, INC.

Fig 84: Right Front Of Engine (2.7L)

G00430326

Courtesy of KIA MOTORS AMERICA, INC.

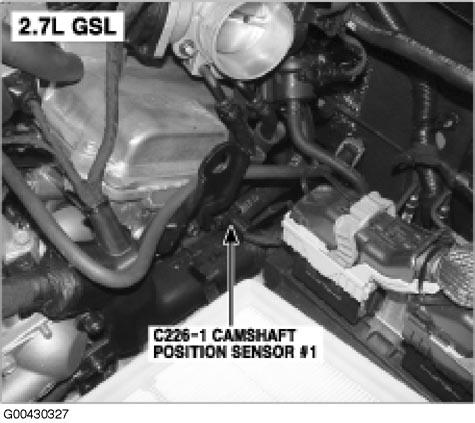

Fig 85: Rear Of Engine (2.7L)

G00430327

Courtesy of KIA MOTORS AMERICA, INC.

Fig 86: I/P Junction Box

G00447218

Courtesy of KIA MOTORS AMERICA, INC.

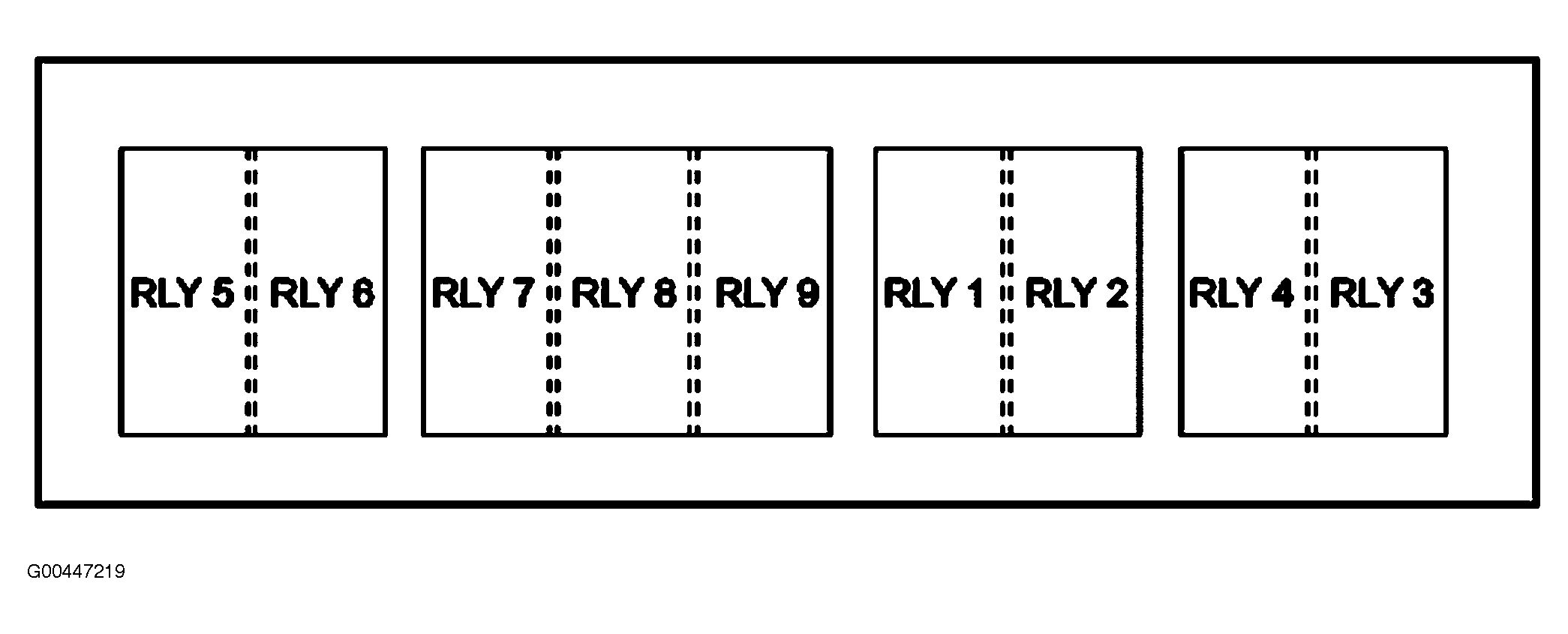

Fig 87: ICM Relay Box

G00447219

Courtesy of KIA MOTORS AMERICA, INC.

Fig 88: Behind Right Side Of Dash

G00447220

Courtesy of KIA MOTORS AMERICA, INC.
