Home >> Kia >> 2007 >> Magentis 2.4 3 >> Repair and Diagnosis >> Electrical >> Horns >> Component Location >> Replacement

Component Location: Replacement

  1. Remove the front bumper. (Refer to the FRONT BUMPER ).
  2. Remove the bolt and disconnect the horn connector, then remove the horn (A).

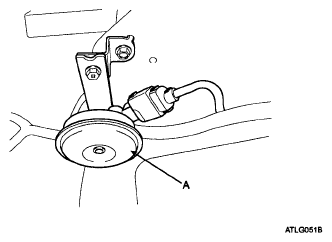

    Fig 1: Identifying Horn Connector And Horn
    G04806333Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
