SRS Control Module: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the ignition key from the vehicle.
  3. Disconnect the DAB, PAB, SAB, CAB and BPT connectors.
  4. Remove the floor console and heater ducts. (Refer to INTERIOR )
  5. Disconnect the SRSCM harness connector from the SRSCM.

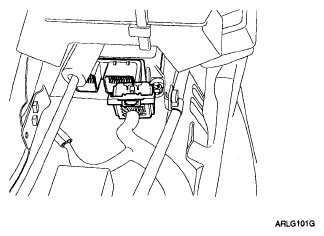

    Fig 1: Disconnecting SRSCM Harness Connector From SRSCM
    G04805683Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the SRSCM mounting nuts(3EA) from the SRSCM, then remove the SRSCM.

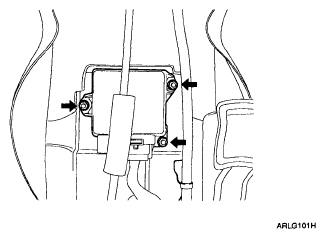

    Fig 2: Locating SRSCM Mounting Nuts
    G04805684Courtesy of KIA MOTORS AMERICA, INC.
