Abs Connector Input/Output

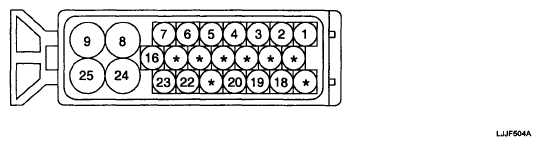

Fig 1: Identifying ABS Connector Input / Output

Courtesy of KIA MOTORS AMERICA, INC.

ABS CONNECTOR INPUT/OUTPUT REFERENCE

Connector Terminal		Specification
No	Description	Specification
4	IGNITION1( + )	Over voltage range: 16.5 ± 0.5 V < V Operating voltage range: 9.5 ± 0.5 V < V < 16.5 ± 0.5 V Low voltage range: 7.0 ± 0.5 V < V < 9.5 ± 0.5 V Max. current: I < 300 mA
25	POS. BATTERY.(SOLENOID)	Max leakage current: I < 0.8 mA Operating voltage range: 9.5 ± 0.5 V < V < 16.5 ± 0.5 V Max current: I < 30 A
g	POS, BATTERY.(MOTOR)	Operating voltage range: 9.5 ± 0.5 V < V < 16.5 ± 0.5 V Rush current: I < 100 A Max current: I < 30 A Max leakage current: I < 0.2 mA
8	GROUND	Rated current: I < 300 mA Max. current: I < 30 A
24	PUMP MOTOR GROUND	Rush current: I < 100 A Max current: I < 30 A
18	BRAKE LIGHT SWITCH	Input voltage low: 0 V ≤ V ≤ 3.0 V Input voltage High: 7.0 V ≤ V ≤ 16.0 V
16	ABS/EBD W/LAMP DRIVE	Max. current: I < 200 mA Max. output low voltage: V < 1.2 V
1	SENSOR FRONT LEFT POWER	Output voltage: IGN[V] ± 1V Output current: Max 30mA
19	SENSOR FRONT RIGHT POWER
5	SENSOR REAR LEFT POWER
23	SENSOR REAR RIGHT POWER
2	SENSOR FRONT LEFT SIGNAL	Input current LOW: 5.9~8.4 mA Input current HIGH: 11.8~16.8 mA Frequency range: 1~2000 Hz Input duty: 50 ± 20 %
20	SENSOR FRONT RIGHT SIGNAL
6	SENSOR REAR LEFT SIGNAL
22	SENSOR REAR RIGHT SIGNAL
7	DIAGNOSIS INPUT/OUTPUT	Input voltage: VI_L < 0.3 IGN[V] VI_H > 0.7 IGN[V] Output voltage: VO_L < 0.2 IGN[V] VO_H > 0.8 IGN[V]
3	SENSOR FRONT RIGHT OUTPUT	Maximum Current: I < 2 mA External pull up resister: 10KΩ < R Output duty: 50 ± 20 %
