Home >> Kia >> 2007 >> Rio Base, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Overhaul >> Cooling System >> Component

Cooling System: Component

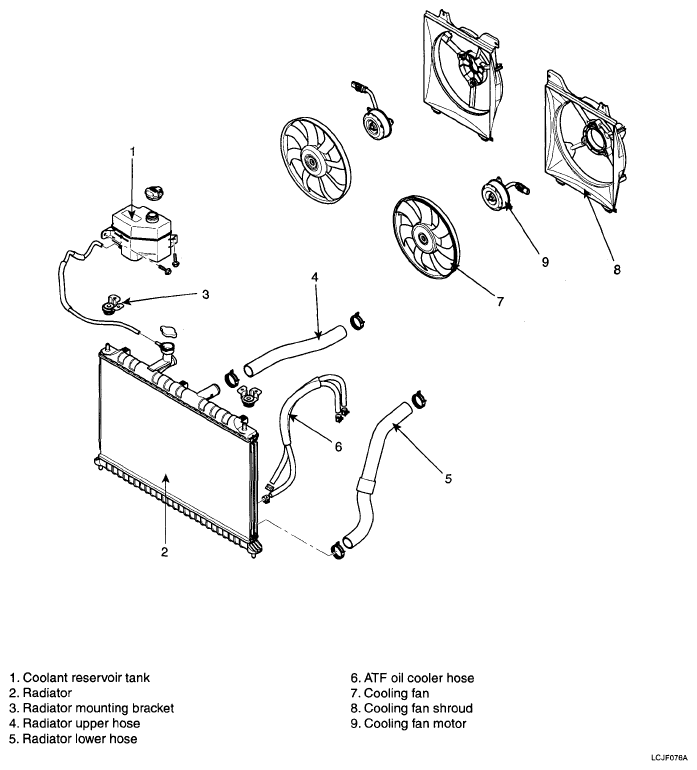

Fig 1: Identifying Cooling System Components And Tightening Torques (1 Of 2)
G04861829Courtesy of KIA MOTORS AMERICA, INC.

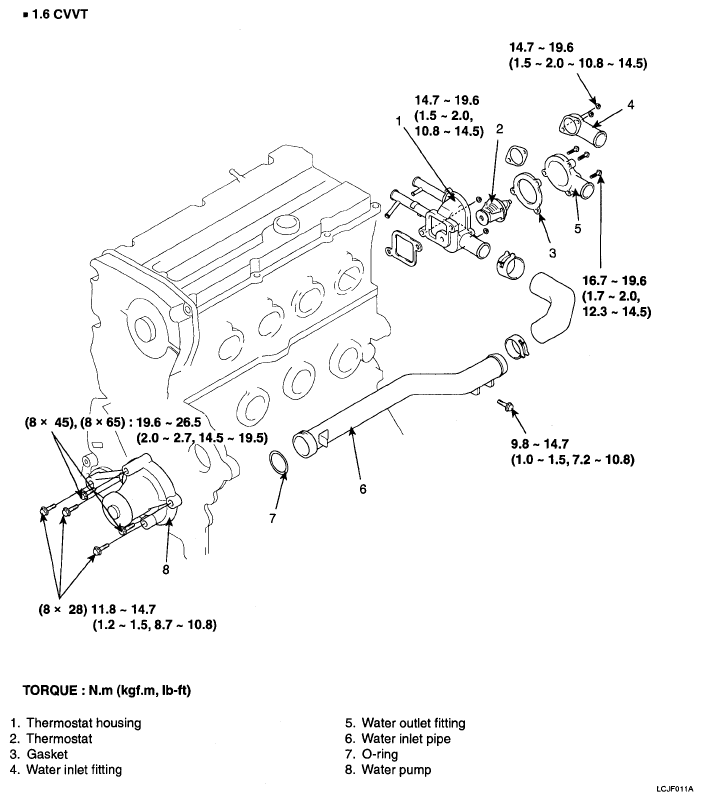

Fig 2: Identifying Cooling System Components And Tightening Torques (2 Of 2)
G04861830Courtesy of KIA MOTORS AMERICA, INC.
