Home >> Kia >> 2007 >> Rio Base, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Overhaul >> Engine And Transaxle Assembly >> Component

Engine And Transaxle Assembly: Component

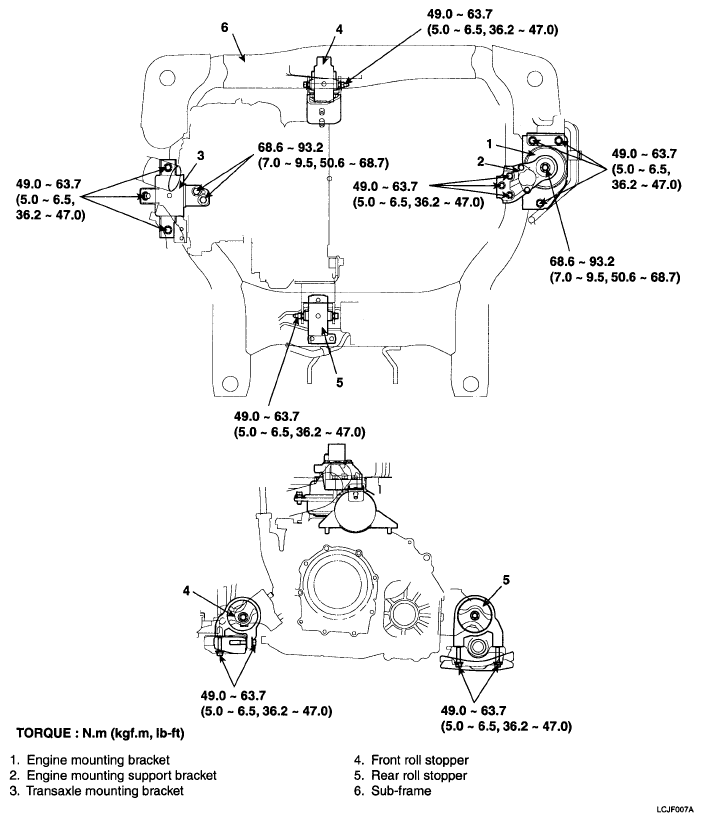

Fig 1: Identifying Engine And Transaxle Assembly Component And Tightening Torque

G04861748

Courtesy of KIA MOTORS AMERICA, INC.
