Timing Belt: Installation

1. Temporarily install the camshaft sprocket bolt (C).

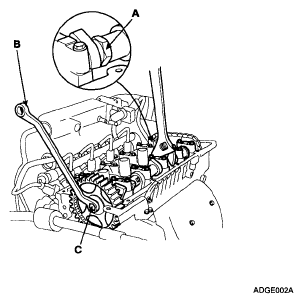

2. Hold the portion (A) of the camshaft with a hexagonal wrench, and tighten the bolt (C) with a wrench (B).

   Tightening torque :

   78.5~98.1N.m (8.0~10.0kgf.m, 57.9~72.3lb-ft)

   Fig 1: Identifying Camshaft Portion

   Courtesy of KIA MOTORS AMERICA, INC.

1. Install the cylinder head cover (A) and bolts (B).

   Tightening torque :

   7.8~9.8N.m (0.8~1.0kgf.m, 5.8~7.2lb-ft)

   • 1.6 CVVT

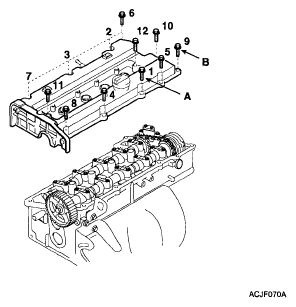

     Fig 2: Identifying Tightening Sequence Of Cylinder Head Cover Bolts

     Courtesy of KIA MOTORS AMERICA, INC.

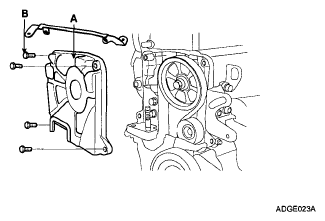

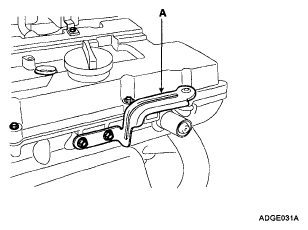

2. Install the engine cover bracket (A).
   Fig 3: Identifying Engine Cover Bracket

   Courtesy of KIA MOTORS AMERICA, INC.
3. Install the PCV (Positive Crankcase Ventilation) hose (A) and breather hose (B) to the cylinder head cover.
   Fig 4: Identifying PCV Hose And Breather Hose

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install the ignition coil.
   • 1.6 CVVT

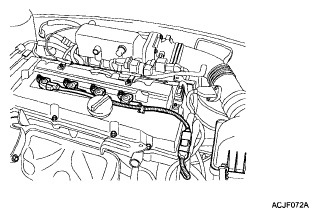

     Fig 5: Identifying Ignition Coil

     Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque :

42.2~53.9N.m (4.3~5.5kgf.m, 31.1~39.8lb-ft)

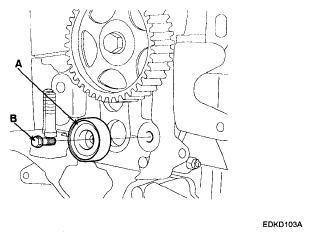

Fig 9: Identifying Timing Belt Idler And Bolt

Courtesy of KIA MOTORS AMERICA, INC.

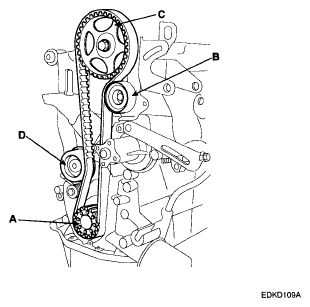

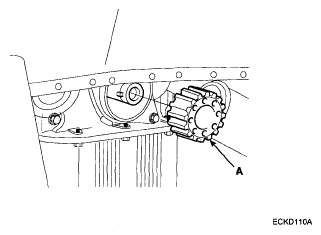

Crankshaft sprocket (A) → idler pulley (B) → camshaft sprocket (C) → timing belt tensioner (D).

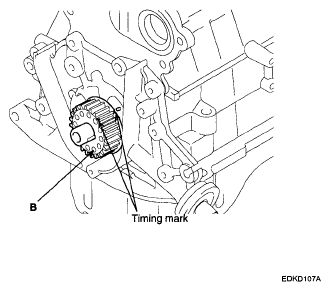

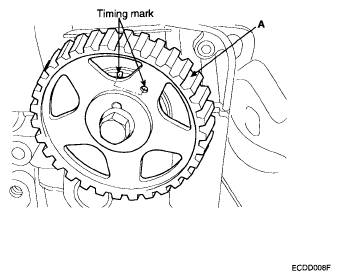

Fig 11: Identifying Crankshaft Sprocket, Idler Pulley, Camshaft Sprocket And Timing Belt Tensioner

Courtesy of KIA MOTORS AMERICA, INC.

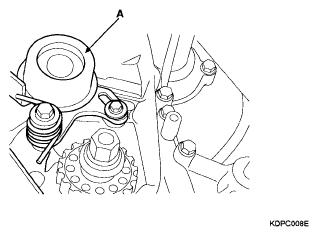

1. Loosen the tensioner pulley mounting bolt and apply tension to the timing belt.

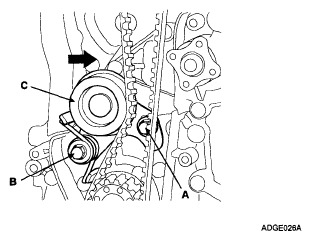

   Fig 12: Identifying Tensioner Pulley

   Courtesy of KIA MOTORS AMERICA, INC.
2. After checking the alignment between each sprocket and each timing belt tooth, tighten the mounting bolt (A) and (B) one by one.

   Tightening torque :

   19.6~26.5N.m (2.0~2.7kgf.m, 14.5~19.5lb-ft)

3. Then recheck the belt tension.

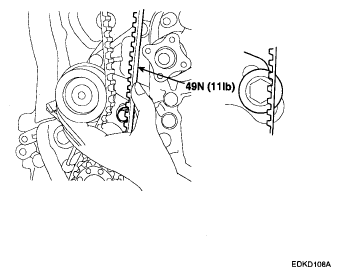

   Verify that when the tensioner and the tension side of the timing belt are pushed in horizontally with a moderate force [approx. 49N (111b)], the timing belt cog end is aprox. 1/2 of the tensioner mounting bolt head radius (across flats) away from the bolt head center.

   Fig 13: Checking Belt Tension

   Courtesy of KIA MOTORS AMERICA, INC.
4. Timing belt tension measuring procedure (by a sonic tension gauge)

   Rotate crankshaft in clockwise direction to set 1st piston on top dead center (TDC) and rotate crankshaft in counterclockwise to 90° then measure the belt tension in the middle of tension side span (in arrow direction of above illustration) by free vibration method.

   CAUTION: Avoid rotating the crankshaft in a counter clockwise direction.
   Engine damage could occur.

   Conversion equation of frequency into tension: T = (4 / 9.8) xS² xMxWxf² / 100000000

   S: Measured belt span (mm)

   M: Unit weight of belt (gf/cm² )

   W: Belt width (mm)

   f: Transverse natural frequency of belt (Hz)

   TIMING BELT SPECIFICATIONS



   Item	Specifications
   S (mm)	249.6
   M (gf/cm2 )	0.4543
   W (mm)	22
   f (Hz)	70.4~87.9
   T (kgf)	16 ± 3.5

Tightening torque :

7.8~9.8N.m (0.8~1.0kgf.m, 5.8~7.2lb-ft)

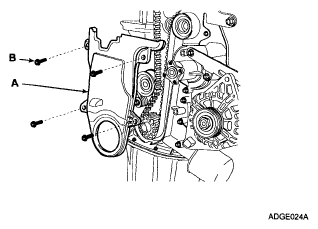

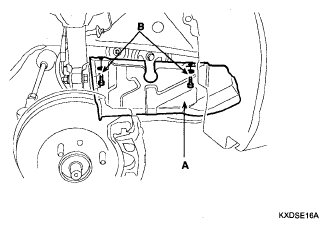

Fig 14: Identifying Timing Belt Lower Cover And Bolts

Courtesy of KIA MOTORS AMERICA, INC.

Make sure that crankshaft sprocket pin fits the small hole in the pulley.

Tightening torque :

137.3~147.1 N.m (14.0~15.0kgf.m, 101.3~108.5lb-ft)

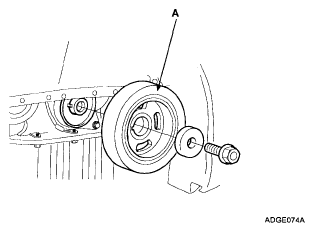

Fig 15: Identifying Crankshaft Pulley

Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque :

7.8~9.8N.m (0.8~1.0kgf.m, 5.8~7.2lb-ft)

Fig 16: Identifying Timing Belt Upper Cover And Bolts

Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque :

88.3~98.1 N.m (9.0~10.0kgf.m, 65.1~72.3lb-ft)

Tightening torque :

3.9~5.9N.m (0.4~0.6kgf.m, 2.9~4.3lb-ft)

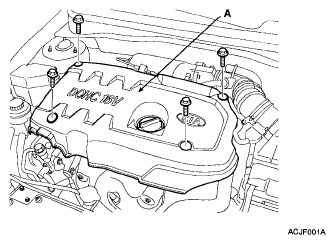

Fig 19: Identifying Engine Cover

Courtesy of KIA MOTORS AMERICA, INC.
