Lubrication System: Component

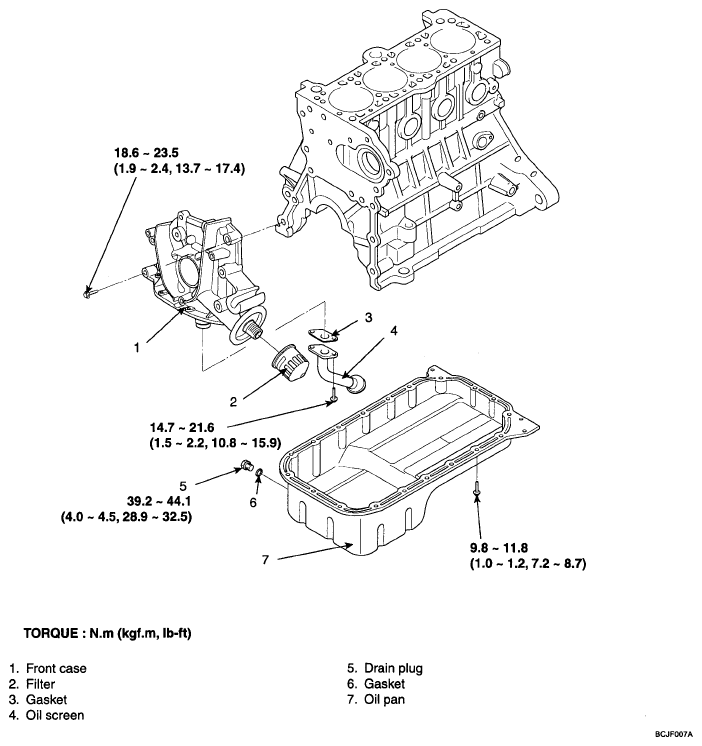

Fig 1: Identifying Lubrication System Components And Tightening Torques (1 Of 2)
G04861859Courtesy of KIA MOTORS AMERICA, INC.

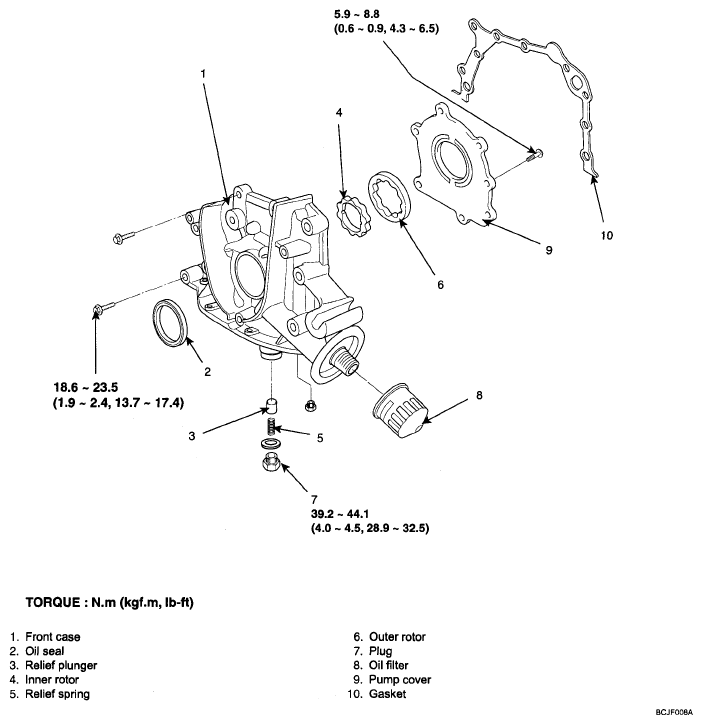

Fig 2: Identifying Lubrication System Components And Tightening Torques (2 Of 2)
G04861860Courtesy of KIA MOTORS AMERICA, INC.
