Abs Connector Input/Output

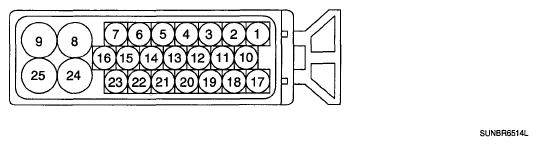

Fig 1: Identifying ABS Connector Input/Output

Courtesy of KIA MOTORS AMERICA, INC.

ABS CONNECTOR INPUT/OUTPUT

Connector Terminal		Specification	Remark
No	Description	Specification	Remark
4	IGNITION1 (+)	Over voltage range: 16.5 ± 0.5 V Operating voltage range: 9.5 ± 0.5 V < V < 16.5 ± 0.5 V Low voltage range: 7.0 ± 0.5 V < V < 9.5 ± 0.5 V Max. current: I < 300 mA
25	POS. BATTERY. (SOLENOID)	Max leakage current : I < 0.8 mA Operating voltage range: 9.5 ± 0.5 V < V < 16.5 ± 0.5 V Max current : I < 30 A
9	POS, BATTERY. (MOTOR)	Operating voltage range: 9.5 ± 0.5 V < V < 16.5 ± 0.5 V Rush current : I < 100 A Max current : I < 30 A Max leakage current : I < 0.2 mA
8	GROUND	Rated current : I < 300 mA Max. current: I < 30 A
24	PUMP MOTOR GROUND	Rush current : I < 100 A Max current : I < 30 A
18	BRAKE LIGHT SWITCH	Input voltage low: 0 V ≤ V ≤ 3.0 V Input voltage High: 7.0 V ≤ V ≤ 16.0 V
16	ABS/EBD W/LAMP DRIVE	Max. current: I < 200 mA Max. output low voltage : V < 1.2 V
1	SENSOR FRONT LEFT POWER	Output voltage : IGN[V] ± 1 V Output current : Max 30 mA
19	SENSOR FRONT RIGHT POWER
5	SENSOR REAR LEFT POWER
23	SENSOR REAR RIGHT POWER
2	SENSOR FRONT LEFT SIGNAL	Input current LOW : 5.9 ~ 8.4 mA Input current HIGH : 11.8 ~ 16.8 mA Frequency range : 1 ~ 2000 Hz Input duty : 50 ± 20 %
20	SENSOR FRONT RIGHT SIGNAL
6	SENSOR REAR LEFT SIGNAL
22	SENSOR REAR RIGHT SIGNAL
7	DIAGNOSIS INPUT/OUTPUT	Input voltage : VIL < 0.3 IGN[V] VIH > 0.7 IGN[V] Output voltage : VOL < 0.2 IGN[V] VOH > 0.8 IGN[V]
3	WHEEL SPEED SENSOR OUTPUT (ECM)
