Front Wheel Speed Sensor: Removal

  1. Remove the front wheel speed sensor mounting bolt (A) and cable mounting bolt (B).

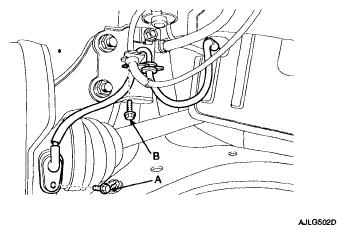

    Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt And Cable Mounting Bolt
    G04805954Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the front wheel speed sensor bracket (A).

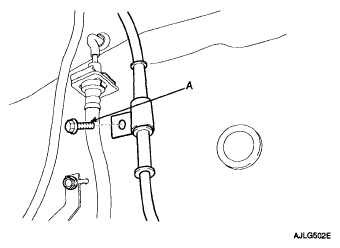

    Fig 2: Identifying Front Wheel Speed Sensor Bracket
    G04805955Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front wheel guard.
  4. Disconnect the front wheel speed sensor connector (A), then remove the front wheel speed sensor.
