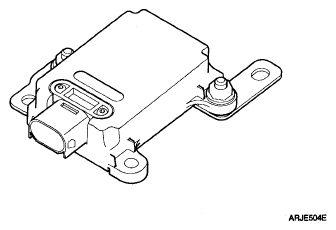

Yaw-Rate Sensor And G-Sensor: Description: Notes
- The yaw-rate and lateral G sensor is applied for the ESC system.
- The yaw-rate is the angular velocity, when a vehicle turns a corner, and the lateral G is the acceleration to move a vehicle out of the way when cornering.
- The sensor is located in the front passenger seat lower floor on vehicle.
VOLTAGE SPECIFICATION
| Description | Specification | |
|---|---|---|
| Operating voltage | 4.75 ~ 5.25 V | |
| Current consumption | Max. 65 mA | |
| Output voltage range | 0.5 ~ 4.5 V | |
| Operating temperature | -40 ~ 85°C | |
| Yaw-rate sensor | Measurement range | -75 ~ 75°/sec |
| Output voltage range | 0.5 ~ 4.5 V | |
| Sensitivity | 26.67 mV (°/sec.) | |
| Zero rate output | 2.5 V | |
| Frequency response | 10 Hz | |
| Lateral G sensor | Measurement range | -1.5 ~ 1.5 g |
| Output voltage range | 0.5 ~ 4.5 V | |
| Sensitivity | 1.33 V/g | |
| Zero rate output | 2.5 V | |
| Frequency response | 50 Hz | |
