Audio Unit: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front console under cover (A).

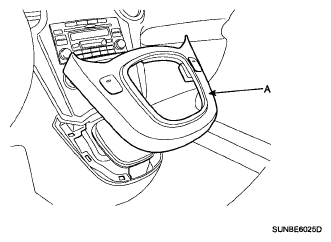

    Fig 1: Identifying Front Console Under Cover
    G05187666Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the center fascia panel (B).

    (Refer to the CRASH PAD ).

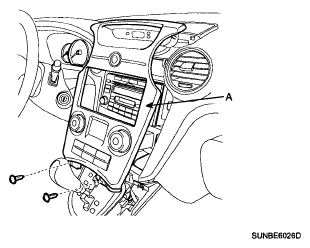

    Fig 2: Identifying Center Fascia Panel
    G05187667Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the mounting screws (4EA) then remove the audio unit (A).

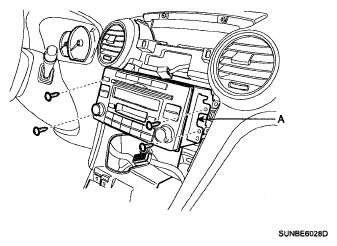

    Fig 3: Identifying Mounting Screws (4EA) And Audio Unit
    G05187668Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the audio unit after disconnecting the audio connectors and cable.
