Audio System: Inspection: Notes

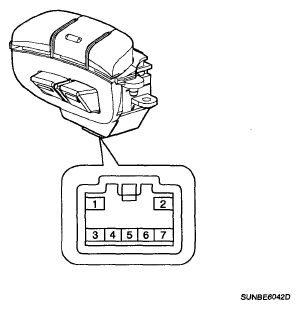

- Check for resistance between No.2 and No.3 terminals in each switch position.
Courtesy of KIA MOTORS AMERICA, INC.
TERMINALS REFERENCE
| Switch |
Connector terminal |
Resistance (±5%) |
| VOLUME DOWN |
2 - 3 (Left) |
6.81 kΩ |
| VOLUME UP |
2 - 3 (Left) |
4.61 kΩ |
| MODE |
2 - 3 (Left) |
2.11 kΩ |
| CH/SEEK DOWN |
2 - 3 (Left) |
1.11 kΩ |
| CH/SEEK UP |
2 - 3 (Left) |
430 Ω |
