Audio System
>>
Troubleshooting
>>
Chart 2
Chart 2

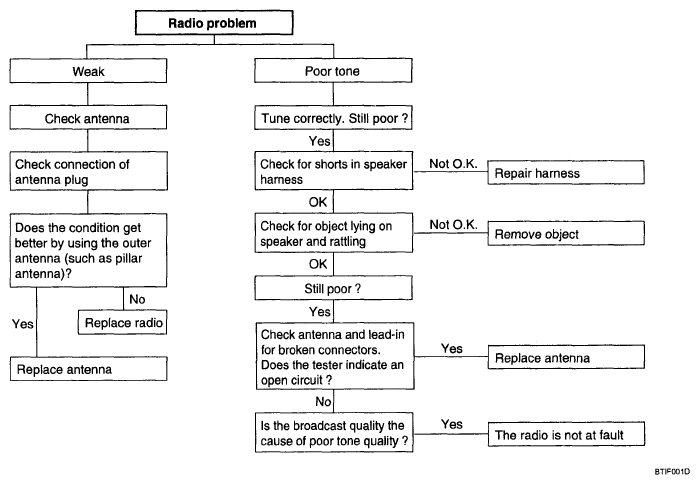

Fig 1: Problem Occur Areas Flow Chart 2
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
