Chart 5

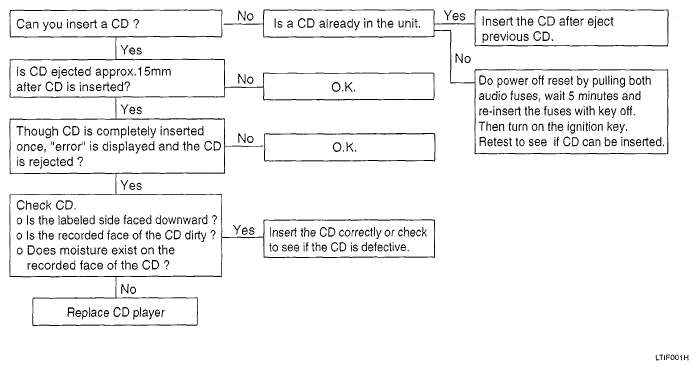

CD WILL NOT BE ACCEPTED

Fig 1: Problem Occur Areas Flow Chart 5 (CD Will Not Be Accepted)
Courtesy of KIA MOTORS AMERICA, INC.

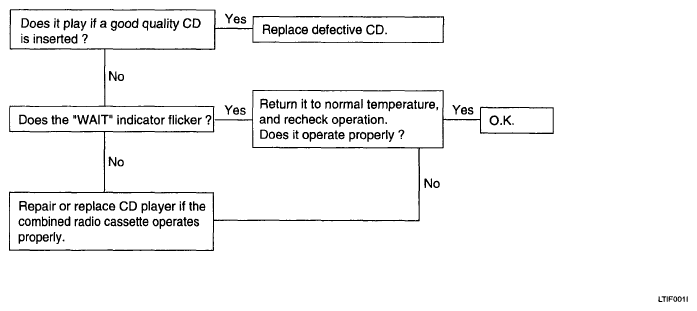

NO SOUND

Fig 2: Problem Occur Areas Flow Chart 5 (No Sound)
Courtesy of KIA MOTORS AMERICA, INC.
CD SOUND SKIPS

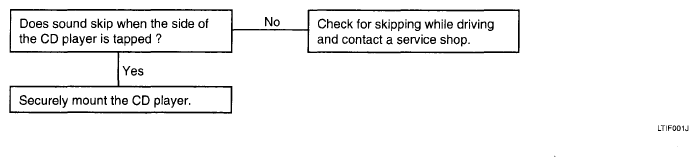

1. Sound sometimes skips when parking.

  Fig 3: Problem Occur Areas Flow Chart 5 (CD Sound Skips - Sound Sometimes Skips When Parking)
  Courtesy of KIA MOTORS AMERICA, INC.

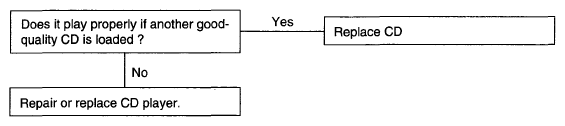

2. Sound sometimes skips when driving.
  (Stop vehicle, and check it.)

  (Check by using a CD which is free of scratches, dirt or other damage.)

  Fig 4: Problem Occur Areas Flow Chart 5 (CD Sound Skips - Sound Sometimes Skips When Driving)
  Courtesy of KIA MOTORS AMERICA, INC.

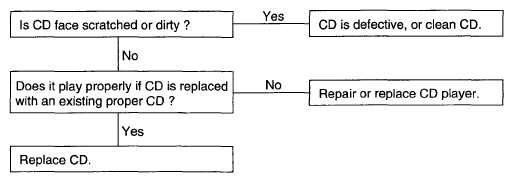

SOUND QUALITY IS POOR

Fig 5: Problem Occur Areas Flow Chart 5 (Sound Quality Is Poor)
Courtesy of KIA MOTORS AMERICA, INC.

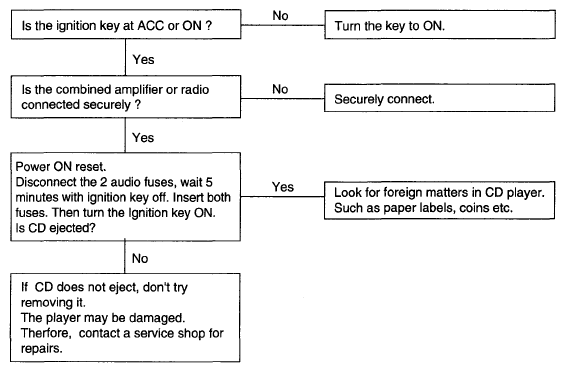

CD WILL NOT EJECT

Fig 6: Problem Occur Areas Flow Chart 5 (CD Will Not Eject)
Courtesy of KIA MOTORS AMERICA, INC.

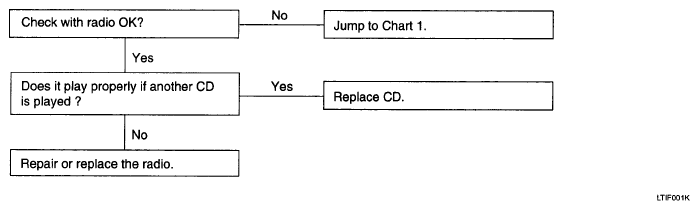

NO SOUND FROM ONE SPEAKER

Fig 7: Problem Occur Areas Flow Chart 5 (No Sound From One Speaker)
Courtesy of KIA MOTORS AMERICA, INC.
