Audio System
>>
Troubleshooting
>>
Chart 6
Chart 6

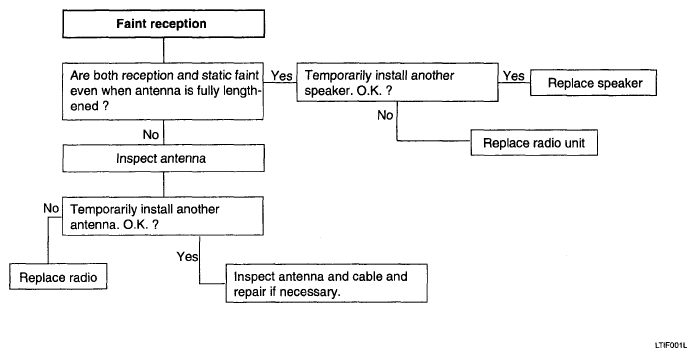

Fig 1: Problem Occur Areas Flow Chart 6
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
