BCM (Body Control Module): Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to the CRASH PAD )

  3. Remove the body control module (A) after loosening 2 nuts and disconnecting connector.

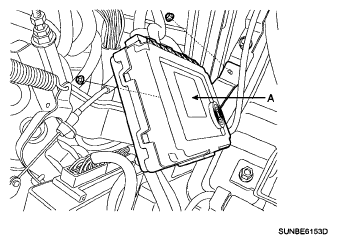

    Fig 1: Identifying Body Control Module And Nuts
    G05187811Courtesy of KIA MOTORS AMERICA, INC.
