Ignition System: Inspection

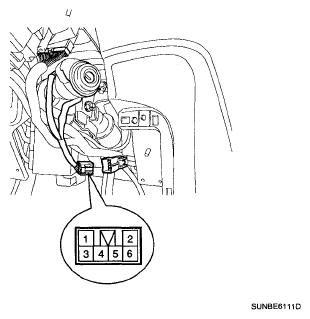

Fig 1: Identifying Ignition Switch Connector Terminals
G05187748Courtesy of KIA MOTORS AMERICA, INC.
  1. Disconnect the ignition switch connector and key warning switch connector from under the steering column.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

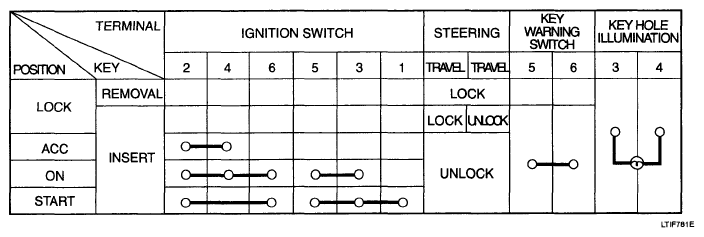

    Fig 2: Continuity Chart
    G04806711Courtesy of KIA MOTORS AMERICA, INC.
