Ignition System: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A). (Refer to the CRASH PAD ).

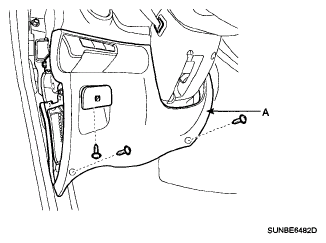

    Fig 1: Identifying Crash Pad Lower Panel
    G05188093Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the screws (2EA) and trip switch connector. Then remove the cluster fascia panel (A).

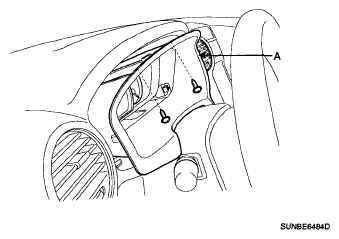

    Fig 2: Identifying Cluster Fascia Panel
    G05188109Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the shroud (A) after removing the fixed screws (3EA).

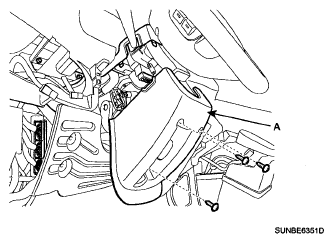

    Fig 3: Identifying Shroud
    G05187932Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the door warning switch and key illumination lamp (A) after loosening the screw and disconnecting the 6P connector.

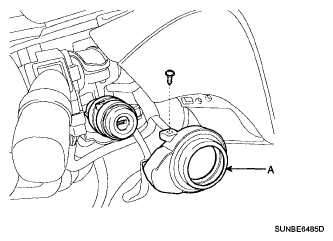

    Fig 4: Identifying Key Illumination Lamp
    G05188097Courtesy of KIA MOTORS AMERICA, INC.
  6. If it is necessary to remove the key lock cylinder (B), Remove the key lock cylinder after pushing lock pin (A) with key ACC.

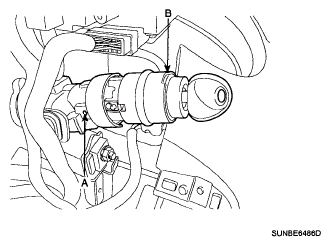

    Fig 5: Identifying Key Lock Cylinder
    G05188112Courtesy of KIA MOTORS AMERICA, INC.
