Overhead Console Lamp: Inspection

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

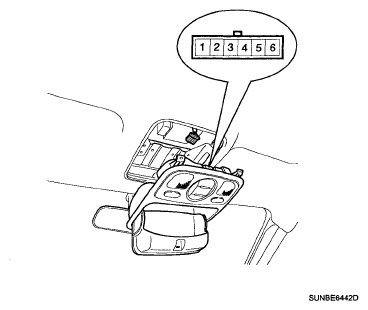

Fig 1: Identifying Overhead Console Lamp Connector Terminal

Courtesy of KIA MOTORS AMERICA, INC.

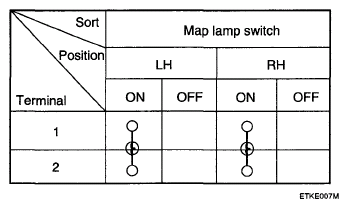

Fig 2: Overhead Console Lamp Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
