Home >> Kia >> 2007 >> Rondo Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> Body Electrical System >> Multi Function Switch >> Component

Multi Function Switch: Component

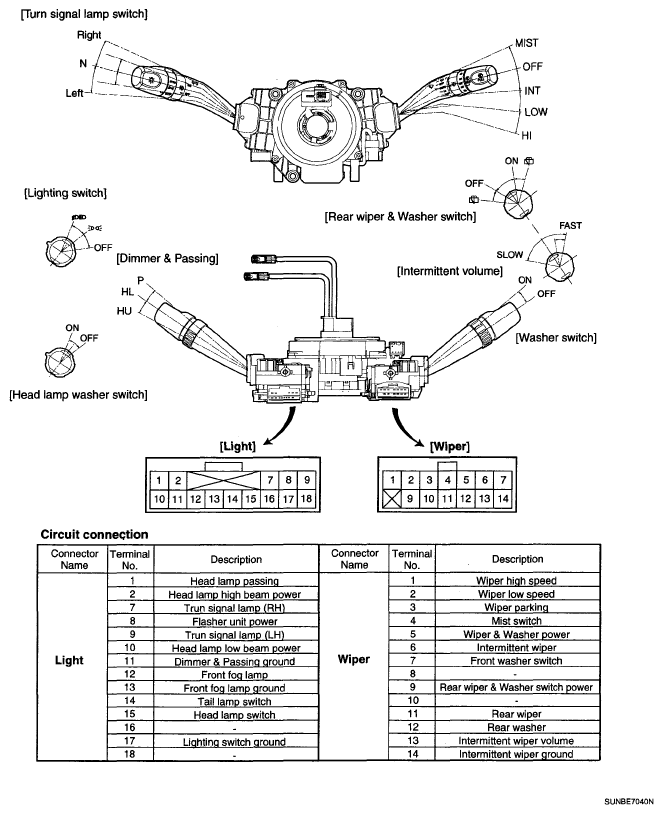

Fig 1: Identifying Multi Function Switch Component

G05187703

Courtesy of KIA MOTORS AMERICA, INC.
