Sunroof Motor: Replacement: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the overhead console then remove the sun roof motor mounting screws (3EA). And then remove the sunroof motor after disconnecting the connector (10 Pin).

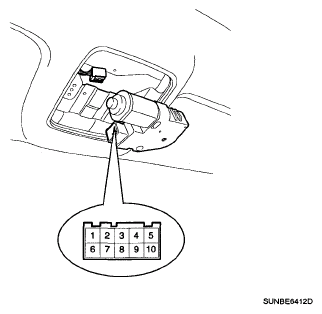

    Fig 1: Identifying Sunroof Motor Connector Terminal
    G05187989Courtesy of KIA MOTORS AMERICA, INC.
  3. Ground the terminals as below table, and check that the sunroof unit operates as below table.

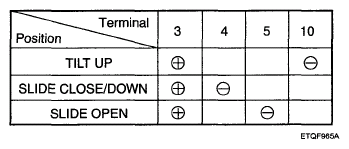

    Fig 2: Sunroof Motor Continuity Chart
    G05187990Courtesy of KIA MOTORS AMERICA, INC.
  4. Make these input tests at the connector if any test indicates a problem, find and correct the cause, then recheck the system. If all the input tests prove OK, the sunroof motor must be faulty; replace it.
    TERMINALS REFERENCE

    Terminal Test condition Test : Desired result
    3 IG2 ON Check for voltage to ground : There should be battery voltage
    1 Under all conditions Check for continuity to ground :
    There should be continuity.
    6 Under all conditions Check for voltage to ground :
    There should be battery voltage.
