Trip Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel (A) after loosening 2 screws.

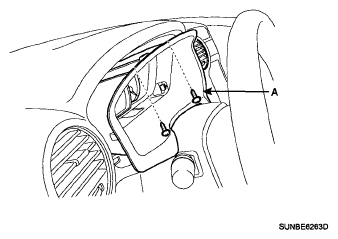

    Fig 1: Identifying Cluster Fascia Panel
    G05187849Courtesy of KIA MOTORS AMERICA, INC.
  3. Pull out the cluster (A) from the housing after removing 4 screws.

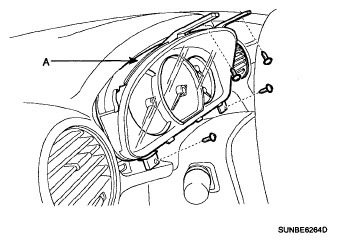

    Fig 2: Identifying Cluster
    G05187850Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the cluster connectors and then remove the cluster.
  5. Remove the cluster fascia panel (A).

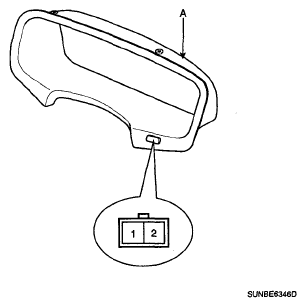

    Fig 3: Identifying Cluster Fascia Panel
    G05187847Courtesy of KIA MOTORS AMERICA, INC.
  6. Check for continuity between the terminals in each switch position according to the table.

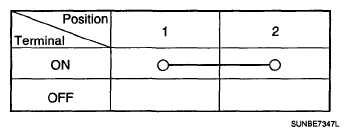

    Fig 4: Continuity Chart
    G05187848Courtesy of KIA MOTORS AMERICA, INC.
