Windshield Wiper/Washer Switch: Inspection: Notes

  1. Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and washer switch.

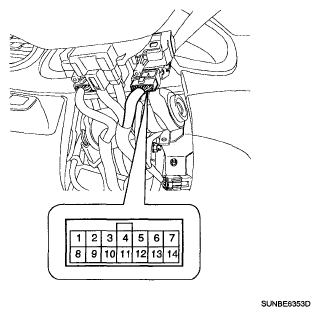

    Fig 1: Identifying Wiper And Washer Switch Connector Terminals
    G05187934Courtesy of KIA MOTORS AMERICA, INC.
