Supplemental Restraint System Control Module Connector End Views

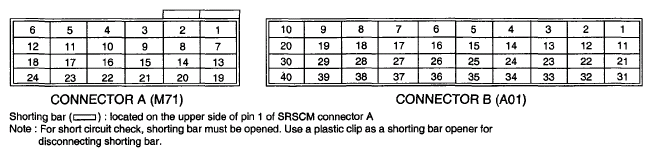

Fig 1: Supplemental Restraint System Control Module Connector End Views

G05187226

Courtesy of KIA MOTORS AMERICA, INC.
