Component Location

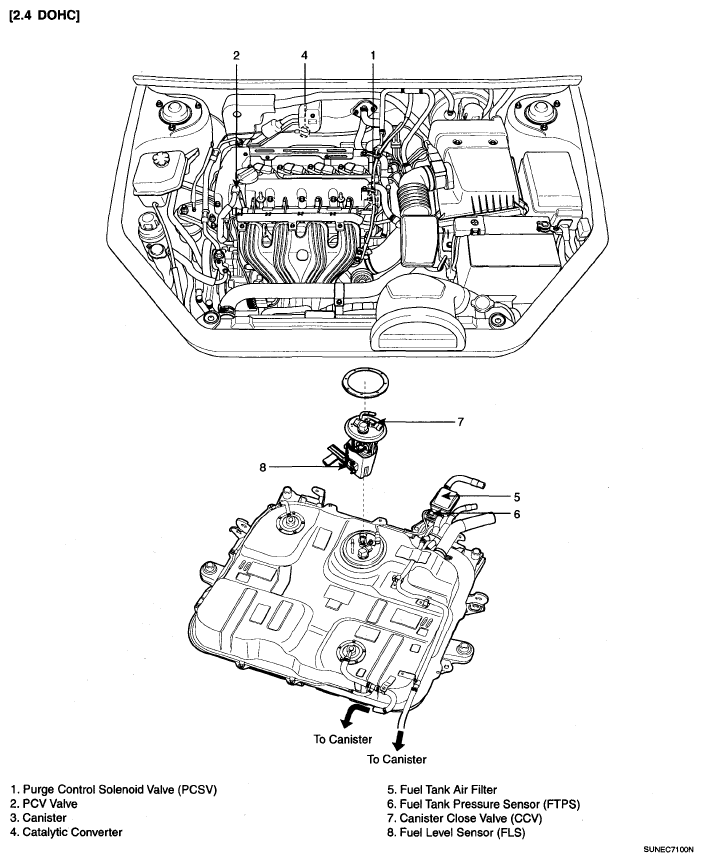

Fig 1: Identifying Emissions Control Component Locations - 2.4 DOHC (1 Of 2)
G05185808Courtesy of KIA MOTORS AMERICA, INC.

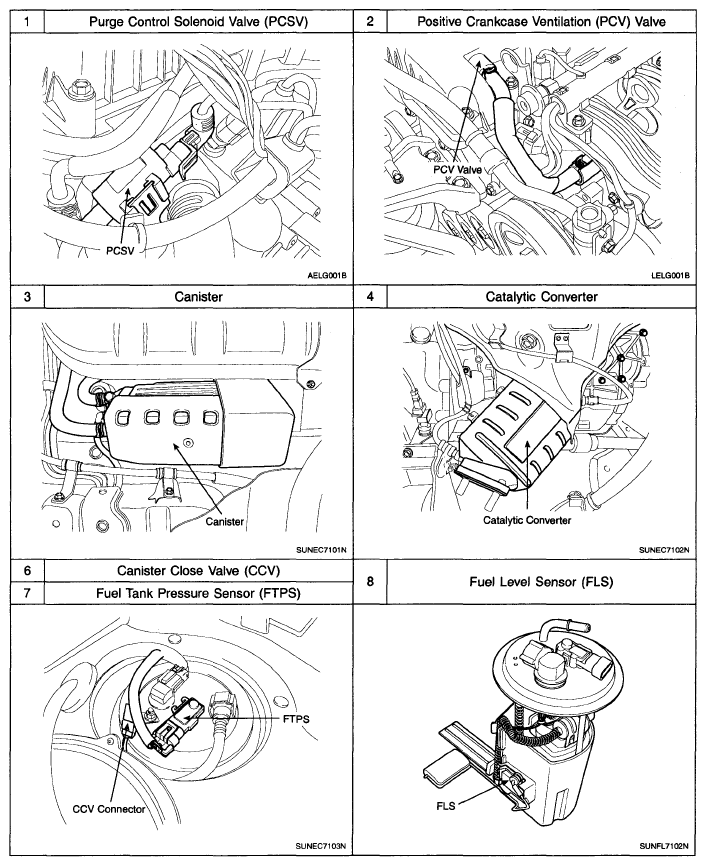

Fig 2: Identifying Emissions Control Component Locations - 2.4 DOHC (2 Of 2)
G05185809Courtesy of KIA MOTORS AMERICA, INC.

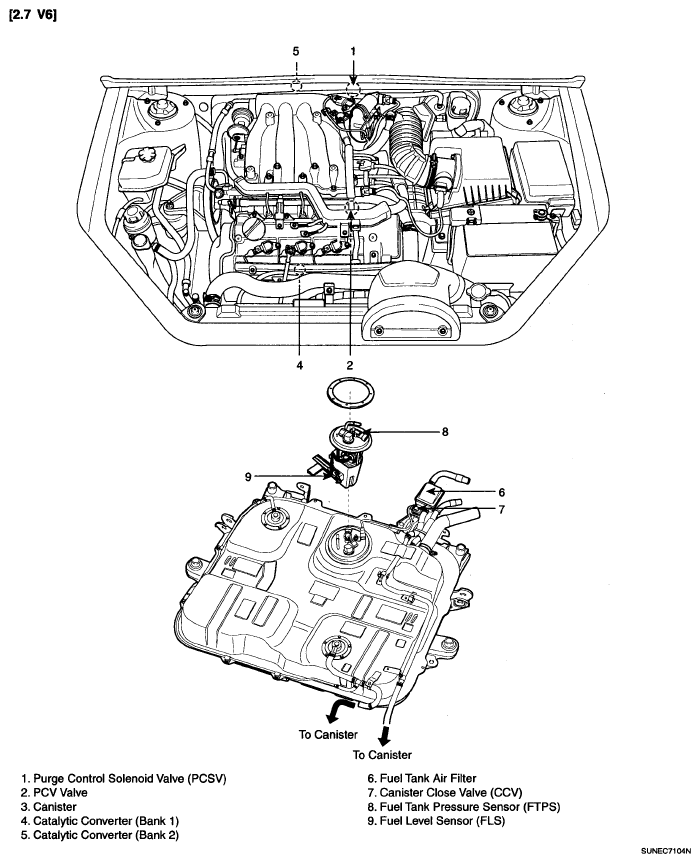

Fig 3: Identifying Emissions Control Component Locations - 2.7 V6 (1 Of 2)
G05185810Courtesy of KIA MOTORS AMERICA, INC.

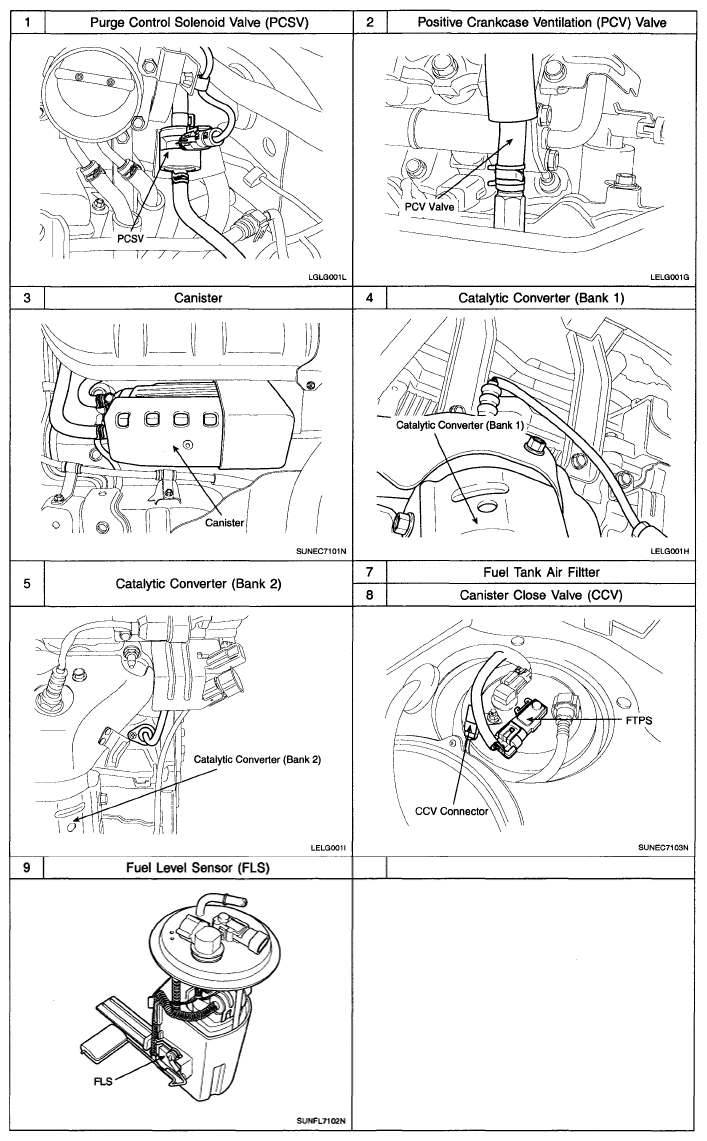

Fig 4: Identifying Emissions Control Component Locations - 2.7 V6 (2 Of 2)
G05185811Courtesy of KIA MOTORS AMERICA, INC.
