Front Strut Assembly: Installation

Install the front strut assembly to the wheel housing panel by tightening the mounting nuts (A).
Tightening torque N.m (kgf.m, lb-ft):

45-60 (4.5-6.0, 33-43)

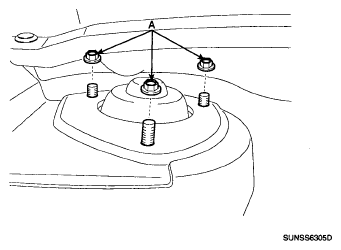

Fig 1: Locating Front Strut Assembly Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Connect the front strut assembly (A) with the knuckle by tightening the bolts and nuts.
Tightening torque N.m (kgf.m, lb-ft):

140-160 (14.0-16.0, 101-116)

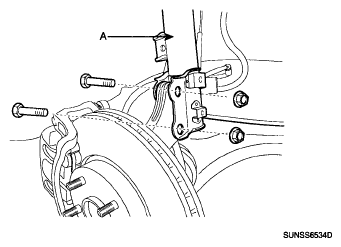

Fig 2: Locating Front Strut Assembly With Bolt And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Install the stabilizer link (A) to the front strut assembly and then tighten the nut.
Tightening torque N.m (kgf.m, lb-ft):

100-120 (10.0-12.0, 72-87)

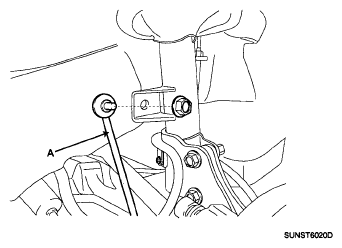

Fig 3: Locating Stabilizer Link With Nut
Courtesy of KIA MOTORS AMERICA, INC.
Install the brake hose and wheel speed sensor bracket to front strut assembly by tightening the mounting bolts (A).

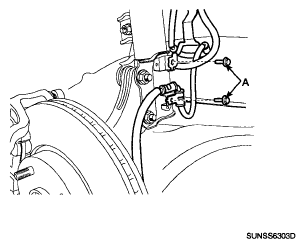

Fig 4: Locating Wheel Speed Sensor Bracket Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the front wheel and tire.
Tightening torque N.m (kgf.m, lb-ft):

90-110 (9.0-11.0, 65-80)

CAUTION: Be careful not to damage the hub bolts when installing the front wheel and tire.
