Output Speed Sensor: Replacement

  1. Remove the battery and air cleaner, (see "TRANSAXLE RANGE SWITCH REPLACEMENT ")
  2. Remove the output shaft speed sensor (A).

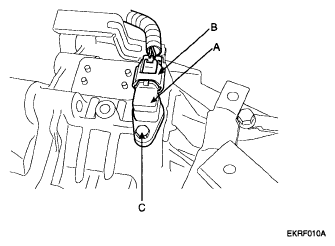

    Fig 1: Identifying Output Shaft Speed Sensor
    G05186511Courtesy of KIA MOTORS AMERICA, INC.
    1. Disconnect the output shaft speed sensor connector (B).
    2. Remove the bolt (C).
    3. Inspect the output shaft speed sensor bore.
  3. Apply a light coat of automatic transaxle fluid to the O-ring seal before installation.
  4. Installation is the reverse of removal.
